Quick Details
-
Voltage:
-
customized
-
Power:
-
Depend
-
Dimension(L*W*H):
-
Depend
-
Warranty:
-
1year
-
Easy operation:
-
spring microseism squeeze
-
Foundry flask max. size:
-
500*400mm
-
Worktable size:
-
560*420mm
-
Jolting load:
-
200mm
-
Compressive stress:
-
4200kg
-
Moulding process:
-
160mm
-
Productivity:
-
40-60 flask/h
-
Free air consumption:
-
0.25m3/flask
-
stripping:
-
single cylinder stripping
-
Certification:
-
ISO9001 CE, CE, ISO:9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
FOUNDRY
-
Brand Name:
-
Dongheng
-
Voltage:
-
customized
-
Power:
-
Depend
-
Dimension(L*W*H):
-
Depend
-
Warranty:
-
1year
-
Easy operation:
-
spring microseism squeeze
-
Foundry flask max. size:
-
500*400mm
-
Worktable size:
-
560*420mm
-
Jolting load:
-
200mm
-
Compressive stress:
-
4200kg
-
Moulding process:
-
160mm
-
Productivity:
-
40-60 flask/h
-
Free air consumption:
-
0.25m3/flask
-
stripping:
-
single cylinder stripping
-
Certification:
-
ISO9001 CE, CE, ISO:9001

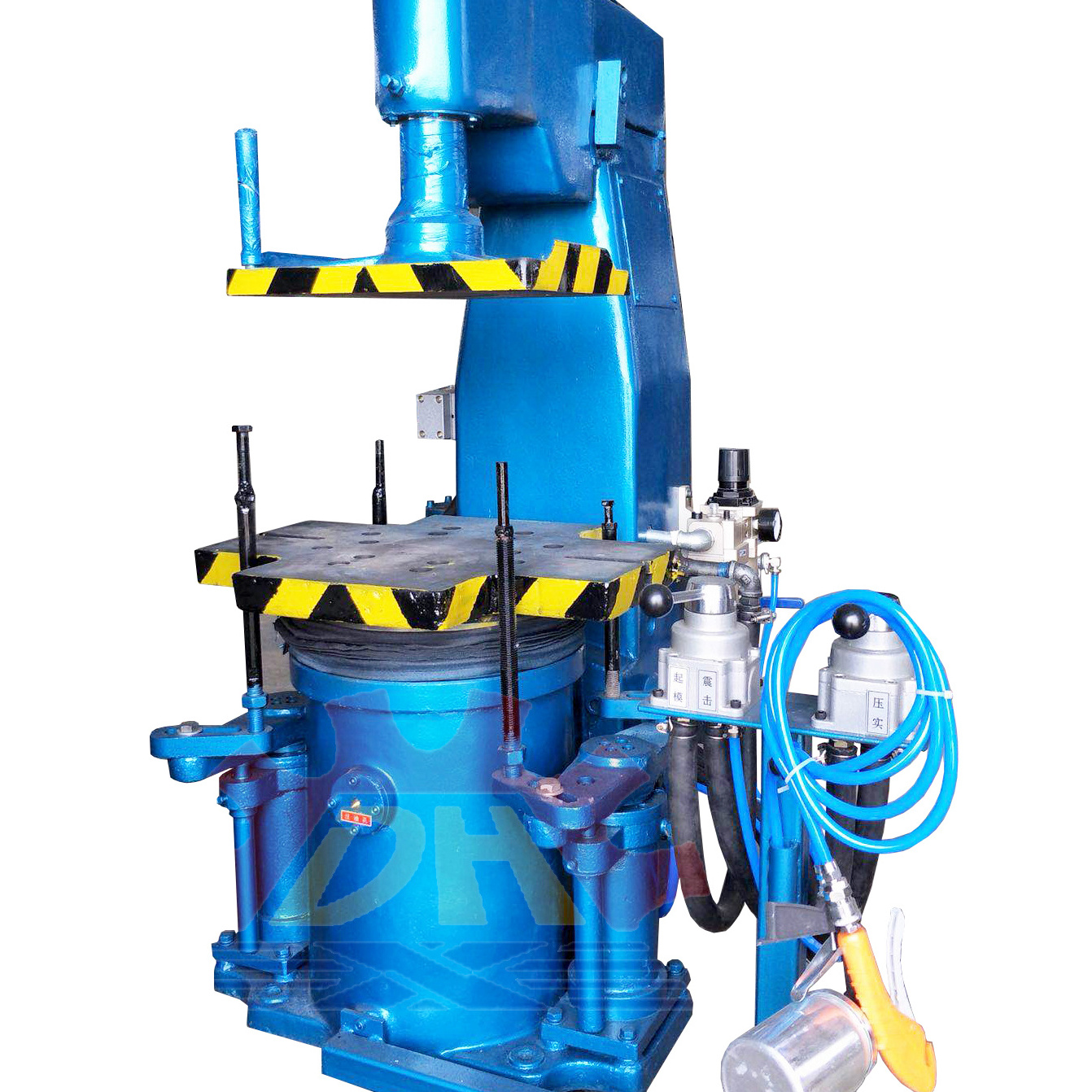

Application : This machine is used for s mall cast parts for mass production, Single side board single box molding, which can make the upper box or the lower box.The machine adopts spring microseism squeeze mechanism , the compacting cylinder diameter is large, the compacting strength is large, the sand mold is compact and uniform; It plays a certain guarantee role in improving the quality of castings. It adopts single cylinder lifting, the lifting is completely synchronous. Pneumatic pipeline is simple, easy to operate, easy to use and maintain.
Technical Parameter :
|
|
Z143W |
Z145W |
Z146W |
Z148WB |
Z148WE |
Z149W |
|
Max size of sand box ( mm ) |
500x400x160 |
550x450x200 |
600x500x200 |
800x600x300 |
900x800x320 |
1050x930x300 |
|
Work table size ( mm ) |
560x420 |
600x550 |
700x500 |
900x730 |
1000x900 |
1200x1030 |
|
Jolting load ( kgf ) |
200 |
300 |
400 |
600 |
800 |
1200 |
|
Compressive strength ( kgf ) |
4200 |
6300 |
7500 |
10000 |
16000 |
16000 |
|
Compressive stroke ( mm ) |
125 |
160 |
180 |
200 |
200 |
200 |
|
Stripping stroke ( mm ) |
160 |
200 |
200 |
250 |
300 |
350 |
|
Productivity ( box/hour ) |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
|
Consumption of air ( m³/box ) |
0.25 |
0.4 |
0.4 |
0.55 |
0.55 |
0.6 |
|
Outline dimension ( mm ) |
810x570x1348 |
1200x800x1680 |
1100x850x1800 |
1760x1180x2280 |
1615x1180x2175 |
1760x1180x2280 |
We can design and produce all kinds of non-standard Jolt Squeeze Molding Machine a ccording to customers' products details and requirement
