Quick Details
-
Blade Material:
-
Wolfram
-
Blade Life:
-
48000
-
Application:
-
Fiber Fusion Splicer
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Fiber Diameter:
-
125um
-
Coating Diameter:
-
250um ~ 900um
-
Blade Material:
-
Wolfram
-
Blade Life:
-
48000
-
Application:
-
Fiber Fusion Splicer
Features:
- Provides approximately 36,000 cleaves
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade
Specifications:

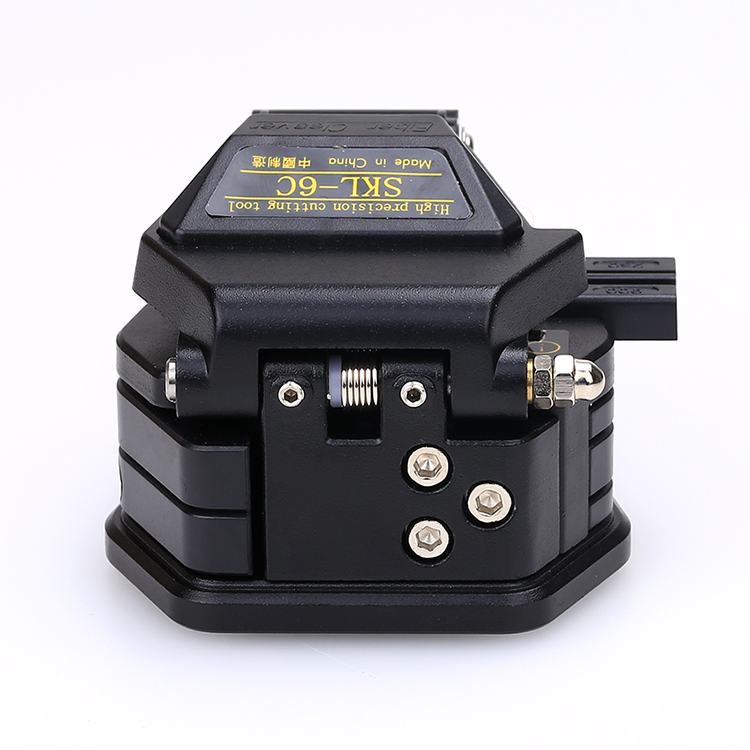

Model: SKL-6C
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating),10 - 16mm (Single Fiber - 0.9mm Coating),Single Core (φ0.25 & 0.9mm) – 12-core Ribbon Fiber – 2.5 Covered Wire
Blade Life Time: 36,000 cleaves (3,000 per blade position)
Cutting Length for Optical Fiber: 18mm
Cleaver Dimensions: 71.3(W) x 67.2(D) x 51(H) mm
Weight: 230g
| Model | SKL-6C |
| Bare fiber diameter | 125um |
| Applicable Fiber | 250μm fiber cable, 900μm fiber cable, 12-fibre ribbon, and fiber jumper cable |
| Cleaving length | 18mm |
| Size | 71.3*67.2*51 (mm) |
| Weight | 230g |
