Quick Details
-
Casting Method:
-
Thermal Gravity Casting
-
Process:
-
Die Casting
-
Application:
-
Machinery Parts/Auto Parts/Hardware etc.
-
Material:
-
Aluminium/Alloy Steel/zinc/brass Alloy etc.
-
Surface treatment:
-
Polishing/Sand Blast/Spray-Paint etc.
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OBT
-
Model Number:
-
OBT
-
Casting Method:
-
Thermal Gravity Casting
-
Process:
-
Die Casting
-
Application:
-
Machinery Parts/Auto Parts/Hardware etc.
-
Material:
-
Aluminium/Alloy Steel/zinc/brass Alloy etc.
-
Surface treatment:
-
Polishing/Sand Blast/Spray-Paint etc.
Product Description
|
Material
|
Aluminum alloy ADC12, ADC10, A360, A380, A356,A413,B390,EN47100,EN44100
|
|
|
Magnesium alloy AZ91D, AM60B
|
|
|
Zinc alloy ZA3#,ZA5#,ZA8#,Zmark3,Zmark5,ZDC3
|
|
|
Brass:HPb59-1,HPb62-1
|
|
Processing Craft
|
Drawings→ mould making → die casting →rough machining → CNC machining →surface treatment →product checking→ packing →delivery
|
|
Tolerance
|
± 0.02mm
|
|
Surface Treatment
|
Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating,
Sandblasting, Passivation, Spray painting, Etc. |
|
Quality Assurance
|
ISO9001:2015 Certified, SGS Certification
|
|
Inspection
|
1.Foundry in-house: 100% inspection on critical dimension; 100% on appea rance.
|
|
|
2.Third Party inspection available upon requirement.
|
|
Mainly Testing Facility
|
Three-dimensional measuring instrument (CMM), Salt spray test box, Dynamic balance detector, Pneumatic detection
|
|
Quality Guarantee
|
Two years
|
|
Features & Advantage
|
1.High machining accuracy, the flatness within 0.1mm.
|
|
|
2.High finish appearance, smooth surface roughness is Ra1.6 after machining.
|
|
|
3.The machining precision is high and the assembly structure is seamless.
|
|
|
4.Smooth appearance, corrosion resistance.
|
|
|
5.Pass Salt Spray Test with 144 Hours.
|
|
Standard
|
1.Aluminum alloy : ISO3522-84, ASTMB85-96, ASTMB597-98
|
|
|
2.Magnesium alloy : ISO/DIS16220-1999, ASTMB93/B93M-98,JISH2222-1991
|
|
|
3.Zinc alloy: ISO301-1981, ASTMB86-98, ASTMB240-98, ASTMB327-98
|
|
|
Sand Casting
|
Investment Casting (Water Glass )
|
Investment Casting (Silica Sol)
|
Shell Moulding Casting
|
Gravity Die Casting
|
High-Pressure Die Casting
|
Lost Foam Casting
|
|
Metals
|
Ferrous and Non-Ferrous
|
Most Ferrous
|
Most Ferrous
|
Most Ferrous
|
Only Non-Ferrous
|
Only Non-Ferrous
|
Most Ferrous
|
|
Size of Components
|
All Sizes
|
Small and medium
|
Small
|
Medium
|
Medium and big
|
Small and medium
|
Medium
|
|
Weight of Components (Kg)
|
1(kg) - Many tonnes
|
0,25 - 50 (kg)
|
0,1 - 30 (kg)
|
1 - 50 (kg)
|
1 - 100 (kg)
|
0,2 - 20 (kg)
|
1 - 200 (kg)
|
|
Flexibility of design for conversion from weldments to castings
|
High
|
Very Excellent (WELD2CAST most popular method)
|
Excellent
|
High
|
Moderate
|
Relative high
|
High
|
|
Needs of secondary machining
|
High
|
Moderate
|
Low
|
Low
|
Moderate
|
Very Low
|
Low
|
|
Product manufacture cost
|
Low
|
Low
|
Medium
|
Medium
|
Low
|
Medium
|
Medium/High
|
|
Dimension casting tolerance acc. with ISO 8062
|
CT10 - CT12
|
CT7 - CT9
|
CT4 - CT6
|
CT7 - CT8
|
CT7 - CT8
|
CT4 - CT5
|
CT7 - CT8
|
|
Minimum of cast wall thickness
|
6 - 8 mm
|
4 - 5 mm
|
2 mm
|
5 mm
|
4 mm
|
2,5 mm
|
3 mm
|
|
Draft angle need (deg ° )
|
± 2,0 °
|
± 1,0 °
|
± 0,5 °
|
± 1,0 °
|
± 1,0 °
|
± 0,5 °
|
± 1,5 °
|
|
Surface finish (Ra) µ
|
Ra 50 µ
|
Ra 25 µ
|
Ra 3,2 µ
|
Ra 25 µ
|
Ra 12,5 µ
|
Ra 3,2 µ
|
Ra 25 µ
|
|
Casting Alloys
|
Iron，Ductile Iron，ADI - (Austempered ductile iron)，Low-Alloy Steel，High-Alloy Steel，Stainless Steel，Aluminium，Copper，Bronze
|
Low-Alloy Steel，High-Alloy Steel，Stainless Steel，Hastelloy
|
Low-Alloy Steel，High-Alloy Steel，Stainless Steel，Duplex Stainless Steel，Titatium
|
Ductile Iron，ADI - (Austempered ductile iron)，Low-Alloy Steel，High-Alloy Steel，Stainless Steel，Duplex Stainless Steel
|
Aluminium，Copper
|
Aluminium，Zinc，Magnesium
|
Iron，Ductile Iron，ADI - (Austempered ductile iron)，Low-Alloy Steel，High-Alloy Steel，Copper
|

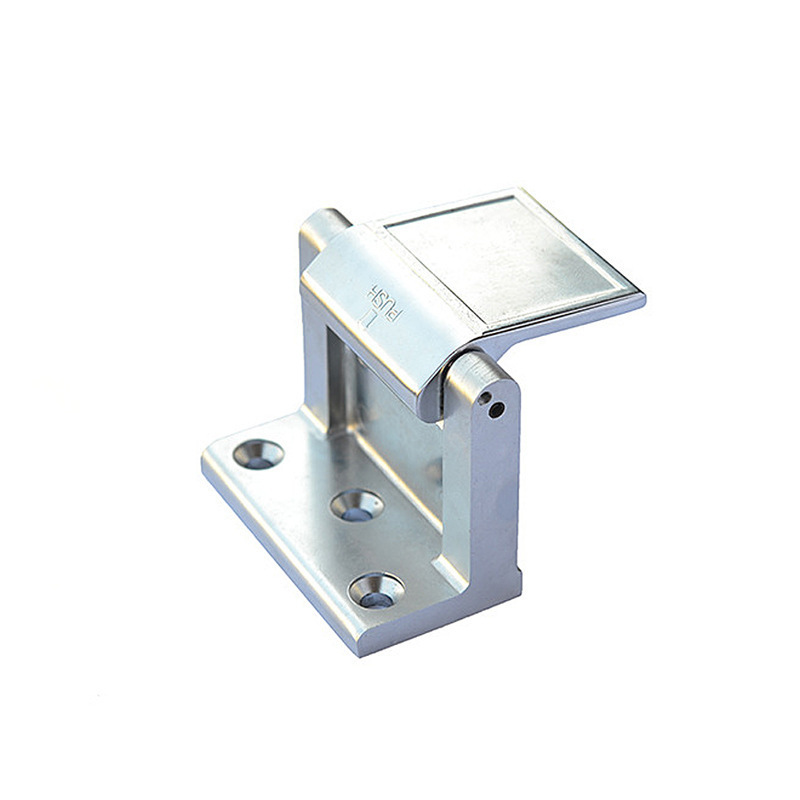

Custom Die Casting Products
