Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LONGWAY MOTOR
-
Model Number:
-
76ZYT-WOG
-
Torque:
-
≥6N.m
-
Motor diameter::
-
76mm
-
Motor length::
-
77mm or 85mm or 97mm
-
Gear material::
-
copper or plastic gear
-
Shaft::
-
Left or right
-
Shaft diameter::
-
6mm,8mm,10mm, 12mm
-
Color::
-
BLACK
-
Keywords:
-
12v 24v small dc worm gear motor
-
Application:
-
Home Applicance
-
Rated Voltage:
-
12VDC-24VDC
-
Size:
-
76mm
Quick Details
-
Speed(RPM):
-
≤260RPM
-
Continuous Current(A):
-
≤1A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LONGWAY MOTOR
-
Model Number:
-
76ZYT-WOG
-
Torque:
-
≥6N.m
-
Motor diameter::
-
76mm
-
Motor length::
-
77mm or 85mm or 97mm
-
Gear material::
-
copper or plastic gear
-
Shaft::
-
Left or right
-
Shaft diameter::
-
6mm,8mm,10mm, 12mm
-
Color::
-
BLACK
-
Keywords:
-
12v 24v small dc worm gear motor
-
Application:
-
Home Applicance
-
Rated Voltage:
-
12VDC-24VDC
-
Size:
-
76mm

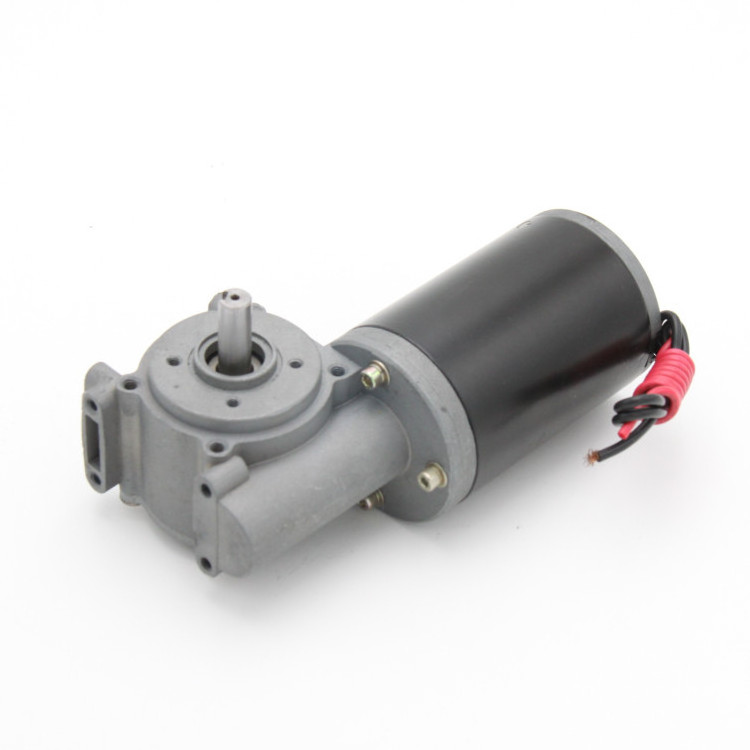

24V 12V DC Motor 120w Worm Wheel Geared Motor DC Gear Motor For Car Simulator Garage Door Opener Wheelchair
Motor diameter:49MM, 56MM,59MM, 63MM, 76MM, 88MM, 116MM,
Motor Voltage: DC12V, 24V,42V,48V,90V,110V ,300V
Motor Rated Power:15W, 25W,30W,45W,65W, 95W,120W,50W,180W
Motor no-load Speed:15RPM, 30RPM,60RPM,80RM,120RPM,150RPM,180RPM,200RPM,220RPM
|
MODEL |
VOTAGE (V) |
POWER (W) |
NO-LOAD SPEED(RPM) |
NO-LOAD CURRENT(A) |
LOAD SPEED(RPM) |
LOAD CURRENT(A) |
LOAD TORQUE(N.M) |
RATIO |
MOTOR LENGTH(MM) |
|
76ZYT |
24 |
60 |
30±3 |
≤1.2 |
26±3 |
≤3.5 |
≥ 4.5 |
1:75 |
77 |
|
76ZYT |
42 |
60 |
30±2 |
≤1.2 |
26±3 |
≤3.5 |
≥ 5.0 |
1:75 |
77 |
|
76ZYT |
24 |
60 |
50±2 |
≤1.2 |
45±3 |
≤3.5 |
≥ 4.5 |
1:60 |
77 |
|
76ZYT |
42 |
60 |
65±3 |
≤1.2 |
60±3 |
≤3.5 |
≥ 5.0 |
1:60 |
77 |
|
76ZYT |
48 |
60 |
75±3 |
≤1.2 |
70±3 |
≤3.5 |
≥ 5.2 |
1:60 |
77 |
|
76ZYT |
12 |
80 |
50±3 |
≤1.4 |
42±3 |
≤4.5 |
≥ 5.0 |
1:60 |
85 |
|
76ZYT |
24 |
80 |
65±3 |
≤1.4 |
62±3 |
≤4.5 |
≥ 5.2 |
1:60 |
85 |
|
76ZYT |
12 |
45 |
150±5 |
≤1.0 |
130±5 |
≤3.5 |
≥ 3.3 |
1:20 |
77 |
|
76ZYT |
24 |
45 |
180±5 |
≤1.2 |
150±5 |
≤4.5 |
≥ 4.5 |
1:20 |
77 |
|
76ZYT |
48 |
45 |
220±5 |
≤1.5 |
180±5 |
≤6.5 |
≥ 6.0 |
1:20 |
77 |
|
76ZYT |
24 |
65 |
200±5 |
≤1.2 |
160±5 |
≤4.5 |
≥ 4.5 |
1:20 |
85 |
|
76ZYT |
24 |
65 |
220±5 |
≤1.5 |
180±5 |
≤6.5 |
≥ 6.0 |
1:20 |
85 |
|
76ZYT |
24 |
95 |
180±5 |
≤1.2 |
150±5 |
≤4.5 |
≥ 4.5 |
1:20 |
97 |
|
76ZYT |
24 |
95 |
220±5 |
≤1.5 |
180±5 |
≤6.5 |
≥ 6.0 |
1:20 |
97 |
