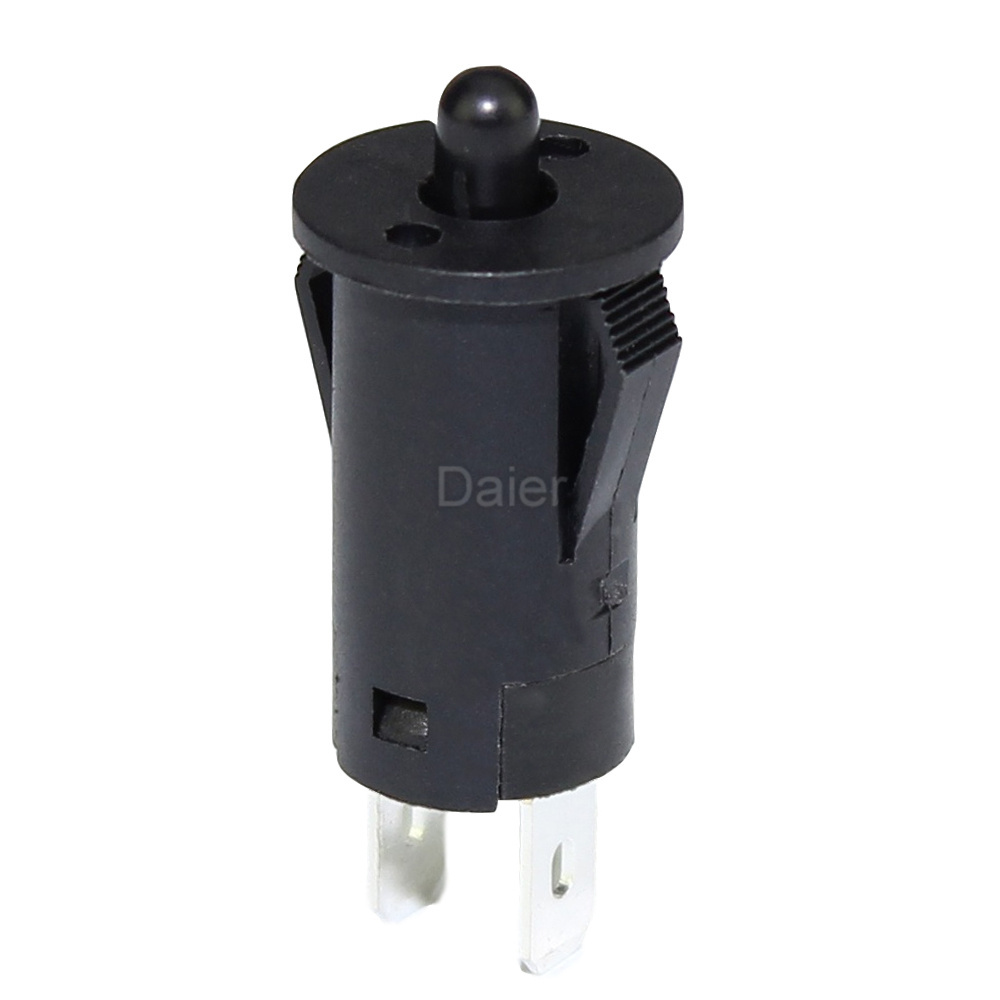

IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp
IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp
IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp
IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp
IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp
IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp

IP40 1.5A 12mm Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp

FOB Reference Price: Get Latest Price
≥100 Pieces
US $0.15
≥200 Pieces
US $0.13
≥500 Pieces
US $0.12
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
PBS-25C-K-L5
Product type:
12mm Momentary Function 2 Pin Black Housing Push Button Switch
Type:
Push Button Switch
Product name:
PBS-25C-K-L5
Rating:
1.5A 250V
Function:
ON-(OFF)
Terminal:
2 Pin
Button Color:
Black
Terminal type:
Solder Terminal
Certificate:
CE, Rohs
OEM&ODM:
YES
Certification:
CE

Quick Details

Protection Level:
IP40
Max. Current:
1.5A
Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
PBS-25C-K-L5
Product type:
12mm Momentary Function 2 Pin Black Housing Push Button Switch
Type:
Push Button Switch
Product name:
PBS-25C-K-L5
Rating:
1.5A 250V
Function:
ON-(OFF)
Terminal:
2 Pin
Button Color:
Black
Terminal type:
Solder Terminal
Certificate:
CE, Rohs
OEM&ODM:
YES
Certification:
CE
Product Description
Model
PBS-25C-K-L5
Type
IP40 1.5A Refrigerator Door Switch ON-(OFF) Momentary Function Plastic Push Button Switch 12mm Without Lamp
Rating
1.5A  250VAC
Function
ON-(OFF)
Light
Without Light
Terminal
2 Pin, Solder Terminal
Degree of Protection
IP40
Button Color Avaliable
Black
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩ min. 500V DC
Dielectric Strength
AC 1500V  1 minute
Electrical Life
10,000 cycles min
Product Show

PBS-25C-K-L5


12mm Mounting Size Momentary Function 2 Pin Black Housing Push Button Switch

Specifications:
1. Rating: 1.5A 250VDC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Stren gth:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Momentary Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers

WORK SHOP
EXHIBITION
OUR TEAM
PRODUCT CERTIFIED
FAQ
1.Who we are?
Yueqing Daier was established in 2003, professional in manufacturing push switch, indicator light, enjoy a good
reputation in China and overseas.
Growing from Strength to strength to become the excellent factory in same industry.

2.Why choose us?
-OEM/ODM Accept.
-Specialized in this line for 5 years.
-small order or sample order can be accepted.
-Factory supply directly, cheap price quality assurance.
-Yueqing Daier for your chose.
-Professional after -sale service.

3.Our Payment & Logistics?
Payment terms:TT/West Union/L/C PayPal.
Shipping terms: DHL, UPS, FEDEX, TNT, EMS.
Sample order delivered within 24 hours , order lead time within 3 days.
Sample available: Yes.
FOB Port: Guangzhou.Ningbo

4.What can you get from us?
1.Excellent products (unique design, strict quality control ).
2.Great service(OEM,ODM, after-sales services, fast delivery).
3.Professional business consultation.

5.payment method ?
Paypal, T/T, Western Union, MoneyGram , or other method.Ship worldwide by sea,by air or by express like DHL, UPS, and so on.
