Quick Details
-
Brand Name:
-
AUTO
-
Model Number:
-
LUGB
-
Norminal Pressure:
-
DIN PN 1.6-4.0MPa
-
Accuracy:
-
+/-1.0% (liquid), +/-1.5% (gas)
-
MediumTemperature:
-
-40°C~+350°C
-
Measuring medium:
-
gas,Superheated Steam, Saturated Steam, Compressed
-
Operated Power:
-
24VDC, Built in battery
-
Signal output:
-
4-20mA, RS-485, HART,or customization
-
Certificate:
-
ISO9001:2000,CE,Explosion proof
-
Skype:
-
summer.cao39
Quick Details
-
Type:
-
vortex flow meter
-
Warranty:
-
12month
-
Place of Origin:
-
China
-
Brand Name:
-
AUTO
-
Model Number:
-
LUGB
-
Norminal Pressure:
-
DIN PN 1.6-4.0MPa
-
Accuracy:
-
+/-1.0% (liquid), +/-1.5% (gas)
-
MediumTemperature:
-
-40°C~+350°C
-
Measuring medium:
-
gas,Superheated Steam, Saturated Steam, Compressed
-
Operated Power:
-
24VDC, Built in battery
-
Signal output:
-
4-20mA, RS-485, HART,or customization
-
Certificate:
-
ISO9001:2000,CE,Explosion proof
-
Skype:
-
summer.cao39

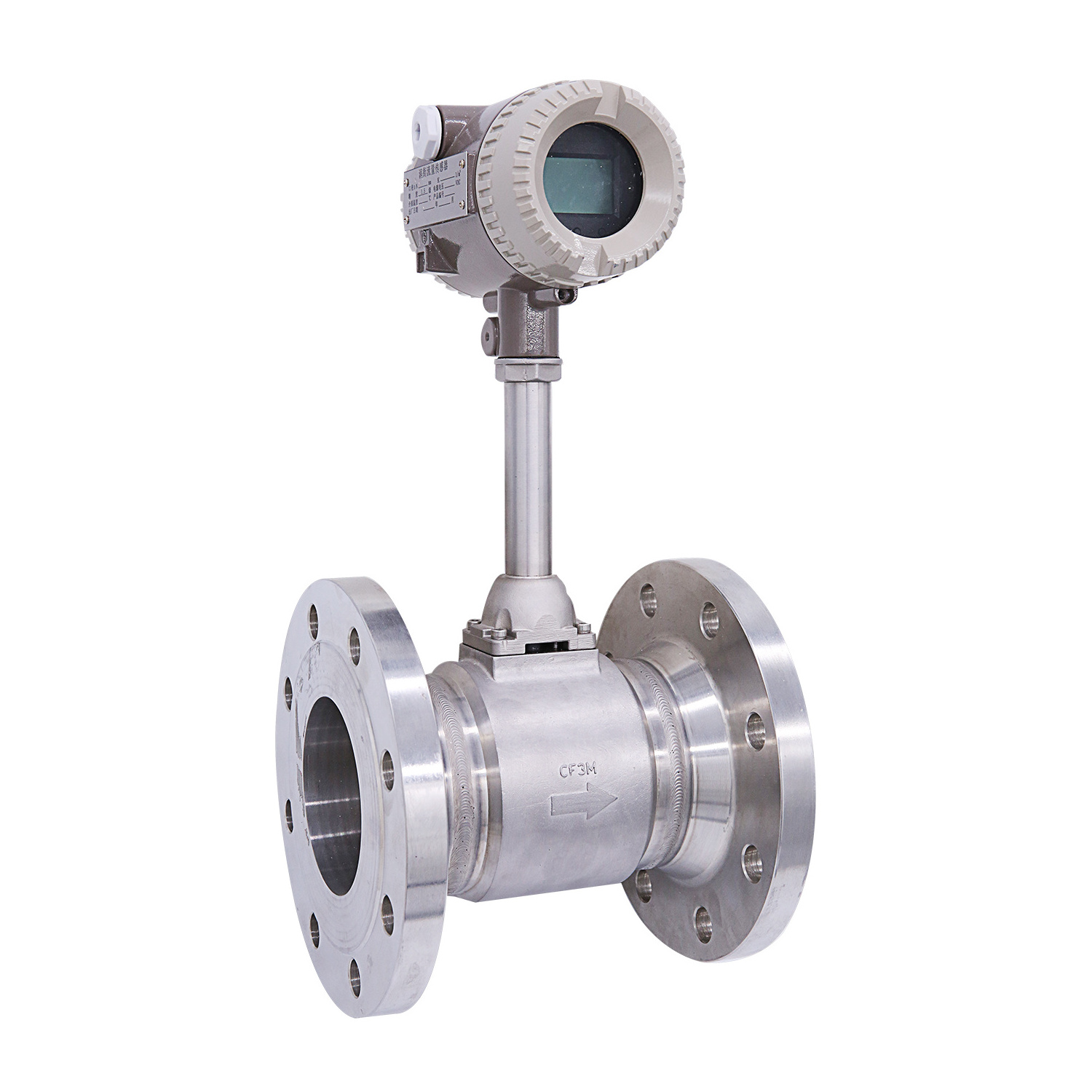

auto flow transmitter Insert digital vortex flow meter air steam flow meter price
What is Vortex Flow Meter?
Vortex Flow Meters are suitable for a variety of applications in liquid, gas, air, and steam flows. These volumetric flow measuring devices are constructed with stainless steel bodies which provide accurate and reliable measurement for years in industrial service.
Where to Use Vortex Flow Meters
- Measurement of steam - saturated steam in power plants and chemical facilities.
- Gas flow measurement – natural gas, ammonia, nitrogen, carbon dioxide, methane, methane chloride.
- Demineralized and pure water in biotech, semiconductor, and pharmaceutical.
- Air flow measurement – dust control and compressed air consumption.
- Oil and crude methanol up to 100 centipoises.
- HVAC
- Food processing
Technical Specifications of Vortex Flow Meter:
|
Size |
DN15 ~ DN300 |
|
Medium |
Liquid / Steam / Gas ,Air,nitrogen, coal gas, natural gas, chemical gas, etc. |
|
Accuracy |
Pipe Type: ±1.5% (gas, steam), ±1.0% (liquid) |
|
Inserted Type: ±2.5% (liquid), ±3.0% (gas) |
|
|
Repeatability |
Pipe Type: 0.5% (gas, steam), 0.33% (liquid) |
|
Inserted Type: 0.83% (liquid), 1.00% (gas) |
|
|
Rated Pressure |
GB 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa; DIN PN16, PN25, PN40; JIS 10K, 20K, 40K; ANSI Class150, Class300, Class600 |
|
Signal Output |
Pulse Output, Two Wire 4~20mADC, RS-485, Hart, Modbus |
|
Power Supply |
24VDC / 3.6V Lithium Battery / Double Power Supply (24VDC, 3.6V Lithium Battery) |
|
Installation Type |
Flanged Type / Wafer Type / Fixed Inserted / Adjustable Inserted / Adjustable Inserted (with ball valve) |
|
Protection Grade |
IP65 |
|
Explosion Proof |
Exd II BT3~6 / Exia II CT3~6 |
Measure flow rate:
|
Meter diameter( mm ) |
Pipeline |
Plug-in |
||
|
Liquid measuring range( m³/h ) |
Gas Measurement Range( m³/h ) |
Liquid measuring range( m³/h ) |
Gas Measurement Range( m³/h ) |
|
|
DN20 |
1.2-12 |
6-50 |
|
|
|
DN25 |
1.6-16 |
8-60 |
|
|
|
DN32 |
2-20 |
12-120 |
|
|
|
DN40 |
2-30 |
20-200 |
|
|
|
DN50 |
3-50 |
30-300 |
|
|
|
DN65 |
18-180 |
50-500 |
|
|
|
DN80 |
15-150 |
70-700 |
|
|
|
DN100 |
20-200 |
100-1000 |
|
|
|
DN125 |
36-360 |
150-1500 |
|
|
|
DN150 |
50-500 |
200-2000 |
|
|
|
DN200 |
100-1000 |
400-4000 |
70-700 |
600-6000 |
|
DN250 |
150-1500 |
600-6000 |
110-1100 |
1060-10600 |
|
DN300 |
200-2000 |
1000-10000 |
180-1800 |
1500-15000 |
|
DN350 |
300-3000 |
1500-15000 |
210-2100 |
2000-20000 |
|
DN400 |
350-3500 |
1800-18000 |
180-2700 |
2700-27000 |
|
DN450 |
|
|
230-2300 |
3300-33000 |
|
DN500 |
|
|
280-4200 |
4240-42400 |
|
DN600 |
|
|
410-6100 |
6100-61000 |
|
DN700 |
|
|
580-7300 |
7800-78000 |
|
DN800 |
|
|
720-10800 |
10850-108500 |
|
DN900 |
|
|
970-12000 |
13000-130000 |
|
DN1000 |
|
|
1130-16900 |
17000-170000 |
|
DN1100 |
|
|
1450-18000 |
19000-190000 |
|
DN1200 |
|
|
1630-24400 |
24400-244000 |
|
DN1300 |
|
|
2020-25300 |
27000-270000 |
|
DN1400 |
|
|
2350-29500 |
31000-310000 |
|
DN1500 |
|
|
2550-38000 |
38200-382000 |
Vortex flow meter size:
Calibration method:
vortex flow meter Model selection:
