Products

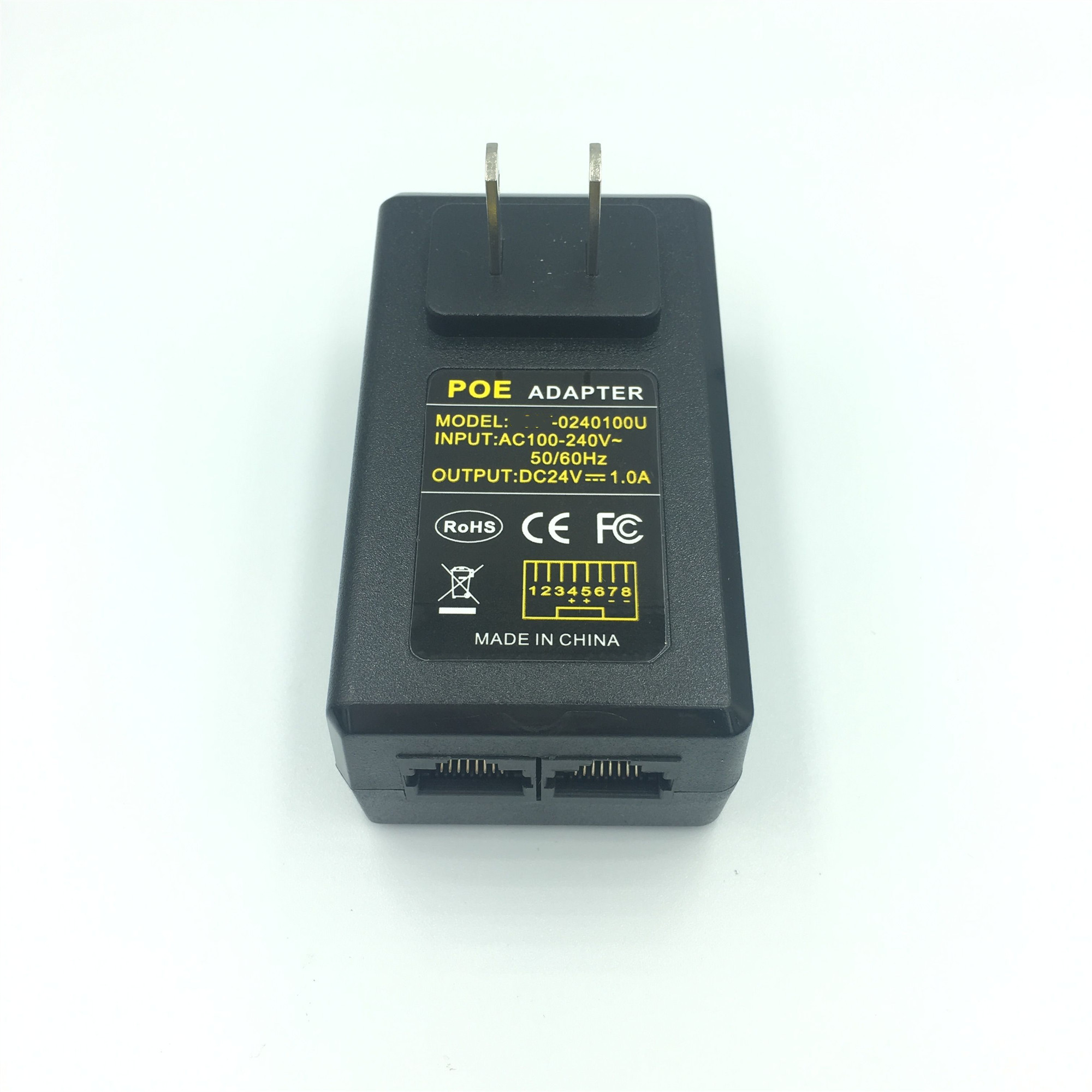

Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch
Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch

Wall Plug Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch

FOB Reference Price: Get Latest Price
≥1 Pieces
US $2.5
≥500 Pieces
US $2.4
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
0240100U
Product Name:
24V 1A POE Injector
Input:
100-240V 50/60Hz
Output:
24V 1A 24W
DC connector:
2 RJ45 Ethernet ports
Warranty:
2Years
Certificate:
CE
Application:
Poe IP phone, POE IP Camera, Poe Wifi AP
Protections:
Short Circuit Overtemp Overload Overvolt
Data rate:
10\100Mbps
Color:
Balck

Quick Details

Output Type:
DC
Place of Origin:
Guangdong, China
Brand Name:
Hagors
Model Number:
0240100U
Product Name:
24V 1A POE Injector
Input:
100-240V 50/60Hz
Output:
24V 1A 24W
DC connector:
2 RJ45 Ethernet ports
Warranty:
2Years
Certificate:
CE
Application:
Poe IP phone, POE IP Camera, Poe Wifi AP
Protections:
Short Circuit Overtemp Overload Overvolt
Data rate:
10\100Mbps
Color:
Balck

Wall Plug  Optional 24V 1A POE passive adapter injector Ethernet Gigabit 802.3af for IP cameraP OE switch

Kunyu Model
0240100U
Output Voltage(Max)
DC 24V
Output Current(Max)
1000mA
Input Voltage
AC100-240V
Input Frequency
47Hz~63Hz
Efficiency
85%(MIN)at Rated Voltage
Ripple and Noise
<120Mv at full road with 20MHz bandwidth
Turn On Delay Time
<3S (AC:110V and full load)
Data connector
RJ45 +24V pins4&5, Power Return pins7&8
Futures
Compliant with Isolation and Channel
Characteristics of IEEE802.3af
Data and Power carried over one Ethernet Cable
Protection
Over Loading Protection / Over Voltage Protection
Temperature Protection / Short Circuit Protection
Operation temperature
0℃~+50℃
Storage temperature
-20℃~+75℃
Working efficiency
≥ 80%
Warranty
12 Months
Data connector
RJ45 +24V pins4&5, Power Return pins7&8
Certificate
CE, RoHS, FCC
Application
IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc...
AC plug DC connector
