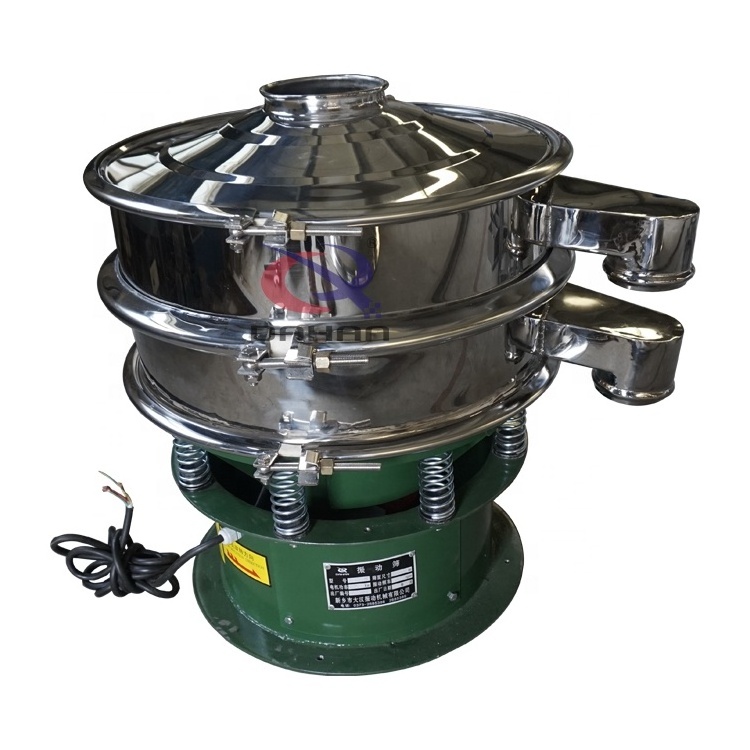

Granule Powder Mucus Material Sifting Filter Circular Rotary Vibrating Screen

Granule Powder Mucus Material Sifting Filter Circular Rotary Vibrating Screen

FOB Reference Price: Get Latest Price

≥1 Sets

US $1360

≥5 Sets

US $1200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: DAHAN

Voltage:: 220V/380V or as requried

Dimension(L*W*H):: 700x700x650mm

Weight:: 120 KG

Product name:: vibrating screen

Function:: Screening\separation\sorting\sieving

Keyword:: vibration sieve shaker machine

Motor:: Vertical Vibrating Motor

Color:: Silver

Shape:: Round Shape

Capacity:: 400-500kg/h

Diameter:: 550mm

Material:: Carbon Steel/Stainless Steel 304/316L

Layer(s):: 1-5Layers

Quick Details

Type:: Circular

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: DAHAN

Voltage:: 220V/380V or as requried

Dimension(L*W*H):: 700x700x650mm

Weight:: 120 KG

Product name:: vibrating screen

Function:: Screening\separation\sorting\sieving

Keyword:: vibration sieve shaker machine

Motor:: Vertical Vibrating Motor

Color:: Silver

Shape:: Round Shape

Capacity:: 400-500kg/h

Diameter:: 550mm

Material:: Carbon Steel/Stainless Steel 304/316L

Layer(s):: 1-5Layers

Product Description

Product introduce

DH series three-D vibrating screen is a high precision powder screening equipment,it has low noise,high efficiency,quickly change screen mesh only 3-5 minutes,fully enclosed structure,and suitable for screening powder,granule and other materials filtering.

Detail show

Product Structure

Characteristics of the Vibrating Screen

1) Excellent screening ability and higher screening accuracy, achieve high precision screening, screening accuracy can be increased by 1-70%, production can be increased by 0.5-10 times.

2) Rubber ball is not needed to clear the net, to prevent re-pollution caused by rubber wear. 3) Truly solve the problem of screening materials with strong adsorption, easy agglomeration, high static electricity and light specific gravity.

4) Ensure that the characteristics of screened materials remain unchanged.

5)Digital signal input to realize automatic frequency tracking.

Working Principle

DH series three-D vibrating screen use upright motor as the source of vibration,equipped eccentricity hammer on the both sides of mootor,change circumstance to level,upright and incline movement,then pass these three movement to the surface of the screen.Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

Product Parameters

Model	Power(Kw)	Sieve diameter(mm)	Granularity(mm)	Voltage(V)	RPM(r/min)	Capacity(kg/h)
DH-400	0.18	350	<10	380	1440	100
DH-600	0.25	550	<10			1440	500
DH-800	0.55	750	<10			1440	800
DH-1000	0.75	920	<10			1440	1400
DH-1200	1.1	1120	<10			1440	2100
DH-1500	1.5	1420	<10			1440	2600
DH-1800	2.2	1720	<10			1440	3300

Schematic outline

Application Industry

Chemical industry : resin,coating,industry,cosmetic,oil,ect. Food industry : sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soybean milk, egg powder, rice, soy, fish meal, pineapple juice, etc. Metals, metallurgical mining : aluminum powder, lead powder, copper powder, ore,alloy powder, electrode powder, abrasive powder, refractory materials,kaolin, lime, aluminum oxide, quartz sand, ect. Other industries : abandoned oil, abandoned water, wasted-water dyeing, paper,chemicals, such as activated carbon.
