Quick Details
-
Elongation (≥ %):
-
35%
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
C1010,C1020,C1100,T1,T2,etc
-
Application:
-
Electronic,Industry,Decoration
-
Width:
-
2.0mm-1200mm
-
Grade:
-
Red Pure Copper
-
Product Name:
-

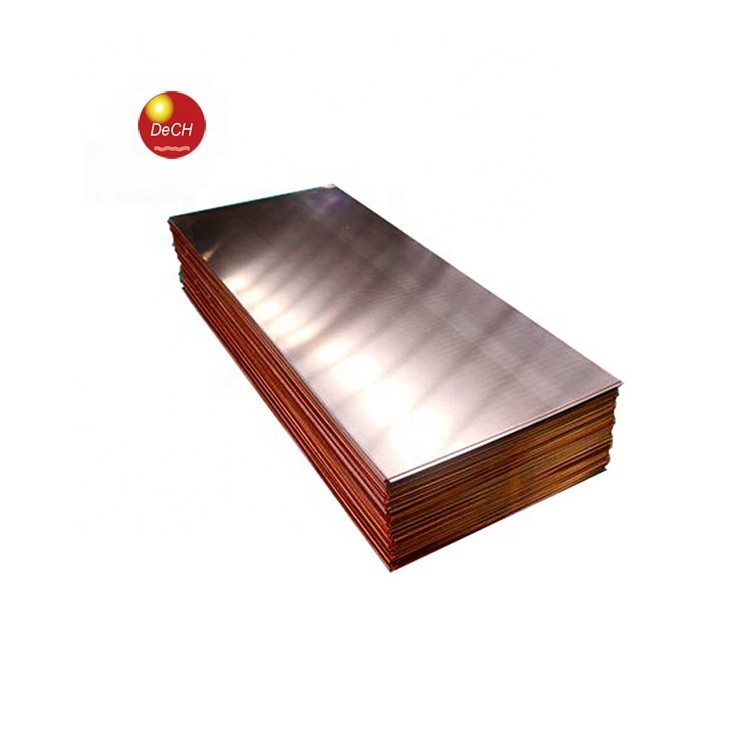

0.2mm 0.5mm 1mm 3mm 5mm Red Copper Plate C1100 C1200
-
Surface:
-
Mirror,Anodized,Brushed,Mill Finished,Polished etc.
-
Type:
-
Strip Coil Foil Plate Sheet
-
Certification:
-
Mill Cert ISO ROSH SGS TUV
-
Standard:
-
JIS ASTM DIN EN ISO
-
Size:
-
Welcome to Customized
-
Trade Term:
-
EXW FOB CIF CNF DDU DDP etc.
-
Payment Term:
-
T/T L/C West Union Trade Assurance etc.
-
Sample:
-
Paid Samples
Quick Details
-
Material:
-
Bronze
-
Cu (Min):
-
99.9%
-
Alloy Or Not:
-
Non-Alloy
-
Elongation (≥ %):
-
35%
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
C1010,C1020,C1100,T1,T2,etc
-
Application:
-
Electronic,Industry,Decoration
-
Width:
-
2.0mm-1200mm
-
Grade:
-
Red Pure Copper
-
Product Name:
-
0.2mm 0.5mm 1mm 3mm 5mm Red Copper Plate C1100 C1200
-
Surface:
-
Mirror,Anodized,Brushed,Mill Finished,Polished etc.
-
Type:
-
Strip Coil Foil Plate Sheet
-
Certification:
-
Mill Cert ISO ROSH SGS TUV
-
Standard:
-
JIS ASTM DIN EN ISO
-
Size:
-
Welcome to Customized
-
Trade Term:
-
EXW FOB CIF CNF DDU DDP etc.
-
Payment Term:
-
T/T L/C West Union Trade Assurance etc.
-
Sample:
-
Paid Samples
| Grade | Chemical Composition(%) | |||||||||||||
| GB | JIS | Cu+Ag | P | Bi | Sb | As | Fe | Ni | Pb | Sn | S | Zn | O | |
| Refined Copper | T1 | C1020 | 99.95 | 0.001 | 0.001 | 0.002 | 0.002 | 0.005 | 0.002 | 0.003 | 0.002 | 0.005 | 0.005 | 0.02 |
| T2 | C1100 | 99.9 | - | 0.001 | 0.002 | 0.002 | 0.005 | - | 0.005 | - | 0.005 | - | - | |
| T3 | C1221 | 99.7 | - | 0.002 | - | - | - | - | 0.01 | - | — | - | - | |
| Oxygen Free Copper | TU0 | C1011 | 99.99 | 0.0003 | 0.0001 | 0.0004 | 0.0005 | 0.001 | 0.001 | 0.0005 | 0.0002 | 0.0015 | 0.0001 | 0.0005 |
| TU1 | C1020 | 99.97 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.003 | 0.002 | 0.004 | 0.003 | 0.002 | |
| TU2 | 99.95 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.004 | 0.002 | 0.004 | 0.003 | 0.003 | ||
|
Grade (JIS) |
Temper |
Vickers Hardness (HV) |
Tensile Strength (Mpa) |
Elongation (%) |
|
C1100 C1201 C1220 etc. |
M (Soft) |
≤70 |
≥195 |
≥30 |
|
Y4 (1/4H) |
60-95 |
215-295 |
≥25 |
|
|
Y2 (1/2H) |
80-110 |
245-345 |
≥8 |
|
|
Y (Full Hard) |
90-120 |
295-395 |
≥3 |
|
|
T (Extra Hard) |
≥110 |
≥350 |
- |
| 0.5mm | 0.6mm | 0.7mm | 0.8mm | 1mm | 1.2mm |
| 1.5mm | 1.8mm | 2mm | 2.5mm | 3mm | 4mm |
| 5mm | 6mm | 8mm | 10mm | 12mm | 15mm |
| 18mm | 20mm | 22mm | 25mm | 28mm | 30mm |
| 35mm | 40mm | 45mm | 50mm | 55mm | 60mm |
| 65mm | 70mm | 75mm | We Can Customize Any Size, Please Contact Us. | ||
| Remark : | |||||
| Thickness 0.5mm - 6.0mm , Width x Length (standard): 600mm x 1500mm | |||||
| Thickness ≥ 8mm , Width x Length (standard) : 1000mm x 2000mm | |||||
