Quick Details
-
Input:
-
HD MI
-
Output:
-
RF Output
-
Video encoding:
-
MPEG-2
-
Audio encoding:
-
MPEG-1 Layer 2, AAC, AC3
-
CC (Closed Caption):
-
EIA608 supported
-
LCN:
-
Supported
-
Modulation:
-
DVB-C/DVB-T/ASTC/ISDB-T
-
DVB-C QAM standard:
-
J.83A (DVB-C) 16/32/64/128/256QAM , J.83B
-
Application:
-
Hotel Home Nurse System
-
Type:
-
Portable/Mini/ Composite
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibvision
-
Model Number:
-
EMH610S
-
Input:
-
HD MI
-
Output:
-
RF Output
-
Video encoding:
-
MPEG-2
-
Audio encoding:
-
MPEG-1 Layer 2, AAC, AC3
-
CC (Closed Caption):
-
EIA608 supported
-
LCN:
-
Supported
-
Modulation:
-
DVB-C/DVB-T/ASTC/ISDB-T
-
DVB-C QAM standard:
-
J.83A (DVB-C) 16/32/64/128/256QAM , J.83B
-
Application:
-
Hotel Home Nurse System
-
Type:
-
Portable/Mini/ Composite

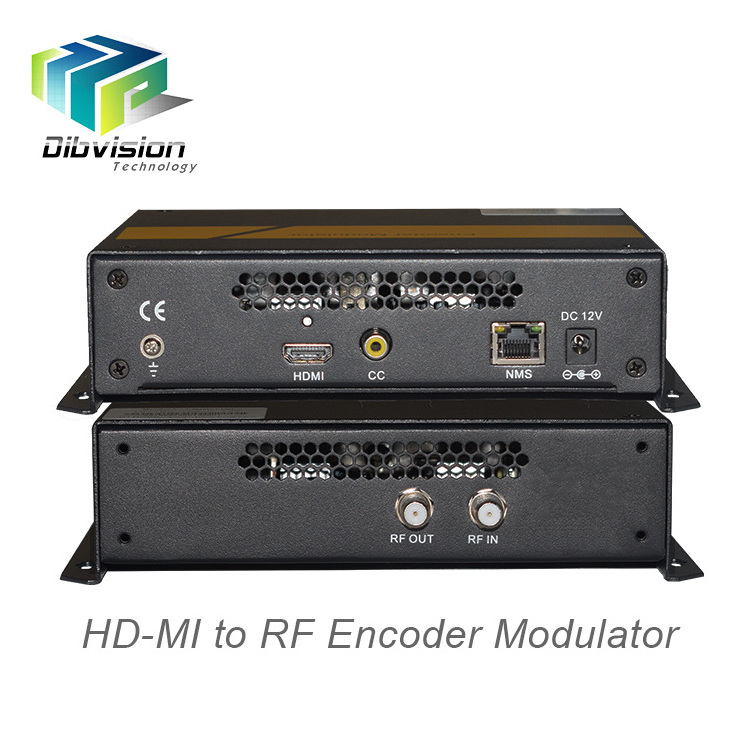

EMH610S series encoder & modulator is Dibsys’s consumer electronics which allows you to easily distribute content up to 1080p resolution to an unlimited number of displays, using the TV’s built in QAM tuner, eliminating the need for cumbersome, expensive set-top-boxes or media players at each display.
It is an all-in-one device integrating MPEG-2 encoding and modulating to convert audio/video signals into DVB-C/DVB-T/ATSC /ISDBT RF out with dynamic switching. And allows audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, antenna etc. Its output signal is to be received by TV sets or STBs etc.
- HD MI input for encoding
- MPEG-2 SD/HD video encoding
- MPEG1 Layer II, AAC, AC3 audio encoding optional
- CC (closed caption) EIA608 supported
- Transmission mode (FFT): 2K, 8K (applied in DVB-T modulation)
- DVB-C/T/ASTC/ISDBT RF in one device, DVB-C/T/ASTC/ISDBT modulation dynamic switching
- Web-server management
|
Encoding Section |
|
|
HD MI |
|
|
Video |
Encoding MPEG-2 |
|
Interface |
HD MI*1 |
|
Resolution---input |
480@ 59.94/60i, 576@ 50i,720@ 50/59.94/60p, 1080@ 50i,1080@ 59.94/60i, 1080@ 50p,1080@ 59.94/60p |
|
Resolution---output |
480@30p, 576@25p, 720@25/30p, 1080@25p, 1080@30p,1080@25p, 1080@30p |
|
Bit rate |
1.000~20.00 Mbps |
|
Aspect Ratio |
16:9 |
|
Audio |
|
|
Encoding |
MPEG1 Layer II, AAC, AC3 |
|
Sample rate |
48 KHz |
|
Bit rate |
|
|
MPEG1 Layer II |
192kbps |
|
AAC |
VBR |
|
AC3 |
128 kbps |
|
Modulator Section |
|
|
DVB-T |
|
|
Standard |
DVB-T COFDM |
|
Bandwidth |
2M, 3M, 4M, 5M, 6M, 7M, 8M |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Code rate |
1/2, 2/3,3/4, 5/6, 7/8 |
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
Transmission mode |
2K, 8K |
|
MER |
≥35dB |
|
RF frequency |
100~1000MHz, 1KHz step |
|
RF output level |
-63~-16(44~91dbµV), 0.1db step |
|
DVB-C |
|
|
Standard |
J.83A (DVB-C), J.83B |
|
MER |
≥35dB |
|
RF frequency |
100~1000MHz, 1KHz step |
|
RF output level |
-63~-16(44~91dbµV), 1db step |
|
Symbol rate |
3.000~7.000Msps adjustable |
|
J.83A |
Constellation 16/32/64/128/256QAM Bandwidth 8M |
|
J.83B |
Constellation 64/256QAM Bandwidth 6M |
|
ATSC |
|
|
Standard |
ATSC A/53 |
|
MER |
≥35dB |
|
RF frequency |
100~1000MHz, 1KHz step |
|
RF output level |
-63~-16(44~91dbµV), 1db step |
|
Constellation |
8VSB |
|
ISDB-T |
|
|
Standard |
ARIB STD-B31 |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Guard Interval |
1/32, 1/16, 1/8,1/4 |
|
Transmission mode |
2K, 4K, 8K |
|
RF frequency |
100~1000MHz, 1KHz step |
|
RF output level |
-63~-16(44~91dbµV), 1db step |
|
System |
|
|
Remote control |
web NMS |
|
Language |
English |
|
LCN Insertion |
yes |
|
Upgrade |
Web-server |
|
General |
|
|
Power supply |
DC 12V |
|
Dimensions |
203*144*52mm |
|
Weight |
<1kg |
|
Operation temperature |
0~45℃ |
