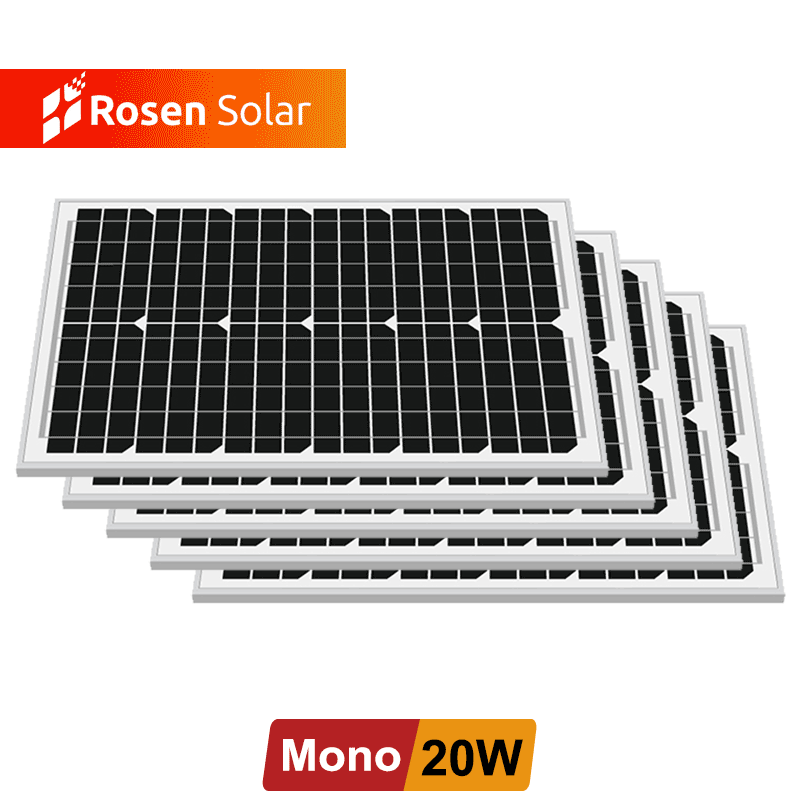

High efficiency 5BB PV cell
Uniform color
Anti-PID
Germany standard Cell
Full test
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Rosen
-
Model Number:
-
RS20M-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
490*350*25mm
-
Product name:
-
mono 20w Panel
-
Junction Box:
-
IP67
-
Solar cell:
-
5BB Mono 156*156
-
Color:
-
Blue Ad Black
-
Cable:
-
4mm2
-
Efficiency:
-
15-18%
-
Glass:
-
3.2mm Tempered Low Iron
-
TPT back sheet:
-
Black/White Backsheet
-
Dimension:
-
490*350*25mm
-
Certificate:
-
TUV/CE
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Warranty:
-
25 Years Output Power Guarantee
-
Brand Name:
-
Rosen
-
Model Number:
-
RS20M-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
490*350*25mm
-
Product name:
-
mono 20w Panel
-
Junction Box:
-
IP67
-
Solar cell:
-
5BB Mono 156*156
-
Color:
-
Blue Ad Black
-
Cable:
-
4mm2
-
Efficiency:
-
15-18%
-
Glass:
-
3.2mm Tempered Low Iron
-
TPT back sheet:
-
Black/White Backsheet
-
Dimension:
-
490*350*25mm
-
Certificate:
-
TUV/CE
Panels Description
Technical Specification Data
|
Model
|
RS5M-36
|
RS10M-36
|
RS20M-36
|
RS30M-36
|
RS40M-36
|
||||
|
Rated Maximum Power at STC
|
5W
|
10W
|
20W
|
30W
|
40W
|
||||
|
Open Circuit Voltage(Voc/V)
|
21.6
|
21.6
|
21.6
|
21.6
|
21.6
|
||||
|
Maximum Power Voltage(Vmp/V)
|
17.6
|
17.6
|
17.6
|
17.6
|
17.6
|
||||
|
Short Circuit Current(Isc/A)
|
0.33
|
0.65
|
1.3
|
1.93
|
2.59
|
||||
|
Maximum Power Current(Imp/A)
|
0.29
|
0.58
|
1.15
|
1.72
|
2.29
|
||||
|
Module Weight
|
0.73
|
1.1
|
2.1
|
3.3
|
3.5
|
||||
|
Module Dimension(mm)
|
350*170*17
|
350*255*17
|
490*350*25
|
670*350*25
|
670*420*25
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
|
|
|
|
|
||||
Detailed Images
Solar Cells
Junction box
Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life
Glass
Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years
Frame
Stock-size
Silvery and black
Thickness 30/35/40/50mm
Stress test
Packing & Delivery
Packing Details : On Pallets, 2pcs per carton or wooden box
Delivery Details : 5-10days
