Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GD
-
Model Number:
-
GD-HP01
-
Production Name:
-
Foundation System
-
Type:
-
Standard
-
Surface treatment:
-
Hot Dipped Galvanized
-
Size:
-
35mm-114mm
-
Length:
-
1-3m
-
MOQ:
-
500pcs
-
Package:
-
Wooden Pallet
-
Certificate:
-
ISO9001
-
Payment terms:
-
30%TT Advance + 70% Balance
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Workshop
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GD
-
Model Number:
-
GD-HP01
-
Production Name:
-
Foundation System
-
Type:
-
Standard
-
Surface treatment:
-
Hot Dipped Galvanized
-
Size:
-
35mm-114mm
-
Length:
-
1-3m
-
MOQ:
-
500pcs
-
Package:
-
Wooden Pallet
-
Certificate:
-
ISO9001
-
Payment terms:
-
30%TT Advance + 70% Balance
-
Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
-
Helices material: ASTM A36 Hot rolled plate
-
Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
-
Leading edge of Helices beveled 45 degrees
-
Greater Section Modulus Strength to resist Twisting and Deflection
-
Greater Load Capacities
-
Helical Torque Anchors TM may be the preferred solution for your foundation repair project due to these factors:
- Ease of Installation
- Little to No Vibration
- Immediate Load Transfer upon Installation
- Installed Torque Correlates to Capacity
- Easily Load Tested to Verify Capacity
- Installs Below Active Soils
- Installation under any Weather Conditions
- Little to No Disturbance to the Site
|
Shaft Size |
Installation |
Compression |
Ultimate |
Torsional |
Load Limit |
|
|
Torque Factor |
Load Limit |
Tension |
Strength |
Torsional |
|
1.5 SQ |
10 |
80,000 lbs. |
70000 |
7,000 ft-lb |
70,000 lb |
|
1.75SQ |
10 |
100,000lbs |
100,000lbs |
11,000ft-lb |
100,000lbs |
|
2.25SQ |
11 |
200,000lbs |
200,000lbs |
23,000ft-lb |
200,000lbs |
|
2.375OD. 0.190 |
9 |
100,000 lbs. |
90000 |
9,000 ft-lb |
81,000 lb |
|
2.875 OD. 0.217 |
8 |
120,000 lbs. |
115000 |
12,500 ft-lb |
100,000 lb |
|
3.50 OD. 0.254 |
7 |
140,000 lbs. |
155000 |
17,500 ft-lb |
122,500 lb |
|
4.50 OD. 0.337 |
6 |
190,000 lbs. |
195000 |
29,000 ft-lb |
174,000 lb |
|
4.50 OD. 0.375 |
6 |
220,000 lbs. |
215000 |
32,000 ft-lb |
192,000 lb |
Advantages

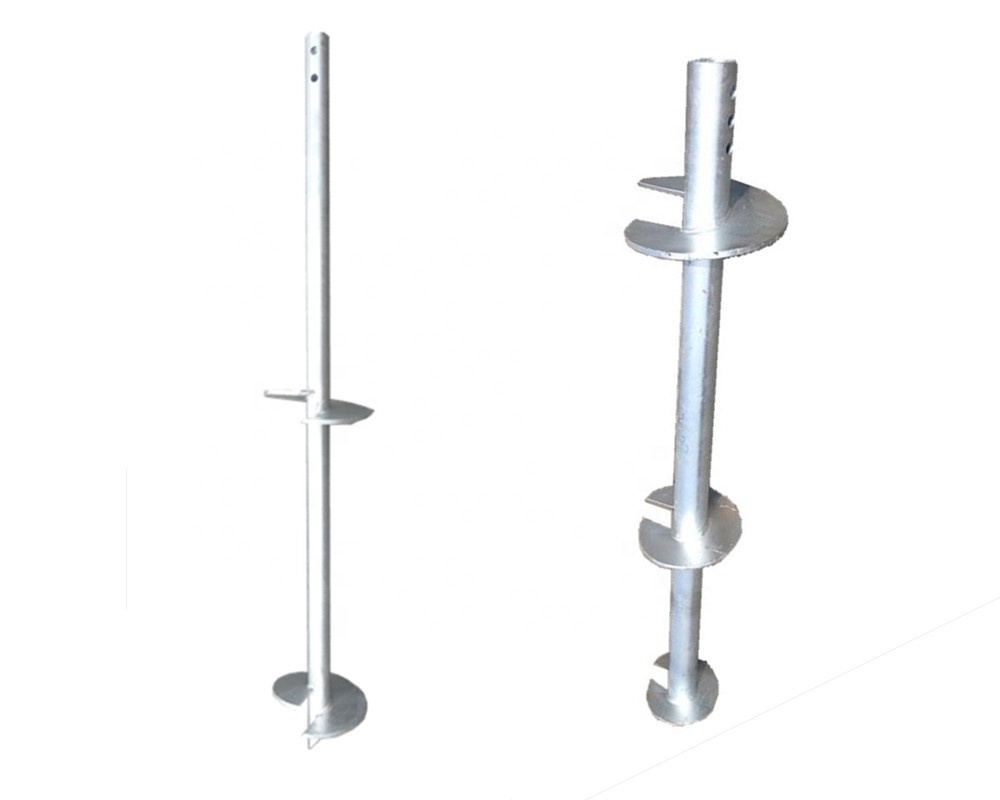

solar ground screw anchor is:offset eye helical anchor
1. extremely environmentally friendly and economical, can be recycled.
2. installed in a matter of minutes without digging and concrete.
3. more efficiency, lower cost, low labor strength.
4. operated precisely, flexible during drilling process.
5. no negative effects on landscape, no damaging on surrounding area.
6. long lifetime. Helical Soil Anchors
7. subjected to strict quality assurance, approved by LGA in Germany.
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.
3. Good quality, competitive pricing and timely service.
4. OEM and ODM service are available here.
5. Sample: Available.
