Quick Details
-
Product name:
-
Multi-channel hd to rf modulator
-
Input:
-
8/12/16/24 * HDM (optional) + ASI
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio Encoding:
-
MPEG-1 Layer 2
-
IP output:
-
IP (SPTS&MPTS) over UDP and RTP
-
RF output optional:
-
DVB-C/ DVB-T/ ISDB-T/ ATSC-T optional
-
DVB-C Constellation:
-
J.83A, J.83B, J.83C
-
DVB-T/ISDB-T Constellation:
-
QPSK, 16QAM, 64QAM
-
Network Management:
-
Web-based Management
-
Features:
-
for Free system
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
COLABLE
-
Model Number:
-
COL5011H
-
Product name:
-
Multi-channel hd to rf modulator
-
Input:
-
8/12/16/24 * HDM (optional) + ASI
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio Encoding:
-
MPEG-1 Layer 2
-
IP output:
-
IP (SPTS&MPTS) over UDP and RTP
-
RF output optional:
-
DVB-C/ DVB-T/ ISDB-T/ ATSC-T optional
-
DVB-C Constellation:
-
J.83A, J.83B, J.83C
-
DVB-T/ISDB-T Constellation:
-
QPSK, 16QAM, 64QAM
-
Network Management:
-
Web-based Management
-
Features:
-
for Free system

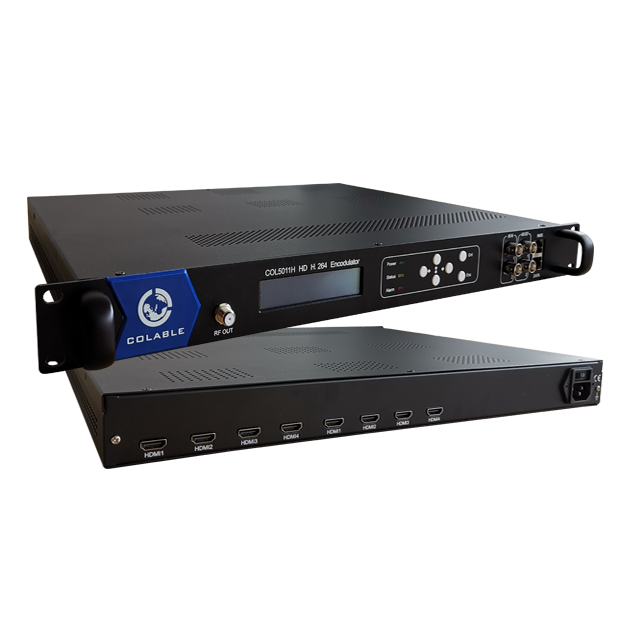

Digital TV headend 8 in 1 Mpeg4 H.264 AVC
IP Video 1080P Cable TV Encoder IPTV Modulator COL5011H
* Optional * Input: 8/12/16/24 HD Output: 4/8*DVB-C/DVB-T/ISDB-T/ATSC-T RF
Features
vv 8/12/16/24 HD input, MPEG-4 AVC/H.264 Video encoding
vv 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
RF output ,(ATSC, ISDBT, DTMB, DVB-C/-T)
vv 2 ASI inputs
vv 2 ASI Independent output (optional) as copy of 5MPTS
vv Support "Null PKT Filter" function
vv Support PID Remapping/ PCR accurate adjusting
vv PID pass
vv LCD, key function
vv Control via web management, and easy updates via web
Specifications
|
Input
|
HD (8/12/16/24 HD)
|
|
|
|
|||
|
|
2 ASI inputs
|
|
|
|
|||
|
output
|
4
RF output(DVB-C/DVB-T/ATSC/ISDBT)--COL5011H
8RF output(DVB-C/DVB-T/ATSC/ISDBT)--COL5011V
|
|
|
|
|||
|
|
2 ASI output
|
|
|
|
|||
|
|
IP output(SPTS and MPTS)IP output over UDP and RTP protocol
|
|
|
|
|||
|
Video
|
Encoding
|
MPEG-4 AVC/H.264
|
|
|
|||
|
|
Resolution
|
Input:1920*1080_60P, 1920*1080_60i,1920*1080_50P, 1920*1080_50i,1280*720_60P, 1280*720_50P,
720*576_50i,720*480_60i,
|
|
|
|||
|
|
|
Output:1920*1080_30P,1920*1080_25P,1280*720_30P,
1280*720_25P,720*576_25P,720*480_30P
|
|
|
|||
|
|
Bit-rate
|
1Mbps~13Mbps(each channel)
|
|
|
|||
|
|
Rate Control
|
CBR
|
|
|
|||
|
Audio
|
Encoding
|
MPEG1 Layer2
|
|
|
|||
|
|
Sampling rate
|
44.1KHz and 48Khz
|
|
|
|||
|
|
Bit-rate
|
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
|
|
|
|||
|
|
Resolution
|
24-bit
|
|
|
|||
|
|
Audio Gain
|
0-255 Adjustable
|
|
|
|||
|
Multiplexing
|
Maximum PID Remapping
|
180 output pids per channel
|
|
|
|||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
Modulator
|
DVB-T
|
RF number
|
4 DVB-T
|
|
|||
|
|
|
Standard
|
EN300744
|
|
|||
|
|
|
FFT mode
|
2K
|
|
|||
|
|
|
Bandwidth
|
6M, 7M, 8M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42 dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~ -10 dBm, 0.1db step
|
|
|||
|
|
DVB-C
|
RF number
|
4 RF output
|
|
|||
|
|
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|||
|
|
|
MER
|
≥40db
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
|
Symbol Rate
|
5.0Msps~7.0Msps,1ksps stepd
|
|
|||
|
|
|
|
J.83A
|
J.83B/J.83C
|
|||
|
|
|
Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
|||
|
|
|
Bandwidth
|
8M
|
6M
|
|||
|
|
ATSC-T
|
RF number
|
4 RF output
|
|
|||
|
|
|
Standard
|
ATSC A/53
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
8VSB
|
|
|||
|
|
|
FEC
|
RS(208 188)+
Trellis
|
|
|||
|
|
|
MER
|
≥40dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
ISDB-T
|
RF number
|
4 RF output
|
|
|||
|
|
|
Standard
|
ARIB STD-B31
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|||
|
|
|
Transmission Mode
|
2K
|
|
|||
|
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥40dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm,
0.1dBm step
|
|
|||
|
System function
|
Network management(WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension
|
(W*L*H) 550mm*515mm*140mm
|
|
|
|||
|
|
weight
|
6kg
|
|
|
|||
|
|
Environment
|
0~45℃(work); -20~80℃(storage)
|
|
|
|||
|
|
Power requirements
|
AC100~240V, 50/60Hz
|
|
|
|||
Packing for HD to RF Encoder Modulator
If bulk order, we suggest you air transport or sea.
Remark: we can check freight for your reference, also support cash on delivery (freight) if you have courier account.
Colable Electronics co.,ltd
Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
******** Cable TV CAS /SMS and IPTV Management Software of COLABLE are free .
********
Digital Cable TV Solution
********
IPTV solution from Head-end to User
Our experience:
Standing in digital system solution more than 10 years, with reliable Team.
Our products:
FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
Payment:
Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
Delivery Date:
2-5 working days
Our services:
Life-long Technical support, remote assistance
Warranty:
1 year for headend & STB
