Quick Details
-
Brand Name:
-
UNIFIBER or OEM
-
Use:
-
Optical Networks, FTTX
-
Warranty Time:
-
10
-
Product name:
-
4/8/16 ch Compact Size CCWDM Mux/Demux Passive Module
-
Wavelength:
-
1260~1620nm
-
Channel Numbers:
-
4/8/16 ch
-
Channel Spacing::
-
20nm
-
Package:
-
Mini ABS
-
Pigtail Type:
-
900um pigtail
-
Connector Type:
-
LC/UPC
-
Fiber Type:
-
G657A1
Quick Details
-
Type:
-
Wavelength Division Multiplexing
-
Model Number:
-
Compact Size CCWDM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNIFIBER or OEM
-
Use:
-
Optical Networks, FTTX
-
Warranty Time:
-
10
-
Product name:
-
4/8/16 ch Compact Size CCWDM Mux/Demux Passive Module
-
Wavelength:
-
1260~1620nm
-
Channel Numbers:
-
4/8/16 ch
-
Channel Spacing::
-
20nm
-
Package:
-
Mini ABS
-
Pigtail Type:
-
900um pigtail
-
Connector Type:
-
LC/UPC
-
Fiber Type:
-
G657A1
Product Description

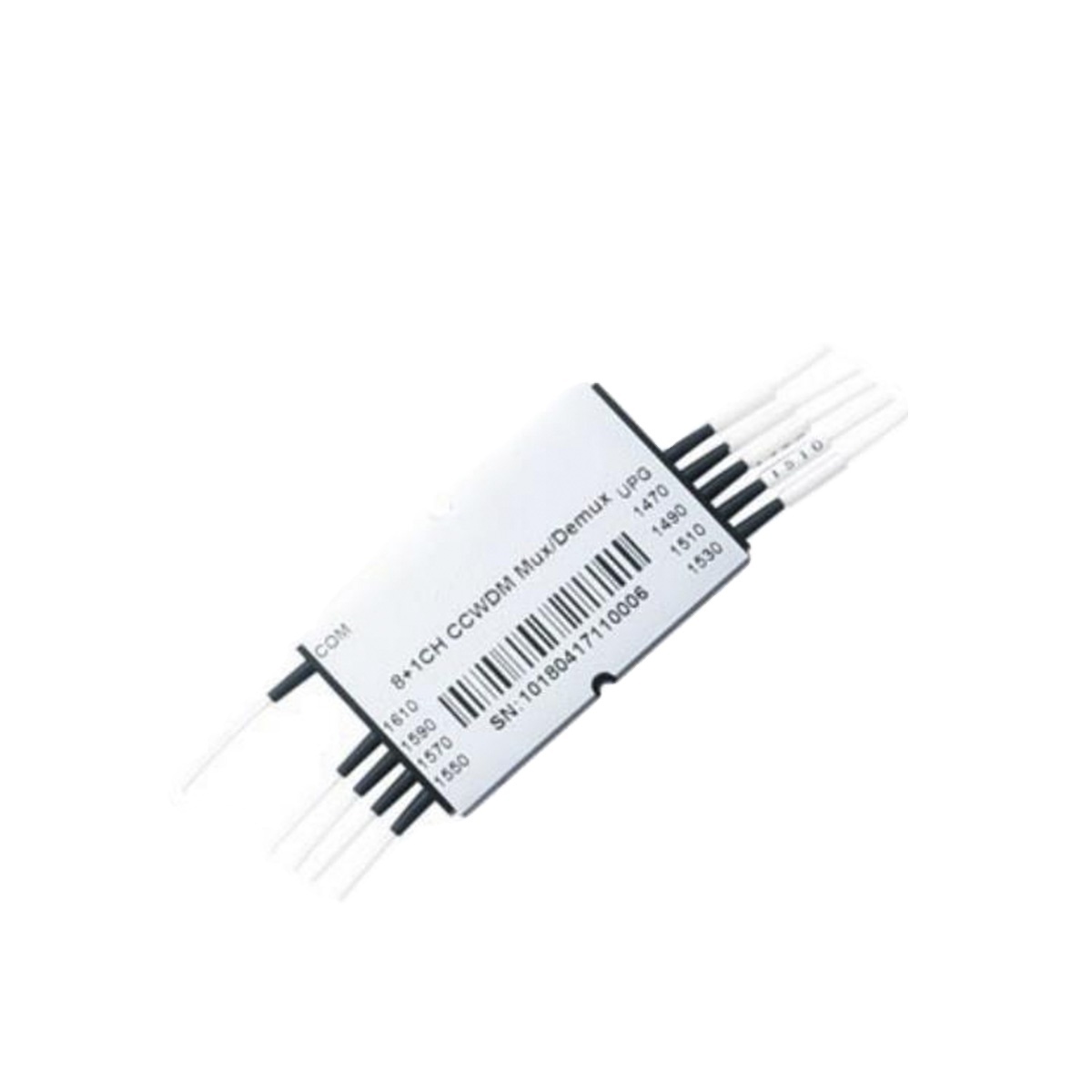

1270~1610nm Compact CWDM 10CH CCWDM
are integrated optical modules using UNIFIBER’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, UNIFIBER's Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better.All Crowntech's CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE).
Related Products
Features
High Isolation
Low PDL
Wide Operating Wavelength:
From 1260nm to 1620nm
Low Insertion Loss
Compact Design, Mini size
Good channel-to-channel uniformity
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Low PDL
Wide Operating Wavelength:
From 1260nm to 1620nm
Low Insertion Loss
Compact Design, Mini size
Good channel-to-channel uniformity
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Application
CWDM System
PON Networks
CATV Links
PON Networks
CATV Links
Specification
|
Description
|
|
Unit
|
Min
|
Typical
|
Max.
|
|||
|
Optional channel loss
|
|
dB
|
|
0.8
|
1
|
|||
|
Pass band width
|
|
nm
|
13
|
|
|
|||
|
Flatness
|
|
dB
|
|
0.3
|
0.5
|
|||
|
Adjacent channel isolation
|
|
dB
|
30
|
35
|
|
|||
|
Non adjacent channel isolation
|
|
dB
|
40
|
45
|
|
|||
|
Directivity
|
|
dB
|
55
|
|
|
|||
|
PDL
|
|
dB
|
|
|
0.2
|
|||
|
PMD
|
|
ps
|
|
|
0.2
|
|||
|
Max. power
|
|
mw
|
300
|
|
|
|||
|
Pass channel insertion loss
|
P
|
dB
|
0.8
|
|
|
|||
|
|
A
|
|
1
|
|
|
|||
|
Channel wavelength
|
|
nm
|
1471 1491 1511 1531 1551 1571 1591 1611
|
|
|
|||
|
|
|
|
Can be selected on request or any channel between 1260-1625
|
|
|
|||
|
Operating temperature
|
|
°C
|
0 ~+70
|
|
|
|||
|
Storage temperature
|
|
°C
|
-40 ~+85
|
|
|
|||
|
Package
|
|
mm
|
43(L)X28(W)X6(H) or customerized
|
|
|
|||
