Quick Details
-
Brand Name:
-
Longking
-
Fork Length:
-
1220 mm, 1220mm
-
Fork Width:
-
2000 mm, 2000mm
-
Overall Dimensions:
-
4705*2000*2500 mm, 4705*2000*2500mm
-
Weight (KG):
-
0 kg
-
Power Source:
-
Diesel Engine
-
Certification:
-
ISO9001,CE
-
Rated capacity:
-
5000kg
-
Rated power:
-
83Kw
Quick Details
-
Min. Lifting Height:
-
`, 216mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China, Shanghai, China
-
Brand Name:
-
Longking
-
Fork Length:
-
1220 mm, 1220mm
-
Fork Width:
-
2000 mm, 2000mm
-
Overall Dimensions:
-
4705*2000*2500 mm, 4705*2000*2500mm
-
Weight (KG):
-
0 kg
-
Power Source:
-
Diesel Engine
-
Certification:
-
ISO9001,CE
-
Rated capacity:
-
5000kg
-
Rated power:
-
83Kw

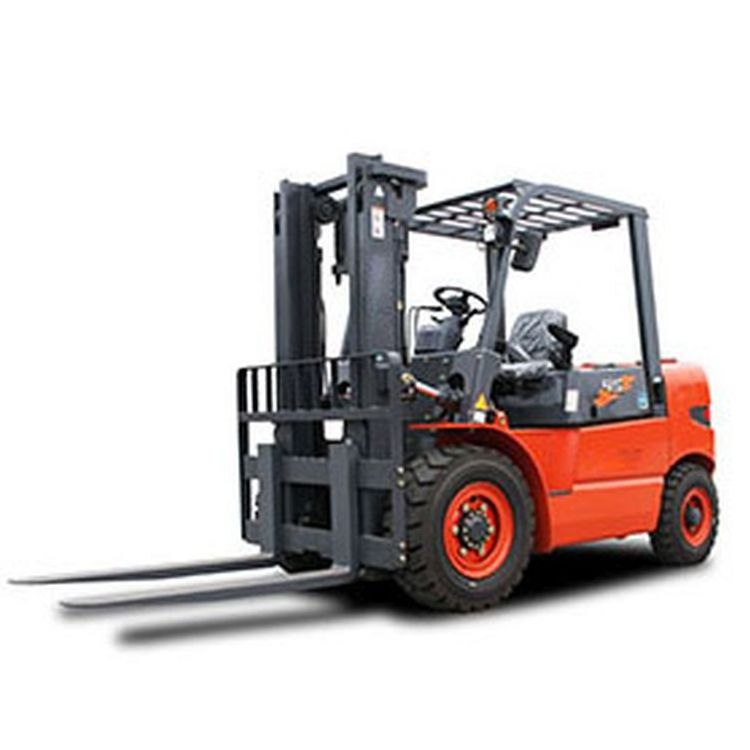

5Ton LONKING Manual Hand Pallet Truck Hydraulic Forklift LG50DT
Product Description
Adopting advanced man-machine engineering design, including the engine collocated with floating shock-mitigating device, the redirector providing low torsional moment. Adjustable steering wheel can be adjusted according to different work condition and operator's body, operators won't be tired after long time working. Wide space for legs makes the operator more comfortable. The semi-floating bonnet with built-in heat and sound insulation.
Reasonable, Stable and Low Center of Gravity:
By using computer, simulated most reasonable and stable center of gravity; forklift body is welded precisely by strong steels, insuring it more stable and balanced during handling material and driving.
Reasonable, Stable and Low Center of Gravity:
By using computer, simulated most reasonable and stable center of gravity; forklift body is welded precisely by strong steels, insuring it more stable and balanced during handling material and driving.
Parameters
| MODEL | LG50DT |
| Power type | Diesel |
| Rated capacity (Kg) | 5000 |
| J Load centre (mm) |
600 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lifting height (mm) | 200 |
| L5*W*T STD Fork size (mm) | 1220×150×60 |
| Mast tilt angle (deg) | Front 6 Rear 12 |
| L3 Front overhang (mm) | 590 |
| L4 Rear overhang (mm) | 645 |
| Overall dimension | |
| L1 Overall length(mm) | 4705 |
| W1Overall width (mm) | 2000 |
| h2 Mast lowered height (mm) | 2500 |
| h4 Overhead guard height (mm) | 2464 |
| R1 Min.turning radius (mm) | 3415 |
| Min .intersecting aisle (mm) | 5400 |
| Speed(load/unload) | |
| Max.traveling speed (km/h)(F/R) | 27/27 |
| Max,lifting speed (mm/s)(load/unload) | 330/450 |
| Max.gradient (%) | 20 |
| Dead weight (kg) | 8082 |
| S/P Tread(frnt/rear)(mm) | 1470/1700 |
| L2 Axle distance (mm) | 2250 |
| Min.ground clearance | |
| m2 Mast (mm) | 216 |
| m1 Frame (mm) | 248 |
