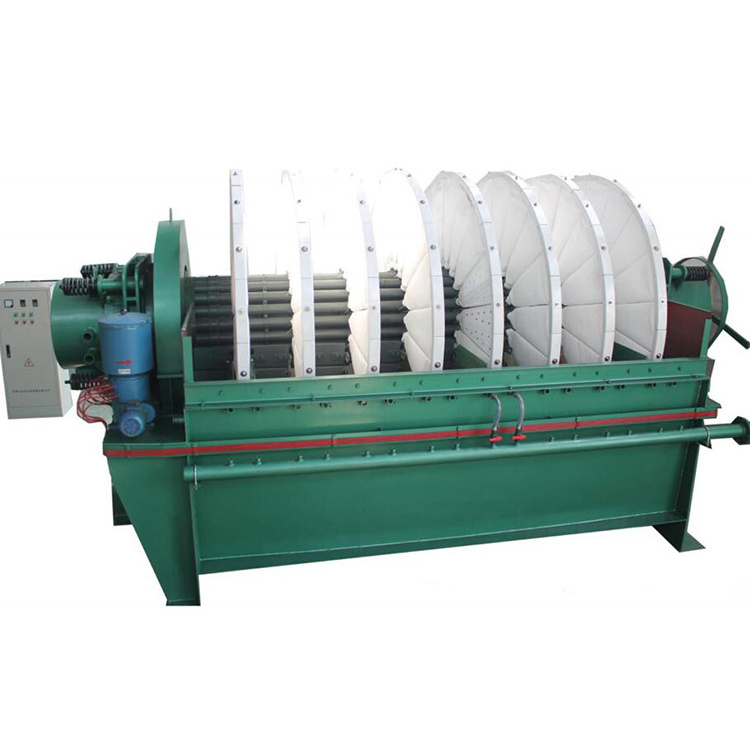

High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine
High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine

High Quality Mineral Processing Continuous Working Disc Vacuum Filter Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $10000
≥3 Sets
US $8000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
JXSC
Product name:
Rotary Vacuum Disc Filter
Color:
Customer's Request
Certificate:
ISO CE
Advantage:
High Working Effiency
Usage:
Mining Separation
Feature:
Long Service Life
Quality:
High Level
Function:
Mining process
After-sales Service:
Provided
Aplicacion:
mining

Quick Details

Weight (KG):
500
Marketing Type:
Hot Product 2023
Place of Origin:
Jiangxi, China
Brand Name:
JXSC
Product name:
Rotary Vacuum Disc Filter
Color:
Customer's Request
Certificate:
ISO CE
Advantage:
High Working Effiency
Usage:
Mining Separation
Feature:
Long Service Life
Quality:
High Level
Function:
Mining process
After-sales Service:
Provided
Aplicacion:
mining
Product Description
Product Introduction
Disc vacuum filter is a device that uses vacuum as the filtering power to separate the slurry from solid to liquid. It is suitable for filtration and dehydration of fine particle materials in mining metal ore, non-metallic ore, environmental protection sludge, cement, building materials and other industries.
Application
Our product have found their wide application in the separation of selected mine and tails mine of nonferrous metal,ferrous metal,less-common metal and oxide of electrolyze residue,slag in chemical,environment protection and so on. The material fineness from -200 to -450 meshes and various superfine materials.
Working Principle
Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper.It can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy,chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.
ceramic vacuum filter
We also offer ceramic filters。 ceramic vacuum filter is a new type high-effect, energy saving filtration equipment, using vacuum and ceramic plate with micro-holes for solid-liquid separation. The plate material is corundum, resisting to almost all temperatures, and has a long operation life. The micro-holes in plates only allows liquid to flow through but not air and solid. Filtrate is drawn through the ceramic plates as they are immersed into the slurry cabin, and cakes forms on the surface of the Plates.
Product display
Advantages and Features
The ZPG type heavy-duty disc vacuum filter for metal mines fully draws on the advantages of similar foreign products. Aiming at the characteristics of high density of metal minerals, fast sedimentation, and strong impact force of the filtrate containing solid particles on the filter tube, the overall performance and the components are tested. Optimum design of reliability, with solid structure, stable operation of the filter disc, automatic variable speed strong stirring, reliable shaft end seal, wear-resistant and durable ceramic filter tube, high strength filter fan, large porosity, smooth surface of high-strength filter cloth , High cake unloading rate and long service life ensure that metal minerals can obtain a good dehydration index in solid-liquid separation.
Product Parameters
Filter tray diameter(mm)
filtration area
Filter tray quantity(m²)
power of main spindle motor
power of stirring motor(kw)
Discharge method
Length(mm)
Width(mm)
Height(mm)
Processing Capacity(t/h·m²)
2100
10
2
2.2
3
Blowback
2535
2480
2690
0.85-1.2
15
3
2925
20
4
3
4
3315
25
5
3705
30
6
4
5.5
4095
35
7
4485
40
8
5.5
7.5
4875
45
9
5265
50
10
5655
60
12
6435
3100
60
5
5.5
7.5
Blowback
4735
4280
3740


0.85-1.2
72
6
7.5
11
5235
84
7
5735
96
8
11
15
6235
108
9
6735
120
10
7235
More Model Please Contact Us,the Model Also Can Be Customized!
Successful cases
We have more than 35 years of experience in mining equipment production and can provide a full range of mining equipment from crushing to beneficiation. We have professional engineers who can design the process for you and can provide field guidance for installation services. Here are some of our success stories. Welcome to inquire!
Packing & Delivery

◆ Ways of packing

1.Small parts packed in the wooden cases
2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container

◆ Shiping by sea/air freight

1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
Company Introduction
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.

Our core advantages as below:
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.

After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.

How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.

●How about price?

Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
