Quick Details
-
Brand Name:
-
3nh
-
Model Number:
-
Yg268
-
Measuring Angle:
-
20/60/85angle
-
Measuring Time:
-
0.5s
-
Language:
-
Chinese/English
-
Dimension:
-
160*52*84mm
-
Interface:
-
USB
-
Weight:
-
300g
-
Division Value:
-
0.1GU
-
Long-time Calibration:
-
Automatically check and made the calibration
-
Display:
-
2.3 inch white and black screen
-
Optional Accessories:
-
Miniature printer,Bluetooth
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3nh
-
Model Number:
-
Yg268
-
Measuring Angle:
-
20/60/85angle
-
Measuring Time:
-
0.5s
-
Language:
-
Chinese/English
-
Dimension:
-
160*52*84mm
-
Interface:
-
USB
-
Weight:
-
300g
-
Division Value:
-
0.1GU
-
Long-time Calibration:
-
Automatically check and made the calibration
-
Display:
-
2.3 inch white and black screen
-
Optional Accessories:
-
Miniature printer,Bluetooth
Products Description

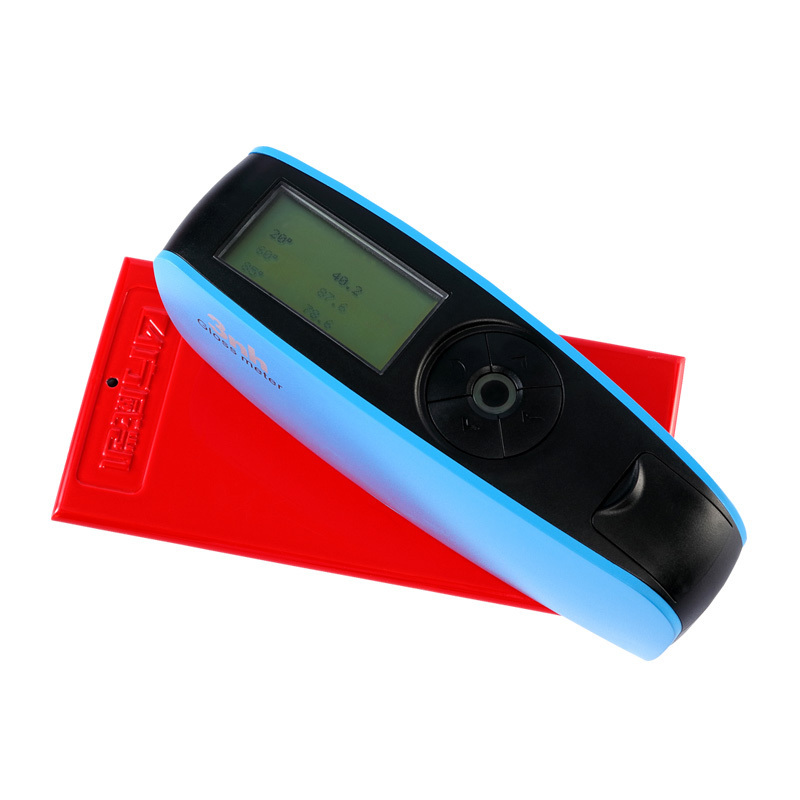

YG268 Tri-angle Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers' requirements.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers' requirements.
Detailed Photos
Specification
|
Model
|
YG268 Tri-angle Gloss Meter
|
|
Measuring Angle
|
20° 60°85°
|
|
Measuring Range
|
20°: 0-2000GU
60°: 0-1000GU 85°: 0-160GU |
|
Division Value
|
0.1GU
|
|
Measuring Modes
|
Basic mode; Statistic mode; Continuous mode; QC mode
|
|
Measuring Time
|
0.5S
|
|
Repeatability
|
0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
|
|
Accurate
|
Conform with JJG696 first grade requirements of gloss meter
|
|
Auto Power-off Time
|
Within 30s-120s
|
|
Long-time Calibration
|
Automatically check and made the calibration
|
|
Language
|
Chinese & English
|
|
Storage
|
35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
|
|
Display
|
2.3 inch white and black screen
|
|
Size
|
160*52*84mm
|
|
Weight
|
About 300g
|
|
Power Supply
|
1pc dry-cell battery(can measure 10000 times) or use USB Charge
|
|
Interface
|
USB
|
|
PC Software
|
GQC6 QC software can printing testing report and with more extended functions
|
|
Operation Temperature Range
|
0-40ºC(32-104° F)
|
|
Storage Temperature Range
|
-20-50ºC(-4-122° F)
|
|
Humidity Range
|
< 85% RH, without condensation
|
|
Standard Accessories
|
USB cable, user manual, calibration plate, QC software
|
|
Optional Accessories
|
Miniature printer,Bluetooth
|
