Quick Details
-
Dimension(L*W*H):
-
1600*1200*1650
-
Weight:
-
450 KG
-
Product name:
-
High frequency welding machine
-
Function:
-
Embossing machine
-
Color:
-
Blue
-
Advantage:
-
Adjust pressure arbitrarily
-
Packing:
-
Wooden Box
-
Certificate:
-
CE Certificate
-
After Warranty Service:
-
Video technical support
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GCQ
-
Dimension(L*W*H):
-
1600*1200*1650
-
Weight:
-
450 KG
-
Product name:
-
High frequency welding machine
-
Function:
-
Embossing machine
-
Color:
-
Blue
-
Advantage:
-
Adjust pressure arbitrarily
-
Packing:
-
Wooden Box
-
Certificate:
-
CE Certificate
-
After Warranty Service:
-
Video technical support

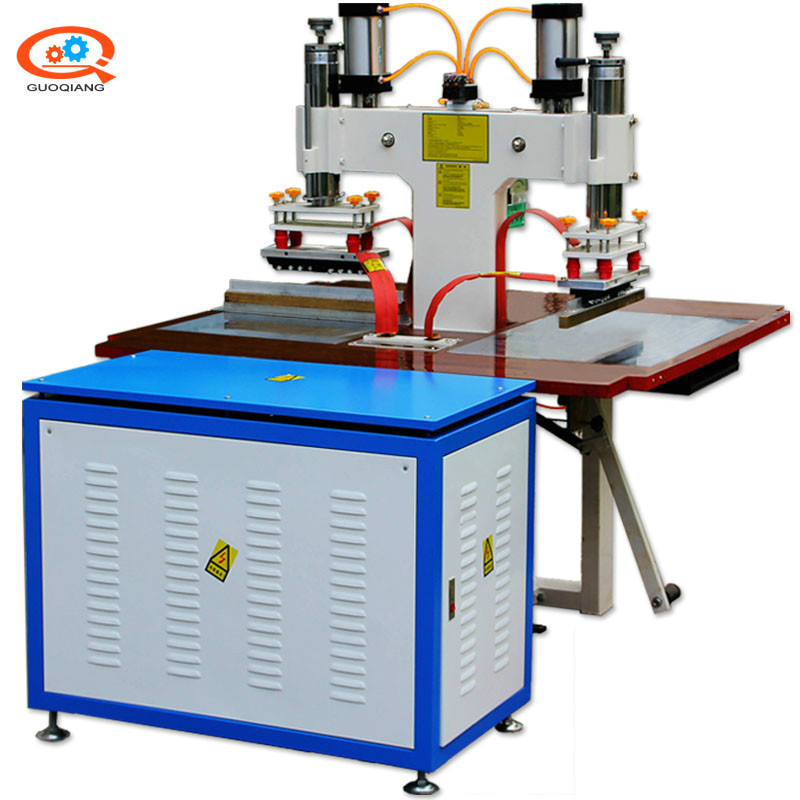

The machine has double head of HF welders with 5, 10KW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.
- Specially installed with large pressure output device, Easy for workers.
- With auxiliary heating device, producing in a short time.
- Work two side without interference, can be done two different products
- Equipped with spark suppressor flow, to avoid burning of molds and materials
- Machine will be done all the technical setup before dispatch.
|
Model No |
GCQ-W5KW |
GCQ-W8KW |
GCQ-W10KW |
|
Voltage |
AC220/380/400/415/440V 50/60HZ(Customized) |
||
|
Output Power |
5KW |
8KW |
10KW |
|
Input Power |
8KVA |
10KVA |
12KVA |
|
HF Frequency |
27.12MHZ ±0.6% |
||
|
Oscillation Tube |
8T85RB |
8T85RB |
8T85RB |
|
Anti-spark Tube |
NL-5557 |
NL-5557 |
NL-5557 |
|
Gap of Electrode |
200mm |
200mm |
200mm |
|
Size of upper electrode |
200×400mm |
300×500mm |
400×600mm |
|
Machine Size |
1080*1750*1600 |
1080*1750*1600 |
1080*1750*1600 |
|
Machine Weight |
400KG |
420KG |
450KG |
China factory high frequency embossing machine for jeans and clothing logo embossing
| Machine type | GCQ-W5KW |
| High frequecy output | 5KW |
| Power input | 8KVA |
| Oscillating tube | 7T85RB |
| Way of pressure | Steam presure or oil presuure |
| temperature control | Adjustable constant temperature 0-300 |
| Weight | 450kg |
| Machine size | 1080*1750*1600 |
1.How to install & run the machine?
Before leaving the factory, the machine has been installed and tested. At the same time, the seller will provide professional technical videos and related manuals. If you have any questions, you can consult our company at any time.
2.What is warranty of the machine?
Warranty is one year,and maintenance is lifelong.The worn-out parts will be sent
according to the buyer's condition.While guarantee is not valid if the machine is used in
wrong way or it is not maintained as shownin the technical handbook.
3.How to get spare parts?
The seller will enclose some quick wear parts with the machine when buyer places an
order.
4.How to guarantee the machine received in a good condition?
QC department of the seller will control the quality from raw material to the finished
product.When the machine is finished,the seller will send the buyer inspection video or
photos.Or buyer can come to seller’s factory to check it .
