Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Mingyang
-
Voltage:
-
380V 50HZ
-
Power:
-
30KW*6 + 15KW
-
Dimension(L*W*H):
-
2100*1600*1700mm
-
Weight:
-
2000
-
Year:
-
2023
-
Keywords:
-
wire drawing machine
-
Raw material:
-
Hot dipped galvanized steel sheet
-
Suitable material:
-
High Medium Low Carbon, Cooper, Aluminum wire
-
Motor:
-
Inverter motor
-
Max Speed of drawing:
-
600-1200m/min
-
Diameter of block:
-
560mm
-
Material Intensity:
-
≤1250mpa
-
MOQ:
-
1 Set
-
Color:
-
Clients' Requirements
Quick Details
-
Inlet Diameter:
-
3.0-6.5mm
-
Outlet Diameter:
-
1.6-3.0mm
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Mingyang
-
Voltage:
-
380V 50HZ
-
Power:
-
30KW*6 + 15KW
-
Dimension(L*W*H):
-
2100*1600*1700mm
-
Weight:
-
2000
-
Year:
-
2023
-
Keywords:
-
wire drawing machine
-
Raw material:
-
Hot dipped galvanized steel sheet
-
Suitable material:
-
High Medium Low Carbon, Cooper, Aluminum wire
-
Motor:
-
Inverter motor
-
Max Speed of drawing:
-
600-1200m/min
-
Diameter of block:
-
560mm
-
Material Intensity:
-
≤1250mpa
-
MOQ:
-
1 Set
-
Color:
-
Clients' Requirements
Product Description
This Nail Wire Drawing Machine is used to produce common low carbon steel wires,they are used into constuction fields,or weld all kinds of construction meshes,fence meshes,cage meshes,nail wires or other fields.
Usage and Features
With the introduction, assimilation and absorption of the foreign advanced technology and its essence, the straight line type Nail Wire Drawing Machine developed & produced by our factory is a kind of wire drawing equipment suitable for drawing the steel wire with higher tensile strength & performance. This kind of machine fits the production of tyre cords, bead wires, wire for steel ropes, stainless steel wires and carbon dioxide gas shield welding wires, etc.
| Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
| Material Intensity | ≤1250Mpa | ||||||||
| Drawing Passes | 2-11 | 2-11 | 2-11 | 2-12 | 2-12 | 2-12 | 2-12 | 2-9 | 2-9 |
| Max. Dia. Of Inlet Wire | 2.8mm | 3.5mm | 4.2mm | 5.0mm | 5.5mm | 6.5mm | 8mm | 10mm | 12.7mm |
| Min. Dia. Of Outlet Wire | 0.5mm | 0.6mm | 0.75mm | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 2.2mm | 2.6mm |
| Max. Speed Of Drawing | ~25m/s | ~20m/s | ~20m/s | ~16m/s | ~15m/s | ~15m/s | ~12m/s | ~12m/s | ~8m/s |
| Drawing Power | 7.5~18.5kw | 11~22kw | 11~30kw | 15~37kw | 22~45kw | 22~55kw | 30~75kw | 45~90kw | 55~110kw |

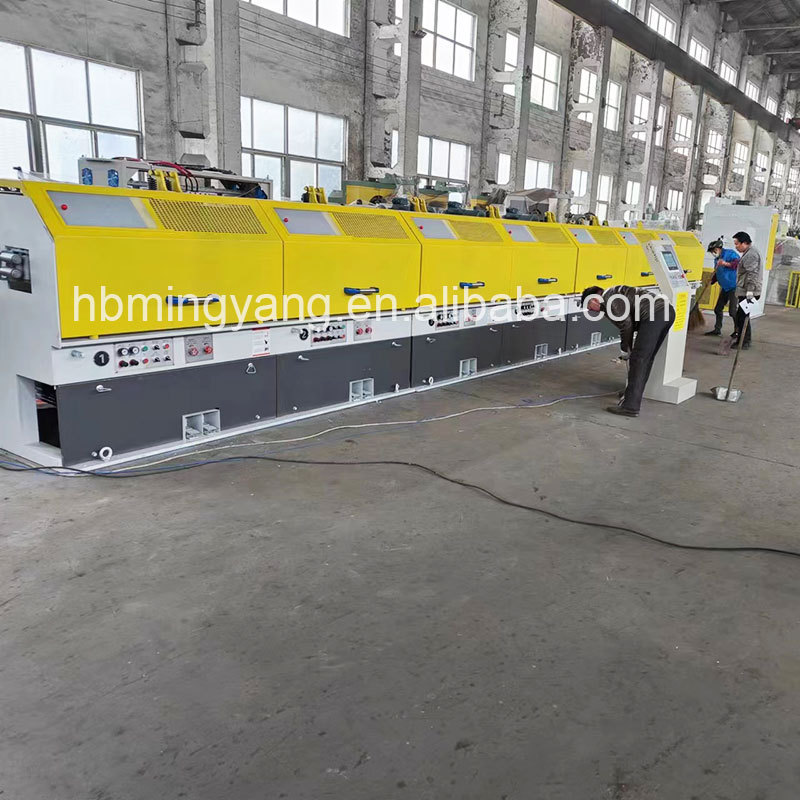

Machine Display
Machine detials
Main Features
1.Easy in installation and maintenance.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3.Running in a high automatization and intellectualization,no pollution
4.As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5.Good cooling system, final wire quality is very good.
Detailed Description
| Straight line Nail Wire Drawing Machine | ||
| 1 | Wire drawing drum material | Cast steel, tungsten coating and surfacing, HRC60. Roughness is less than 0.8umm |
| 2 | Drum cooling |
1. Drum inside cooling: drum’s inner wall has 3 water channels which displayed in 120 degrees direction by water spraying.
2. Drum external cooling: the ventilation pipe below the outside of the drum uses 360 degrees of forced air cooling on the surface of the drum and wire to lower the surface temperature of the reel below 80 degrees |
| 3 | Die box cooling way | The drawing die is cooled by using direct water inlet and outlet water, and the cooling effect is especially good |
| 4 | Tension machine | Built-in |
| 5 | Main frame | Steel plate and square tube welding |
| 6 | Safety device | Safety protection cover, broken line stop test |
| 7 | Vacuum design | Vacuum cleaning hole |
| 8 | Lighting | Each machine is equipped with separate lighting |
| 9 | Parking brake | Pneumatic brake |
| 10 | Electric cabinet | Protection level IP54 |
| 11 | Energy consumption | Monitoring is equipped with electricity meter |
| 12 | Field cable supply | The dedicated control line is provided by the seller, and other control cables and power cables are provided by the buyer |
Compact and cost-effective
1:wire drawing in a single, compact unit
2:economic and user-friendly machine design with easy maintenance
3:left and right-hand versions for Non Ferrous
4:metal wires with the highest quality requirements
5:single wire path with no crossover effective single-wire drying
2:economic and user-friendly machine design with easy maintenance
3:left and right-hand versions for Non Ferrous
4:metal wires with the highest quality requirements
5:single wire path with no crossover effective single-wire drying
Finished product
