5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer
5000 gallon water tank trailer stainless steel tank semi  trailer

5000 gallon water tank trailer stainless steel tank semi trailer

FOB Reference Price: Get Latest Price
≥1 Sets
US $25000
≥20 Sets
US $18000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Model:
MXH9400GFL
Tank Material:
Q235, high-strength carbon steel
Tank Thickness:
4mm
Axle:
13 Ton Fuwa Brand
Suspension:
Mechanical Suspension
Tire Spec.:
11.00R20 12R22.5 12PR
King Pin:
2"(50mm)or3.5"(90mm)
Landing Gear:
JOST Brand Standard 28ton
Volume:
40,000L
Function:
Transport Fuel
OE NO.:
MXH9400GSY
Certification:
CCC, ISO

Quick Details

Type:
Semi-Trailer
Max Payload:
40T
Brand Name:
CH
Place of Origin:
Shandong, China
Model:
MXH9400GFL
Tank Material:
Q235, high-strength carbon steel
Tank Thickness:
4mm
Axle:
13 Ton Fuwa Brand
Suspension:
Mechanical Suspension
Tire Spec.:
11.00R20 12R22.5 12PR
King Pin:
2"(50mm)or3.5"(90mm)
Landing Gear:
JOST Brand Standard 28ton
Volume:
40,000L
Function:
Transport Fuel
OE NO.:
MXH9400GSY
Certification:
CCC, ISO
Product Description

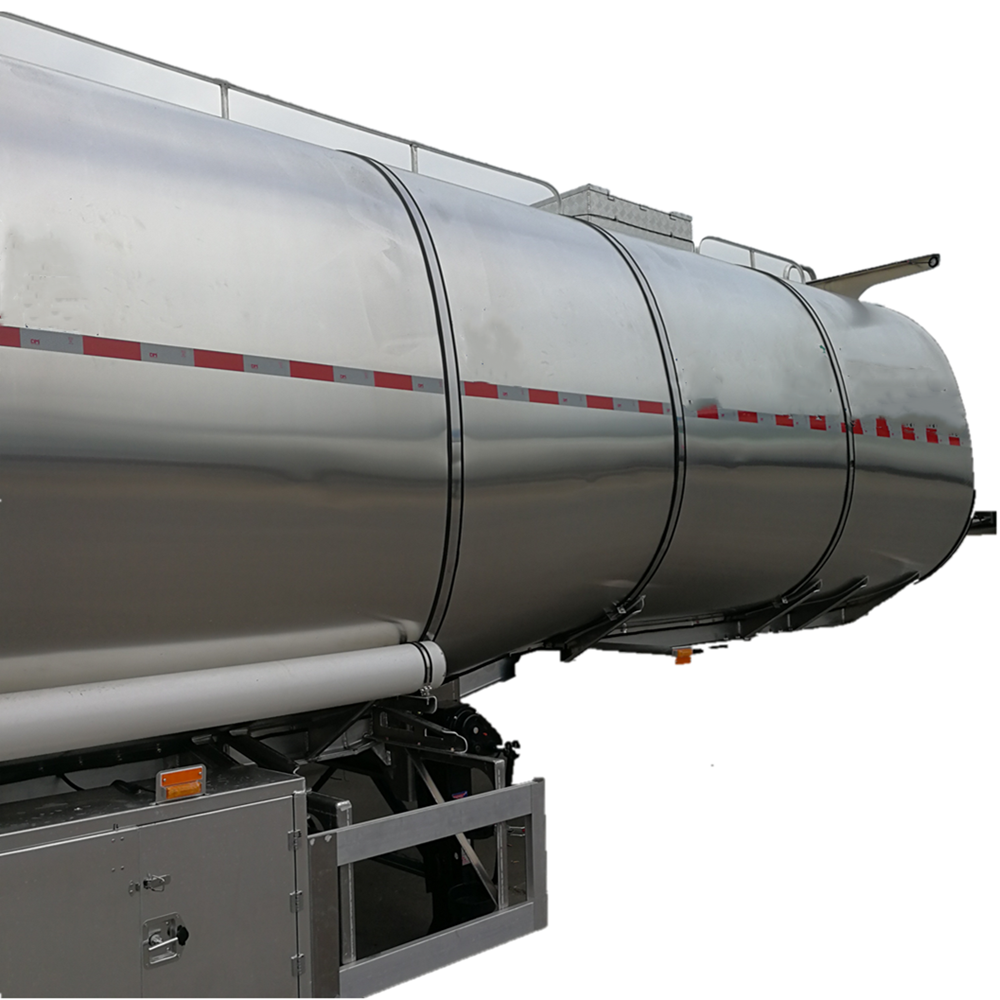

5000 gallon water tank trailer stainless steel tank semi trailer


1.Max safety: top security rail to protect operators,anti-explosion manhole cover options to assure the safety;

2.Light design:high tensile steel material and advanced design to achieve lower weight with high carrying capacity,reduce operation cost;

3.Options: carbon steel,stainless steel,Aluminum tanl,25m3-60m3 capacity available,1-6 compartments,anti-overflow system,bottom loading system.

Dimension(mm)
Overall Dimension
12000*2500*3800mm
Weight (T)
Curb Weight
9.5T
Payload
30.5T
Gross Weight
40T
Tank
Volume
25-60CBM
Shape
Straight
Tank Material
Aluminum
Tank End Plate
Aluminum
Discharge Valve
3" API Valve with dust cover, 2pcs
Discharge Pipe
3" rubber hose with hose carrier, 2pcs, 6m/pc
Manhole
500mm manhole with breath valve, 2pcs
Bottom Valve
4" aluminum valve
Trailer
Technology
Submerged Arc Welding
Discharge Pipe
Each compartment with one 3" ball valve
Master Switches
4" Seamless Steel Tube
Suspension
Mechanical Suspension, Air Suspension, or Optional
Axle
3*13T, FUWA Brand
Landing Gear
Standard 28T
Main Beam
High-strength Steel, yield strength 700MPa, Upper 16mm, Bottom 18mm,  medium 10mm
Leaf Spring
10/10/10 spring, width 90mm, thickness 13mm
Tire
12R22.5
King Pin
3.5" or 90mm
Accessory
1 Tool Box
ABS
Optional
Brake System
6 stes brake chamber
Electric System
24V,  One set-6 core Standard Cable
Painting
Sand balsting, prime coating, surface painting,color opitional, wax polishing
Shipment
Ro-ro Shipment or Framework
