Quick Details
-
Feed Mechanism:
-
Drop Feed
-
Place of Origin:
-
China
-
Brand Name:
-
LVBU
-
Power:
-
0.75KW
-
Overall Dimensions:
-
124*120*1800CM
-
Weight (KG):
-
230 KG
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
15mm
-
Stitch Length:
-
1-12.7MM
-
Feed Mechanism:
-
Drop Feed
-
Place of Origin:
-
China
-
Brand Name:
-
LVBU
-
Power:
-
0.75KW
-
Overall Dimensions:
-
124*120*1800CM
-
Weight (KG):
-
230 KG
Product Description

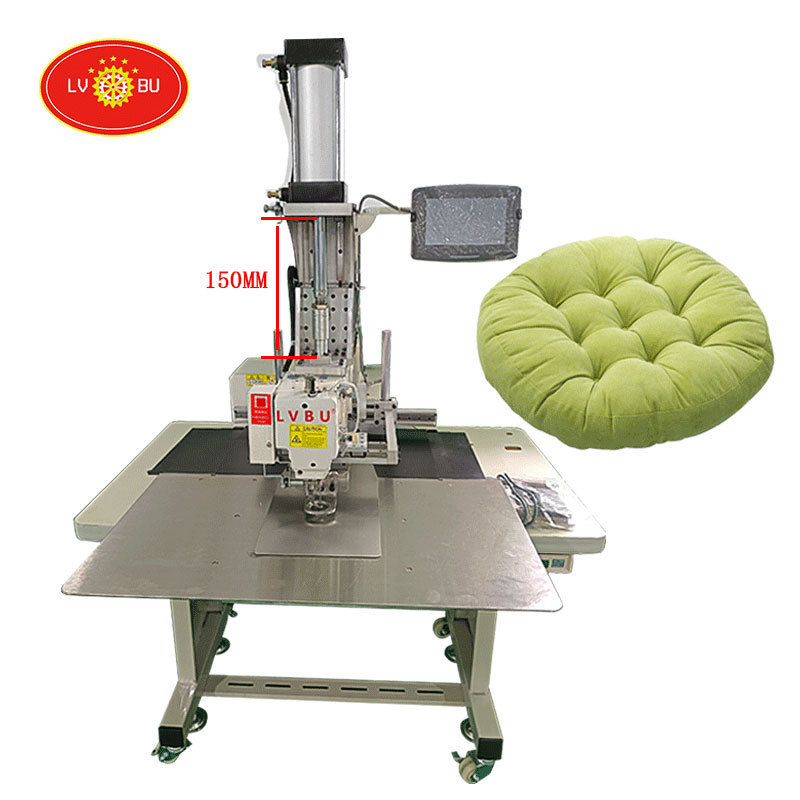

Automatic Cushion Pattern Sewing Machine Pillow Stitching Machine
Functional features.
1. Programming business pattern automatic sewing automatic wire cutting
2.10 national languages menu display Chinese/English/Vietnamese/Korean /Burmese/Turkish/Japanese/Italian
Portuguese/Spanish
3. Suitable for fixed round hole decoration sewing of thick materials such as cushion, pillow, dog kennel and pillow
4. Simple operation, no need for skilled workers.
2.10 national languages menu display Chinese/English/Vietnamese/Korean /Burmese/Turkish/Japanese/Italian
Portuguese/Spanish
3. Suitable for fixed round hole decoration sewing of thick materials such as cushion, pillow, dog kennel and pillow
4. Simple operation, no need for skilled workers.
Details Images
Cylinder and linear guide lift machine head 150mm
Straight guide slide left and right
Automatic winding, automatic winding stop
No. 1 stainless steel pressing mould
No. 2 manual rotation machine spindle needle and hook
Dahao brand master box
10 national languages menu display Chinese/English/Vietnamese/Korean /Burmese/Turkish/Japanese/Italian
/Portuguese/Spanish
Product Paramenters
|
Machine name
|
Automatic Cushion Pattern Sewing Machine Pillow Stitching Machine
|
|
Model
|
LVBU-F3020
|
|
Higher level
|
150mm
|
|
Max. Sewing Speed
|
2,700 sti/min
|
|
Stitch Length
|
0.1～12.7mm
|
|
Maximum number of needles
|
8000 pins (1 program)
|
|
Storage Pattern
|
Internal memory and USB
|
|
Needles
|
DP×17
|
|
Presser foot lifting method
|
Pneumatic type
|
|
Presser foot up volume
|
Maximum 30mm
|
|
Intermittent presser foot lift volume
|
22mm
|
|
Intermittent presser foot travel
|
2 to 4.5mm, 4.5 to 10mm or 0 (3mm at the factory)
|
|
Mada
|
AC servo motor 750W
|
|
Line Voltage
|
Single-phase 220V, 3-phase 220V/380V/400V 500VA
|
|
Package size
|
1240mm*1200mm*1800mm 230kg
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
