Quick Details
-
Model Number:
-
DS49-T
-
OS system:
-
Android 6.0
-
Chipest:
-
Rockchip RK3288 Quad-core
-
RAM:
-
2G NAND-Flash 8GB
-
Touch Technology:
-
Infrared Sensor or Capacitive
-
Touch Points:
-
10 Points
-
Interface:
-
Power*1,USB*1,RJ45*1
-
Housing Material:
-
Aluminum frame+tempered glass+metal
-
Life time:
-
30,000 hrs(typ.)
-
Accessary:
-
Antenna*1,Remote Control*1,Power Cord*1
-
product name:
-
Standing Advertising Screen Big Size Lobby Information Display Kiosk
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Video technical support, Free spare parts
-
Type:
-
TFT
-
Brightness:
-
350cd/㎡ (typ.)
-
Viewing Angle:
-
178°(H)/178°(V)
-
Response Time:
-
8ms(typ.)
-
Input Voltage:
-
100-240V,50-60 Hz
-
Pixel Pitch:
-
1920*1080/3840*2160
-
Contrast Ratio:
-
1200:1 (typ.)
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
HEYMI
-
Place of Origin:
-
China (Mainland)
-
Model Number:
-
DS49-T
-
OS system:
-
Android 6.0
-
Chipest:
-
Rockchip RK3288 Quad-core
-
RAM:
-
2G NAND-Flash 8GB
-
Touch Technology:
-
Infrared Sensor or Capacitive
-
Touch Points:
-
10 Points
-
Interface:
-
Power*1,USB*1,RJ45*1
-
Housing Material:
-
Aluminum frame+tempered glass+metal
-
Life time:
-
30,000 hrs(typ.)
-
Accessary:
-
Antenna*1,Remote Control*1,Power Cord*1
-
product name:
-
Standing Advertising Screen Big Size Lobby Information Display Kiosk
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Video technical support, Free spare parts
-
Type:
-
TFT
-
Brightness:
-
350cd/㎡ (typ.)
-
Viewing Angle:
-
178°(H)/178°(V)
-
Response Time:
-
8ms(typ.)
-
Input Voltage:
-
100-240V,50-60 Hz
-
Pixel Pitch:
-
1920*1080/3840*2160
-
Contrast Ratio:
-
1200:1 (typ.)
Products Description
|

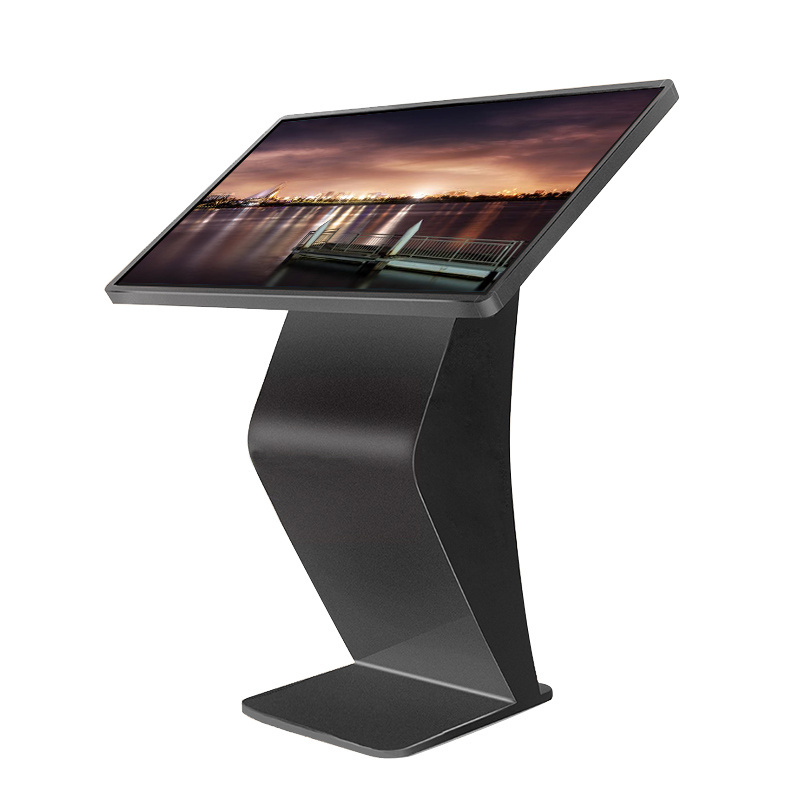

K Shape Digital Signage--Android Wi- Fi with Touch
|
|
|
|
|
||||
|
Size
|
32"
|
43"
|
49"
|
55"
|
||||
|
OS Functions
|
|
|
|
|
||||
|
OS system
|
Android 6.0
|
|
|
|
||||
|
Chipest
|
Rockchip RK3288 Quad-core processor
|
|
|
|
||||
|
RAM
|
2G NAND-Flash 8GB
|
|
|
|
||||
|
Decoding resolution
|
Up to 1080P
|
|
|
|
||||
|
Play mode
|
cycle,insert and timing
|
|
|
|
||||
|
Networking support
|
Ethernet,Wi-Fi
|
|
|
|
||||
|
Video format
|
WMV,AVI,FLV,RM,RMVB,MPEG4,MPEG,TS,MP4 etc
|
|
|
|
||||
|
Picture format
|
BMP,JPG,JPEG,PNG,GIF.
|
|
|
|
||||
|
RTC timing clock
|
support
|
|
|
|
||||
|
Timing on & off
|
support
|
|
|
|
||||
|
OS update
|
USB update
|
|
|
|
||||
|
OSD
|
English/optional
|
|
|
|
||||
|
Multi-point Touch
|
|
|
|
|
||||
|
Touch Technology
|
Infrared Sensor
|
|
|
|
||||
|
Touch Points
|
10 Points
|
|
|
|
||||
|
Picture/Display
|
|
|
|
|
||||
|
Panel
|
32"
|
43"
|
49"
|
55"
|
||||
|
Max resolution
|
1920*1080 (pixels)
|
|
|
|
||||
|
Brightness (type)/(min)
|
350cd/㎡ (typ.)
|
|
|
|
||||
|
Ratio (type)/(min)
|
1200:1 (typ.)
|
1200:1 (typ.)
|
1200:1 (typ.)
|
4000:1 (typ.)
|
||||
|
Chroma
|
16.7M
|
|
|
|
||||
|
Response time (ms)
|
8ms(typ.)
|
|
|
|
||||
|
Viewing are
|
698.4×392.85mm
|
941.184×529.416mm
|
1073.8×604mm
|
1209.6×680.4mm
|
||||
|
Viewing angle
|
178°(H）/178°(V）
|
|
|
|
||||
|
Life time(type)/(min)
|
30,000 hrs(typ.)
|
|
|
|
||||
|
Environment
|
|
|
|
|
||||
|
Working temperature
|
0℃~40℃
|
|
|
|
||||
|
Working humidity
|
20%~85% RH/n-Condensing
|
|
|
|
||||
|
Storage temperature
|
-10℃~60℃
|
|
|
|
||||
|
Storage humidity
|
10%~60% RH/n-Condensing
|
|
|
|
||||
|
Max.display hour/day
|
18 hours
|
|
|
|
||||
|
Power
|
|
|
|
|
||||
|
Power supply
|
100-240V,50-60 Hz
|
|
|
|
||||
|
Power consumption (Watt)
|
≤80W
|
≤80W
|
≤115W
|
≤140W
|
||||
|
Audio frequency output
|
left and right channels Speaker 5W*2
|
|
|
|
||||
|
Connectivity (I/O)
|
|
|
|
|
||||
|
Power connection
|
*1
|
|
|
|
||||
|
HDMI
|
*1
|
|
|
|
||||
|
RJ45
|
*1
|
|
|
|
||||
|
USB 2.0
|
*2
|
|
|
|
||||
|
ID and Material
|
|
|
|
|
||||
|
Housing Material
|
Aluminum frame+tempered glass+metal
|
|
|
|
||||
|
Housing colour
|
Full Black/Black+silver border
|
|
|
|
||||
|
Weight
|
|
|
|
|
||||
|
Net weight
|
45kgs
|
55kgs
|
60kgs
|
80kgs
|
||||
|
Gross weight
|
50kgs
|
60kgs
|
65kgs
|
85kgs
|
||||
|
Body dimension
|
|
|
|
|
||||
|
Accessary
|
|
|
|
|
||||
|
Antenna
|
*1
|
|
|
|
||||
|
Remote Control
|
*1
|
|
|
|
||||
|
Power Cord
|
*1
|
|
|
|
||||
|
Stand
|
*1
|
|
|
|
||||
About Us
FAQ
1.Q: How does your factory do regarding quality control?
A: All our products have 100% full inspection before shipment, strictly in accordance with the standard quality system(attached you our ISO certificate IAF & CNAS and we assure 100% full inspection when producing.
2.Q: What is your after-sale service?
A: POLING makes maintenance its best asset. Our team acts at two levels:
1)Content: We remotely diagnose the malfunction and correct it in accordance with the ALS.
2)Equipment: SLA of 4 hours for software failures and 24 to 72 hours for hardware failures that require the exchange of hardware through the intervention of a technician.
3.Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
4.Q: When will you make the delivery?
A: We can make the delivery within 15 working days according to the size and quantities upon your order.
5.Q:what brand of screen are you using?
A:we are using Samsung,LG, AUO and CHIMEI screen.
