Quick Details
-
Type:
-
Metal Check Valves
Quick Details
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
H41
-
Brand Name:
-
BaoMing
-
Type:
-
Metal Check Valves
|
TYPE
|

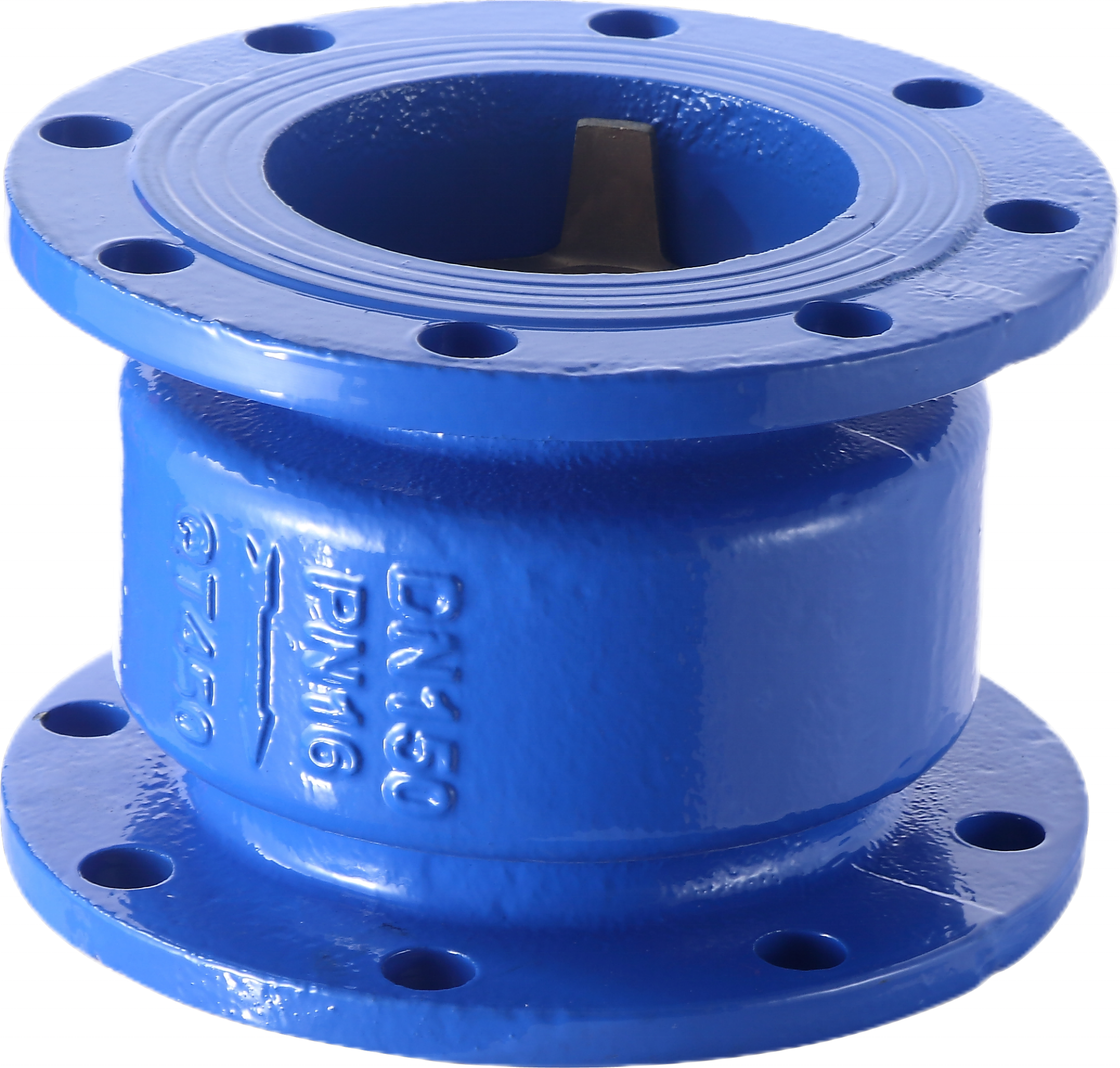

H41X Flange Silent Check Valve
|
|
|
|
|||
|
Material
|
Ductile Iron
|
|
|
|
|||
|
SIZE
|
DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 or Customized Size
|
|
|
|
|||
|
Applicable medium
|
Water
|
|
|
|
|||
Main Performance Parameters
|
TYPE
|
Nominal Pressure PN(MPa）
|
Shell Test Pressure（MPa)
|
Sealing Test Pressure（MPa)
|
Operating Temperatures(℃）
|
Applicable Medium
|
|
H41X-10
|
1.0
|
1.5
|
1.1
|
≤80
|
Water, oil, etc.
|
|
H41X-16
|
1.6
|
2.4
|
1.76
|
≤80
|
|
Main parts materials
|
TYPE
|
Valve Body
|
Valve Flap
|
Tappet
|
Sprung
|
|
H41-10
|
QT450
|
QT450 |
2R13
|
50CR
|
|
H41-16
|
|
|
|
|
Main external dimensions
|
Nominal Through Diameter DN(mm）
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
Size（mm）/L
|
100
|
110
|
130
|
145
|
165
|
180
|
200
|
220
|
240
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Can I get free samples?
A: NO, you need to bear their own delivery costs and samples costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs
incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
