Quick Details
-
Range of Spindle Speed(r.p.m):
-
10 - 1400 r.p.m
-
Width of bed (mm):
-
400
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
7.5
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Classic
-
Model Number:
-

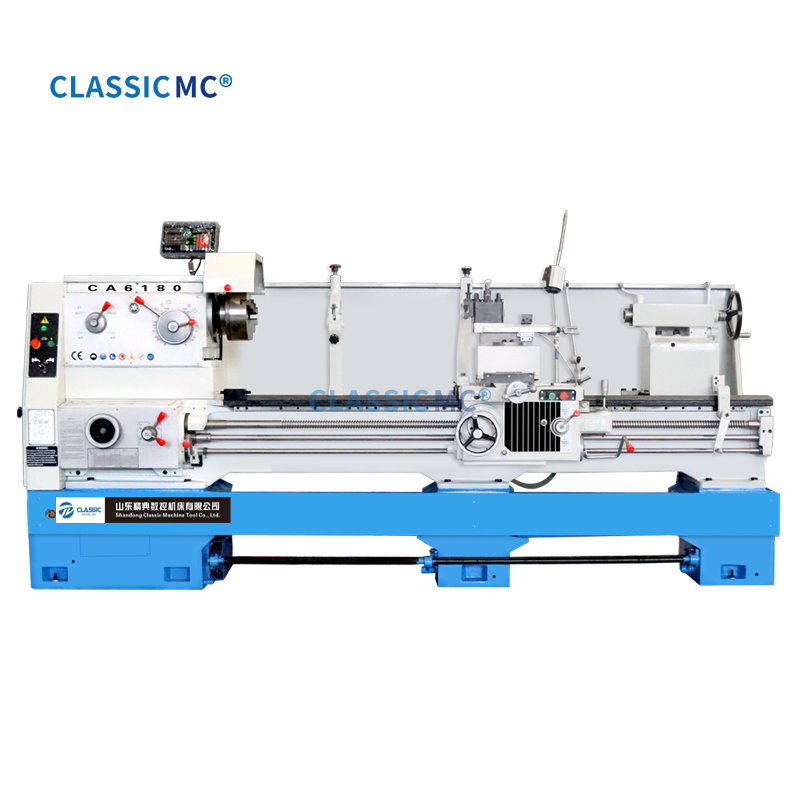

CA6180
-
Voltage:
-
220V/380V/110V
-
Dimension(L*W*H):
-
2440*1140*1750mm
-
Weight (KG):
-
2520 KG
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
24 months
-
Name:
-
Lathe
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Machine Type:
-
Horizontal Metal Turning Lathe Machine
-
Product Name:
-
Manual Metal Lathe Machine
-
Keyword:
-
METAL PROCESSING HORIZONTAL LATHE MACHINE
-
Product type:
-
Economical Lathe
-
Automatic Grade:
-
Normal
-
Function:
-
Machining Metal
-
Key words:
-
Metal Universal Lathe Machine
-
Certification:
-
CE / ISO
Quick Details
-
Max. Length of Workpiece (mm):
-
750
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
10 - 1400 r.p.m
-
Width of bed (mm):
-
400
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
7.5
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Classic
-
Model Number:
-
CA6180
-
Voltage:
-
220V/380V/110V
-
Dimension(L*W*H):
-
2440*1140*1750mm
-
Weight (KG):
-
2520 KG
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
24 months
-
Name:
-
Lathe
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Machine Type:
-
Horizontal Metal Turning Lathe Machine
-
Product Name:
-
Manual Metal Lathe Machine
-
Keyword:
-
METAL PROCESSING HORIZONTAL LATHE MACHINE
-
Product type:
-
Economical Lathe
-
Automatic Grade:
-
Normal
-
Function:
-
Machining Metal
-
Key words:
-
Metal Universal Lathe Machine
-
Certification:
-
CE / ISO
Product Description
Application:
1.CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2.The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable..
3.Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle
operation,humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5.Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
1.CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2.The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable..
3.Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle
operation,humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5.Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
Product main technical specifications:
|
Type
|
CA6140
CA6240 |
CA6150
CA6250 |
CA6161
CA6261 |
CA6166
CA6266 |
CA6180
CA6280 |
|||||
|
Max. swing over bed
|
400mm
|
500mm
|
610mm
|
660mm
|
800mm
|
|||||
|
Max. swing over carriage
|
210mm
|
300mm
|
370mm
|
400mm
|
540mm
|
|||||
|
Max. swing in gap
|
630mm
|
720mm
|
830mm
|
880mm
|
1020mm
|
|||||
|
Max. effective length in gap
|
210mm
|
|
|
|
|
|||||
|
Max. length of workpiece
|
750/1000/1500/2000/2200/3000/4000mm
|
|
|
|
|
|||||
|
Width of bed
|
400mm
|
|
|
|
|
|||||
|
Section of turning tool
|
25×25 mm
|
|
|
|
|
|||||
|
Main spindle motor
|
7.5kw(10HP)
|
|
|
|
|
|||||
|
Spindle
|
|
|
|
|
|
|||||
|
Spindle speed
|
16--1400rpm(24step)
|
|
|
|
|
|||||
|
Spindle bore
|
52mm (80mm),(105mm)
|
|
|
|
|
|||||
|
Spindle taper
|
No.6(MT6)(Φ90 1:20)[Φ113:20]
|
|
|
|
|
|||||
|
Feed
|
|
|
|
|
|
|||||
|
NO. of feed
|
(64 kinds)(for each)
|
|
|
|
|
|||||
|
Range of metric threads
|
(1-192mm) (44 kinds)
|
|
|
|
|
|||||
|
Range of inch threads
|
(1-24tpi) (21kinds)
|
|
|
|
|
|||||
|
Range of module threads
|
0.25-48 (module 39 kinds)
|
|
|
|
|
|||||
|
Range of diametral pitch threads
|
1-96DP (37 kinds)
|
|
|
|
|
|||||
|
Tailstock
|
|
|
|
|
|
|||||
|
Max. tailstock spindle travel
|
150mm
|
|
|
|
|
|||||
|
Tailstock spindle diameter
|
75mm
|
|
|
|
|
|||||
|
Taper of tailstock spindle centre hole
|
1-96DP (37 kinds)
|
|
|
|
|
|||||
|
Packing dimensions (L*W*H)
|
|
|
|
|
|
|||||
|
Overall dimensions for 750mm
|
2440×1140×1750mm
|
|
|
|
|
|||||
|
Overall dimensions for 1000mm
|
2700×1140×1750mm
|
|
|
|
|
|||||
|
Overall dimensions for 1500mm
|
3200×1140×1750mm
|
|
|
|
|
|||||
|
Overall dimensions for 2000mm
|
3700×1140×1750mm
|
|
|
|
|
|||||
|
Overall dimensions for 2200mm
|
4030×1140×1750mm
|
|
|
|
|
|||||
|
Overall dimensions for 3000mm
|
4800×1140×1750mm
|
|
|
|
|
|||||
|
Overall dimensions for 4000mm
|
5680×1140×1750mm
|
|
|
|
|
|||||
|
Weight (kg)
|
|
|
|
|
|
|||||
|
Overall dimensions for 750mm
|
2100
|
2170
|
2300
|
2400
|
2520
|
|||||
|
Overall dimensions for 1000mm
|
2200
|
2260
|
2380
|
2580
|
2720
|
|||||
|
Overall dimensions for 1500mm
|
2380
|
2450
|
2577
|
2830
|
3000
|
|||||
|
Overall dimensions for 2000mm
|
2750
|
2800
|
3000
|
3050
|
3300
|
|||||
|
Overall dimensions for 2200mm
|
2800
|
3000
|
3150
|
3400
|
3500
|
|||||
|
Overall dimensions for 3000mm
|
3300
|
3500
|
3600
|
4000
|
4220
|
|||||
|
Overall dimensions for 4000mm
|
3500
|
3800
|
3950
|
4600
|
4900
|
|||||
Detailed Images
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
take pictures to you.after we got your balance payment. we will send the machine to you.
2.
What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice. 3.How can I choose the most suitable machines ? A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice. 3.How can I choose the most suitable machines ? A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will
choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
