Quick Details
-
Voltage:
-
3PH 380V/50HZ
-
Dimension(L*W*H):
-
1400x810 x1410mm
-
Weight:
-
360 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Copeland scroll styel
-
Condenser:
-
air cooled high efficient inside screw tube shinizu fin
-
Evaporator:
-
High efficient inside screwed shell and tube type
-
Temperature:
-
outlet 7degree celsius
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Condition:
-
New
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kingfit
-
Voltage:
-
3PH 380V/50HZ
-
Dimension(L*W*H):
-
1400x810 x1410mm
-
Weight:
-
360 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Copeland scroll styel
-
Condenser:
-
air cooled high efficient inside screw tube shinizu fin
-
Evaporator:
-
High efficient inside screwed shell and tube type
-
Temperature:
-
outlet 7degree celsius
-
After Warranty Service:
-
Field maintenance and repair service
Product Description

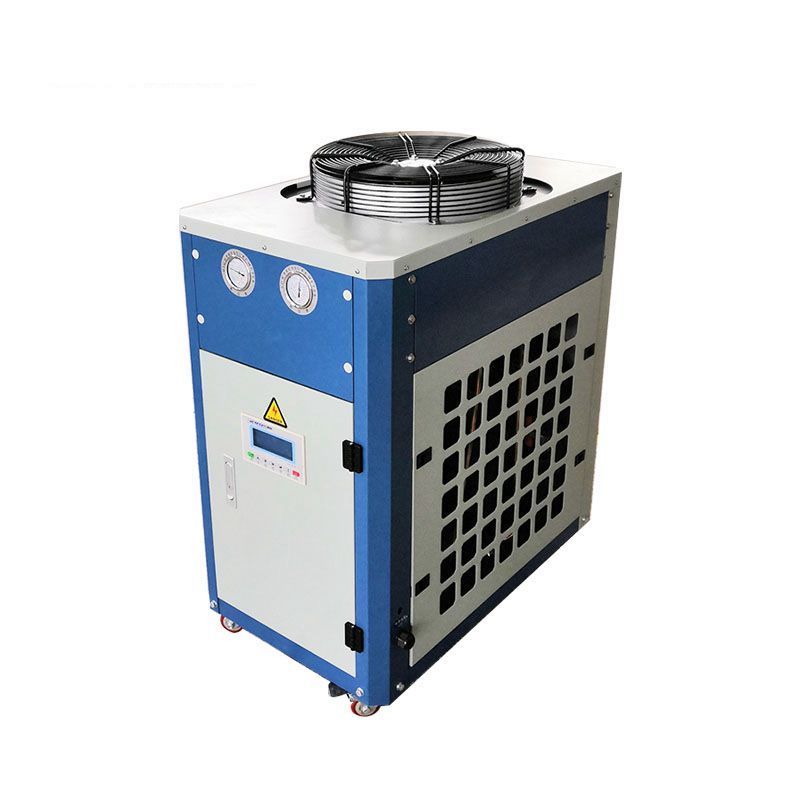

Professional Air & Water Cooled Chiller Manufacturer
Kingfit manufacturers chiller systems including air and water cooled chiller, which are fabricated with globally renowned scroll compressors from Copeland, Schneider electrical components, only the highest quality materials used and that made by workers with the most experience and knowledge in the industry.
Kingfit range of chillers are fully microprocessor based and suitable for industrial processes and production machinery applications from +20℃ up to 7℃ and single chiller has cooling capacity from 6kw to 130kw (2ton to 40ton).
Kingfit specialized in chiller industry for more than 20 years, has independent technical team, the water
chillers designed and manufactured in compliance with superior designing and manufacturing standards.
chillers designed and manufactured in compliance with superior designing and manufacturing standards.
Kingfit water chillers serve the following applications like metal surface finishing (anodizing, electroplating, paint coating), plastic injection, extrusion molding, blowing molding, beverage and milk processing, chemical fermentating, concrete cooling, pharmaceutical etc.
Specification
|
Model
|
QLB6FC
|
QLB8FC
|
QLB12FC
|
QLB25FC
|
QLB40FC
|
|||||
|
Cooling Capacity:
|
5.7kw
|
7.46kw
|
12.7kw
|
25.4kw
|
39.2kw
|
|||||
|
COP
|
3.08
|
3.04
|
3.11
|
3.11
|
3.21
|
|||||
|
Input power
|
1.85kw
|
2.21kw
|
3.71kw
|
7.42kw
|
10.8kw
|
|||||
|
Compressor:
|
Panasonic
|
Copeland
|
|
|
|
|||||
|
Condenser:
|
High efficient Fin + Copper coil type
|
|
|
|
|
|||||
|
Evaporator:
|
Tank + copper coil.
|
|
|
High efficient shell & tube
|
|
|||||
|
Chilled water flow rate:
|
16.3L/min
|
21.3L/min
|
36.4L/min
|
72.8L/min
|
112L/min
|
|||||
|
|
|
|
|
|
|
|||||
|
Model
|
QLB50FC
|
QLB60FC
|
QLB80FC
|
QLB100FC
|
QLB130FC
|
|||||
|
Cooling Capacity:
|
52.5kw
|
58.8kw
|
78.4kw
|
94.2kw
|
125.6kw
|
|||||
|
COP
|
3.21
|
3.32
|
3.25
|
3.31
|
3.34
|
|||||
|
Input power
|
14.88kw
|
16.2kw
|
21.6kw
|
25.5kw
|
34kw
|
|||||
|
Compressor:
|
Copeland
|
|
|
|
|
|||||
|
Condenser:
|
High efficient Fin + Copper coil type
|
|
|
|
|
|||||
|
Evaporator:
|
High efficient shell & tube
|
|
|
|
|
|||||
|
Chilled water flow rate:
|
150L/min
|
169L/min
|
225L/min
|
270L/min
|
360L/min
|
|||||
|
Refrigerant:R410A.
|
|
|
|
|
|
|||||
|
Chilled water outlet temperature at 7℃
|
|
|
|
|
|
|||||
|
Ambient temperature below:45℃
|
|
|
|
|
|
|||||
Solutions
Plastic injection cooling, Die cooling, mould cooling, PVC PPR PP Extruding cooling purpose.
Food & beverage processing, Metal surface finishing electroplating etc.
Why Choose Us
Experienced In Chiller
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Full Solutions Provider
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely without worries about the after-sales service.
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely without worries about the after-sales service.
