Quick Details
-
Brand Name:
-
KingStar
-
Model Number:
-
KS-EE2520
-
Initial Permeability:
-
2300
-
Flux Density:
-
550
-
Coercive Force:
-
9.5
-
Power Loss(25KHz 200mT):
-
60-120
-
Power Loss(100KHz 200mT):
-
410-600
-
Resistivity:
-
6.5
-
Curie Temperature:
-
230
-
Density:
-
4800kg/m3
Quick Details
-
Tolerance:
-
±1%
-
Grade:
-
Mn Zn Ferrite
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KingStar
-
Model Number:
-
KS-EE2520
-
Initial Permeability:
-
2300
-
Flux Density:
-
550
-
Coercive Force:
-
9.5
-
Power Loss(25KHz 200mT):
-
60-120
-
Power Loss(100KHz 200mT):
-
410-600
-
Resistivity:
-
6.5
-
Curie Temperature:
-
230
-
Density:
-
4800kg/m3
Product Description

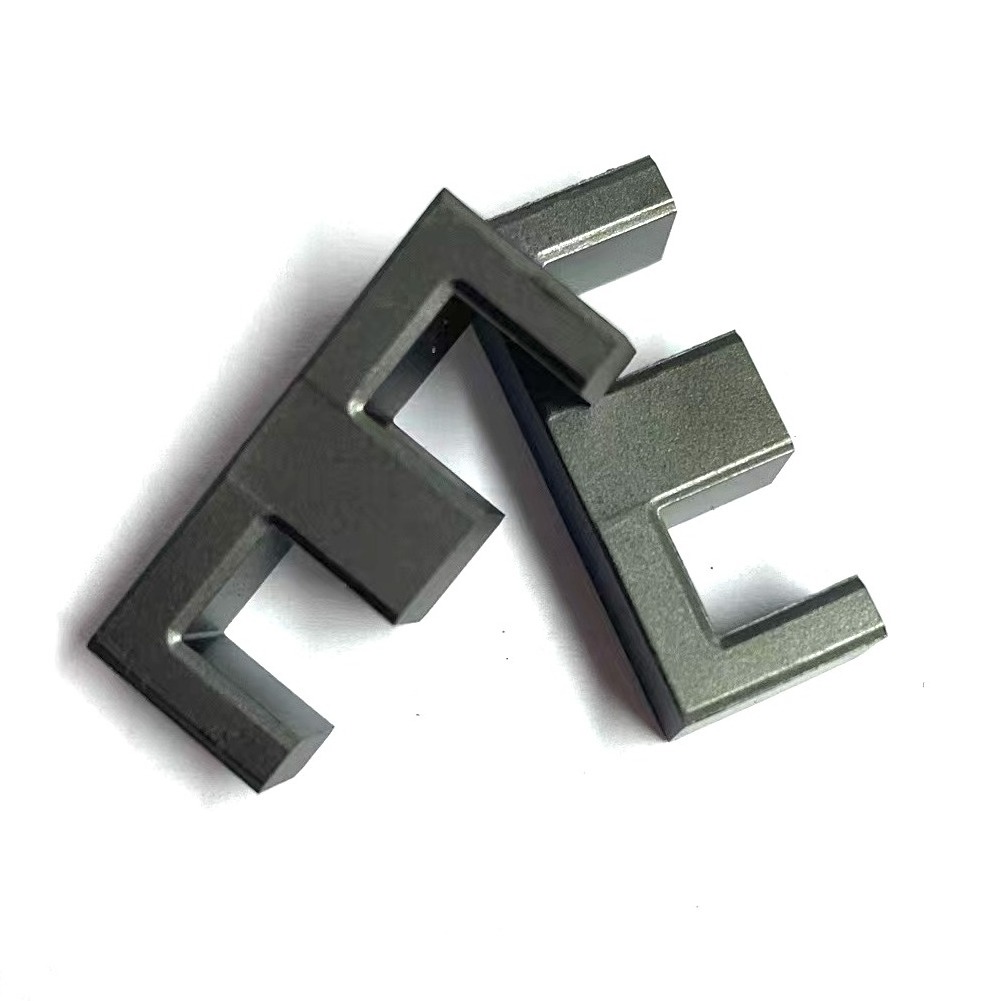

Customized EE2520 Ferrite Core For Broadband Transformer, Switching Power Supply Transformer, Coils
MnZn Round Ferrite for wireless charging in different shapes and sizes, customization is welcome.
Corresponding coil can be wired to the nested ferrite core for laser radar
|
Material
|
MnZn RM40
|
|
Size
|
EE2520
|
KingStar Electronics has been in the wireless charging field for many years, supplying ferrite sheets, coils, and modules around the world, especially to Korea, for Samsung Electronics, which include the TX end ferrite used in Samsung S6, S7, S8, Note 5, S10, as well as its smart watches, such as Solis TX ferrite, Gear Pulse TX ferrite.
We are also working closely with some
well-know companies in
China in the high-power wireless charging area, and take the lead in R&D of high-power wireless charging for home appliance, e-bicycles and e-cars.
Our goal is to making power usage is as simple at WiFi.
Most of the magnetic ferrite used in wireless charging is MnZn ferrite, while for IoT and other high frequency application, we supply customers with NiZn ferrite.
Wireless Charging Ferrite Sheet & Coil Application
Nowadays, wireless charging can be seen at many areas of our life. We are confident that in the near future, wireless charging will be as common & simple as WiFi, and our goal is make that era come true earlier.
With over a decade of specialized and dedicated work in the wireless charging field, we are proud of our strong R&D ability and quality products with good customer satisfaction. We would also provide you with the best products and solutions.
Some Basic Data on Material:
MnZn Magnetic Ferrite Sheet Characteristics
M nZn Magnetic Ferrite Material Curve
Packing &
Shipping
Given its fragile property, all ferrite sheets are properly packed in PE foam boxes, with outer being the carton boxes. While for bulk cargo, they will be packed and protected on a pallet. Cargos can be delivered to you fast and safely by express or by air, or by sea for bulk orders.
