Quick Details
-
Brand Name:
-
DB
-
Voltage:
-
380V/3P
-
Dimension(L*W*H):
-
3400x1200mmx1500mm
-
Weight:
-
2500kgs
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Rotary die cutting speed:
-
128m/m
-
Semi rotary die cutting speed:
-
65m/m
-
Die cutting precision:
-
+- 0.1mm
-
Web guide system:
-
ST (ITALY)
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
120 m/min
-
Max. workable width:
-
470mm
-
Brand Name:
-
DB
-
Voltage:
-
380V/3P
-
Dimension(L*W*H):
-
3400x1200mmx1500mm
-
Weight:
-
2500kgs
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Rotary die cutting speed:
-
128m/m
-
Semi rotary die cutting speed:
-
65m/m
-
Die cutting precision:
-
+- 0.1mm
-
Web guide system:
-
ST (ITALY)
-
Certification:
-
CE/ISO9001
Machine Show
Specification
|
Max. Web Width |
370mm (14.567") |
|
Max. Unwind Diameter |
800mm (31.5") |
|
Max. Rewind Diameter |
800mm (31.5") |
|
Max. Die Cutting Width |
370mm (14.567") |
|
Full Rotary Max. Mechanical Speed |
120m/min |
|
Intermittend Die Cutting Speed |
60m/min |
|
Adhesive Die Cutting Precision Accuracy (cut 1 st layer) |
±0.15mm |
|
Die cutting Precision Accuracy (cut totally) |
±0.25mm |
|
Die cutting Positioning Method |
Color sensor |
|
Optional Magnetic Cylinder |
60T ~ 204T |
|
Standard Magnetic Cylinder |
140T |
|
Power Consumption |
19 ~ 21KW |
|
Air Supply (bar) |
0.6 kpa |
|
Rating Voltage |
380V 50Hz |
|
Roting Current |
50A |
|
Machine Weight |
About 3200Kgs |
Electrical Components
|
- Automatic Stop on Roll End |
|
- Electronic Counter |
|
- Pre-set Slowdown |
|
- Electronic Web Guiding System and Ultrasonic Web Guide Sensor |
|
- Servo Driven Infeed Unit |
|
- Lamination Unit |
|
- Automatic / Manual Die Cutting Registration System |
|
- 1 Semi-rotary Die Cutting Station (it can be exchangeable between semi-rotary and full rotary die cutting) |
|
◊ 1* 140T Magnetic Cylinder |
|
- Inovance Touch Panel |
|
- 3 Rewinding Unit |
|
◊ up automatic turret rewinding unit with 2 on/off switch airshafts (with standard dia. 3inch, can change the airshaft dia. to 1inch or 1.5inch) |
|
◊ down rewinding unit with on/off switch airshaft (with standard dia. 3inch) |
Machine Features

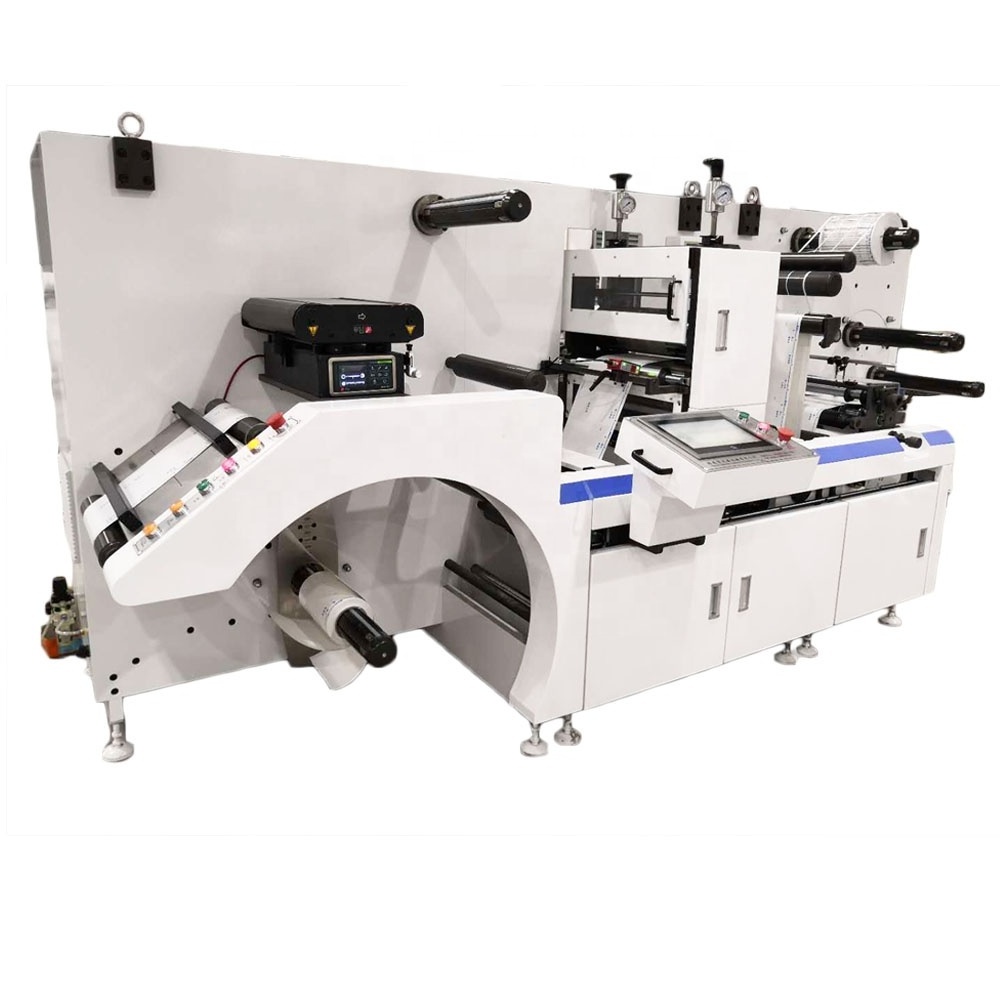

The DB GS370 Type Label Die Cutting Machine is aimed at the medium to long production runs and utilizes a single rotary die cutting station. The large 800mm (31.5″) unwind with taper tension control and electronic brake keeps roll changes to a minimum.
The DB GS 370 Label Die Cutting Machine compact size and short web path keeps wastage to a minimum, the fully adjustable silicone covered nip drive roller helps to keep down time to a minimum as labels cannot attach themselves to the roller. The DB GS370 has accurate tension control through the use of an electronic unwind brake with taper tension control and the rewind is controlled through an electronic clutch. A splice table makes web splices both simple and quick. Quick change air mandrels for the product rewind ensures that cores a gripped firmly and a production speed of 120m/minute.
- Web width 370mm (14.567″)
Standard Features
- Unwind
- Maximum unwind diameter: 8 00mm ( 31.5 ″).
- 76mm (3″) air mandrel.
- Merobel electromagnetic particle brake.
- Taper tension control – No roll-followers or external sensors to be adjusted or maintained.
- Splice Table - Makes web splicing easier and quicker.
- Pneumatic web clamps.
- Die Station
- 153 – 612 die repeats.
- 670 Max Full Rotary
- hardened anvil – 120T
- Magnetic Cylinder – 210T –repeat
- Gearing – 1/8 cp, 20 degree pressure angle.
- A driven capstan roller with adjustable tension control ensures reliable matrix stripping, enabling high speed running even if the matrix rewind becomes unstable.
- Matrix / Waste Rewind – 600mm diameter with fully adjustable tension control.
- 76mm (3″) mechanical mandrel for waste rewind.
- Draw Head
- Silicone nip roller against a driven draw roller.
- The silicone nip roller does not allow labels to attach themselves to it reducing down time.
- Fully adjustable to allow for different label stocks.
- T he draw roller is driven by a 1.8 Kw servo motor.
- Rewind
- 1 Product rewind.
- Maximum rewind diameter: 6 0 0mm
- 76mm (3″) quick change air mandrel.
- Label in / labels out rewinding.
- Electromagnetic particle clutch. 5 KG
- Intermittend Die Cutting Speed - 60 meters/Min
- Conforms to CE regulations and all circuits use dual channel safety switches, which are continuously monitored using a certified safety relay.
