Quick Details
-
Description:
-
Unipolar Hall Sensor, Hall sensor
-
Model Number:
-
BL-HE-ST2102
-
Type:
-
Switch DIP, Integrated Circuits
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBeelee
-
Theory:
-
A1120LUA
-
Output:
-
Original manufacturer
-
Operating voltage:
-
2.5 V~24 V
-
Operating supply current:
-
1-3.5mA
-
Power on Time:
-
35-50uS
-
Off-state leakage current:
-
1uA
-
FET on-resistance:
-
20Ω
-
Output delay time:
-
20-30KHz
-
Output rise time:
-
13-25us
-
Output Resistance:
-
0.5us
-
Output fall time:
-
0.2us
Quick Details
-
Usage:
-
magnetic sensing
-
Series:
-
hall sensor
-
Mounting Type:
-
hall current sensor
-
Description:
-
Unipolar Hall Sensor, Hall sensor
-
Model Number:
-
BL-HE-ST2102
-
Type:
-
Switch DIP, Integrated Circuits
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBeelee
-
Theory:
-
A1120LUA
-
Output:
-
Original manufacturer
-
Operating voltage:
-
2.5 V~24 V
-
Operating supply current:
-
1-3.5mA
-
Power on Time:
-
35-50uS
-
Off-state leakage current:
-
1uA
-
FET on-resistance:
-
20Ω
-
Output delay time:
-
20-30KHz
-
Output rise time:
-
13-25us
-
Output Resistance:
-
0.5us
-
Output fall time:
-
0.2us

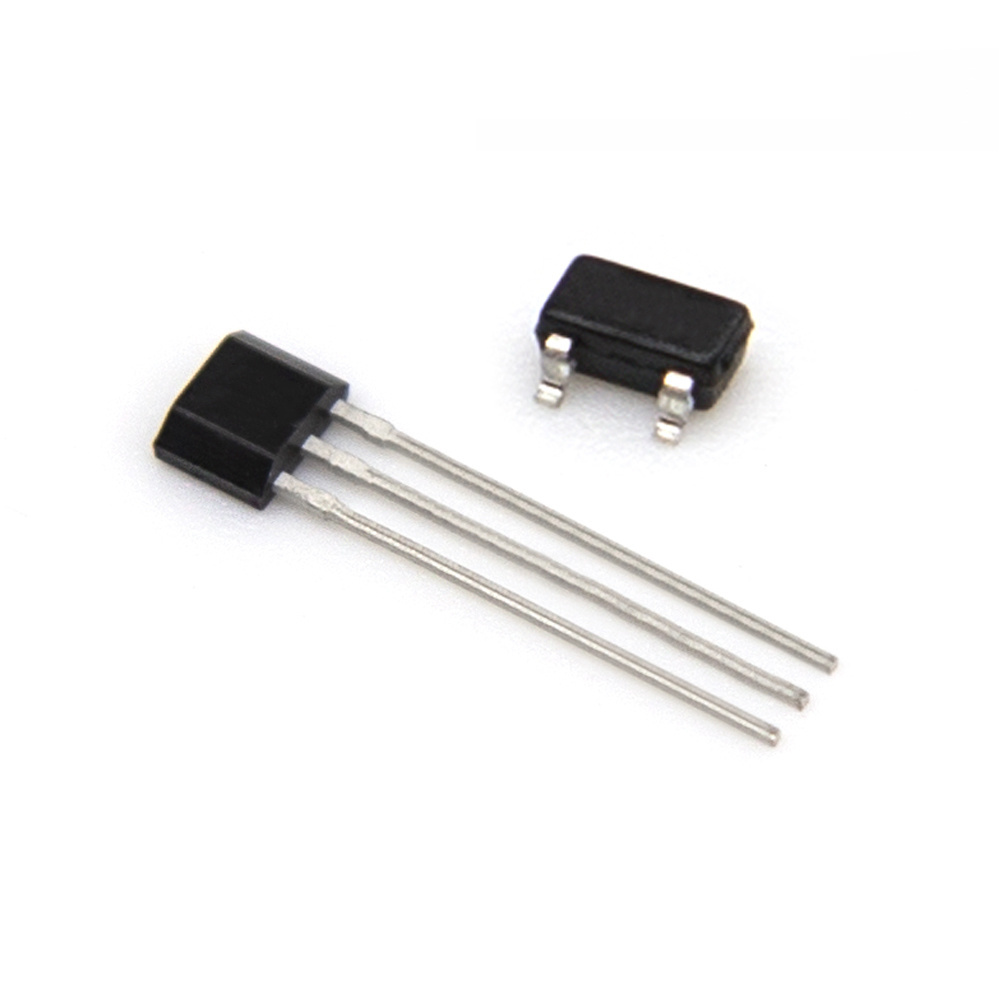

01.The BL-HE-ST2102 device is a chopper-stabilized Hall Effect 02.Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
02.Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over molding, temperature dependencies, and thermal stress. Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a open-collector output to sink up to 20mA. The output turns low with the magnetic South Pole on the branded side of the package and turns high if the magnetic field is removed (for UA package).
03.An onboard regulator permits with supply voltages of 2.5V to 24V which makes the device suitable for a wide range of industrial applications
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||||||
| VDD | Operating voltage | 2.5 | -- | 24 | V | ||||||
| IDD | Operating supply current | VDD=2.5V to 24 V | 1 | 1.5 | 3.5 | mA | |||||
| ton | Power-on time | -- | 35 | 50 | µS | ||||||
| Ilkg | Off-state leakage current | Output Hi-Z | -- | -- | 1 | µA | |||||
| rDS(on) | FET on-resistance | VDD=5V, IO=10mA, TA=25℃ | -- | 20 | -- | Ω | |||||
| td | Output delay time | B=0Gs to BOP + 100Gs | -- | 13 | 25 | µS | |||||
| tr | Output rise time | R1=1Kohm Co=50pF | -- | -- | 0.5 | µS | |||||
| tf | Output fall time | R1=1Kohm Co=50pF | -- | -- | 0.2 | µS | |||||
| Magnetic Characteristics | |||||||||||
| fBW | Bandwidth | 20 | -- | -- | kHz | ||||||
| BOP | Operated point | TO-92S Package | 25 | +40 | 65 | Gs | |||||
| BRP | Release point | 10 | +25 | 40 | Gs | ||||||
| BHYS | Hysteresis | 7 | 15 | 23 | Gs | ||||||
| BOP | Operated point | SOT23 Package | 25 | +40 | 65 | Gs | |||||
| BRP | Release point | 10 | +25 | 40 | Gs | ||||||
| BHYS | Hysteresis | 7 | 15 | 23 | Gs | ||||||
| BOP | Operated point | SOT23-3 Package | -65 | -40 | -25 | Gs | |||||
| BRP | Release point | -40 | -25 | -10 | Gs | ||||||
| BHYS | Hysteresis | -23 | -15 | -7 | Gs | ||||||
