Ductile Iron Flanged Vertical Lift Spring Non Return Silent Check Valve Oem Pn10/16

Ductile Iron Flanged Vertical Lift Spring Non Return Silent Check Valve Oem Pn10/16

FOB Reference Price: Get Latest Price

≥1 Sets

US $20

≥5 Sets

US $16

≥10 Sets

US $14

≥100 Sets

US $13

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: hc41x

Brand Name:: LIKV

Standard or Nonstandard:: Standard

Product name:: cast iron silencing check valve

Body Material:: cast iron/ ductile iron

Spring Material:: SS304

Connection:: Flange

MOQ:: 1PC

Working pressure:: PN16

Size:: DN15-600mm

Quick Details

Port Size:: DN15-DN600

Warranty:: 1 year

Place of Origin:: Tianjin, China

Model Number:: hc41x

Brand Name:: LIKV

Standard or Nonstandard:: Standard

Product name:: cast iron silencing check valve

Body Material:: cast iron/ ductile iron

Spring Material:: SS304

Connection:: Flange

MOQ:: 1PC

Working pressure:: PN16

Size:: DN15-600mm

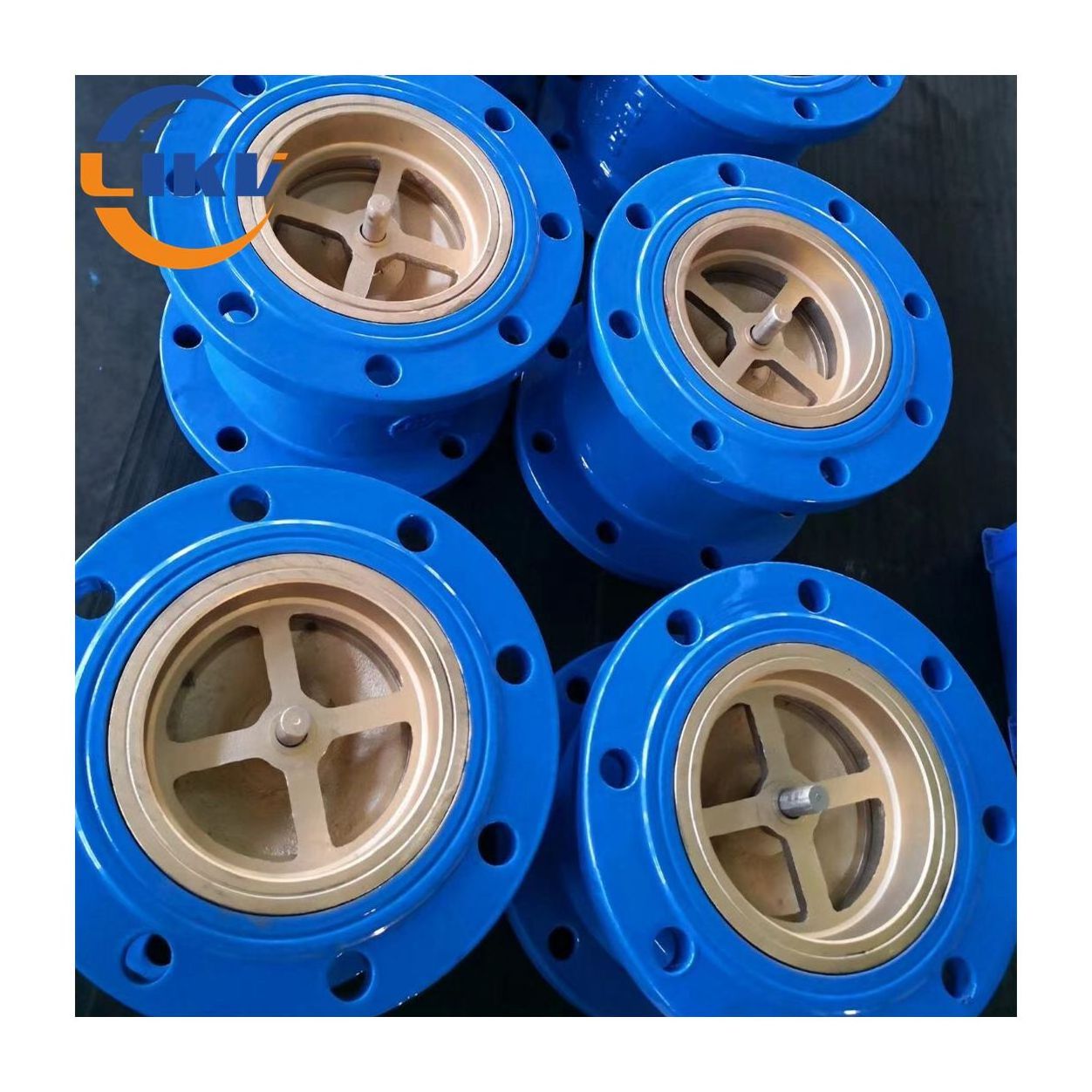

Ductile Iron Flanged Vertical Lift Spring Non Return Silent Check Valve Oem Pn10/16

Energy-saving silencing check valve is suitable for water supply and drainage pipes. This valve disc is guided by the central axis at both ends of the inlet and outlet. It can be opened and closes flexibly. It can be installed horizontally and vertically. The valve disc is loated by spring. Its fast closing can effectively eliminate water hammer, with good sealing performance and no noise during closing. The utility model has the advantages of small volume, light weight, small fluid resistance, fatigue resistance, long service life, etc.

Technical data

Part name	Meterial
Valve body	WCB	ZG1Gr-18Ni9ti	CF8	CF3	ZG1Gr-18Ni12Mo2Ti	CF8M	CF3M
Valve disc,Valve seat,spring	2CR13	1Gr18Ni9Ti	0GR18Ni9(304)	00Gr18Ni10(304L)	1Gr18Ni-12Mo2Ti	0Gr18Ni12-Mo2(310)	00Gr17Ni14-Mo2(316L)
Suitable Mediums	Water,steam,oil	Nitric acid and other corrosive media Chronic Effectss Acetic acid and other corrosive media Urea and other corrosive mesia
°C Suitable Temperature	≤450	≤200
