Quick Details
-
Place of Origin:
-
Sichuan,China
-
Brand Name:
-
EBYTE
-
Size:
-
21 * 36mm
-
Frequency:
-
2.4GHz (2.4-2.505)
-
Power:
-
20dBm(100mW)
-
Distance:
-
2000m
-
RF connector:
-
SMA-K
-
Install Style:
-
Plug-in
-
Suppy Voltage:
-
1.9-3.6V
-
Interface:
-
UART
-
Feature:
-
Full duplex
-
Keyword:
-
wireless data transmitter and receiver module
Quick Details
-
Chipset:
-
nRF24L01+
-
Application:
-
Wireless IoT Data Transmission
-
Model Number:
-
E34-2G4D20D
-
Place of Origin:
-
Sichuan,China
-
Brand Name:
-
EBYTE
-
Size:
-
21 * 36mm
-
Frequency:
-
2.4GHz (2.4-2.505)
-
Power:
-
20dBm(100mW)
-
Distance:
-
2000m
-
RF connector:
-
SMA-K
-
Install Style:
-
Plug-in
-
Suppy Voltage:
-
1.9-3.6V
-
Interface:
-
UART
-
Feature:
-
Full duplex
-
Keyword:
-
wireless data transmitter and receiver module

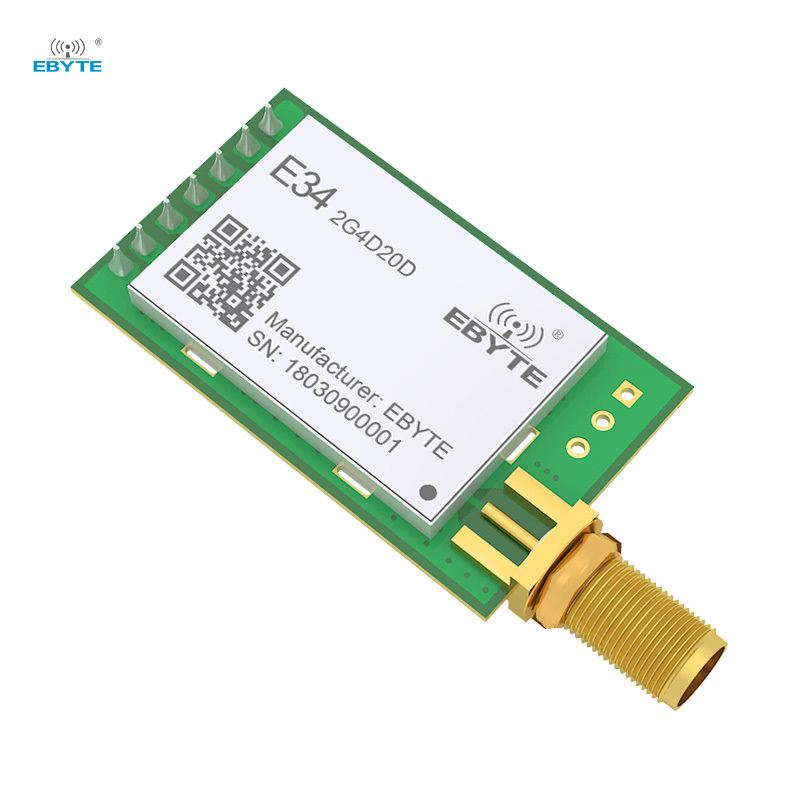

Ebyte Full duplex 2km long distance 2.4GHz wireless data transmitter and receiver module rf transceiver nRF24L01+ modules 2.4g
|
Brand |
Ebyte |
IC |
nRF24L01 |
|
Model |
E34-2G4D20D |
Interface |
UART |
|
Power |
20dBm |
Distance |
2000m |
|
RF connector |
SMA-K |
Frequency |
2400MHz (2400-2505MHz) |
|
This module (Used name:E39-TTL-100)is a 100mW wireless transceiver module ,operates at 2.4-2.518GHz, full duplex, Utilizing serial port to send & receive data hence lower the threshold for wireless application. It features concentrated power density, long transmitting distance & high data rate, transmitting and receiving at the same time, TTL level output, file transfer is available. |
|||
|
General parameters |
||
|
Antenna type |
SMA-K |
50Ω characteristic impedance |
|
Operating temperature |
-40 ~ +85℃ |
- |
|
Operating humidity |
10% ~ 90% |
Relative humidity,No condensation |
|
Storage temperature |
-40 ~ +125℃ |
- |
|
Size |
21 * 36 mm |
- |
|
Weight |
6.7g |
- |
|
Connector |
1*7*2.54 mm |
Plug-in |
|
Operation Range |
About 2000m |
Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 250kbps |
|
Communication interface |
UART |
8N1, 8E1, 8O1, Eight kinds of UART baud rate, from 1200 to 115200 bps |
|
Transmitting length |
1024 bytes buffer |
Half-duplex mode: 29 bytes for each packet Full-duplex mode: no limitation for package length |
|
Receiving length |
1024 bytes buffer |
Half-duplex mode: 29 bytes for each packet Full-duplex mode: no limitation for package length |
|
Electrical parameters |
||
| Frequency Band | 2400 - 2505 MHz |
Default: 2400MHz, channel:16 |
| Supply voltage | 2.3 - 5.5 V DC |
Notes: the voltage higher than 5.5V is forbidden |
|
Communication voltage |
Maximum 5.2V |
Recommended difference between supply voltage is less than 0.3V to lower power consumption |
| Transmitting power | 20dBm |
Four optional level(20 , 14, 8, 2dBm) |
| Air data rate |
Non-adjustable |
- |
| Standby current | N/A |
- |
| Transmitting current | 150mA@20dBm |
≥300mA |
|
Receiving current |
34mA |
Mode 0 or Mode 1 |
|
Sensitivity
|
-102dBm@ 250kbps |
Sensitivity has nothing to do with baud rate or timing |
|
PinA No. |
Pin item |
Pin direction |
Pin application |
|
1 |
M0 |
Input |
Work with M1 & decide the four operating modes |
|
2 |
M1 |
Input |
Work with M0 & decide the four operating modes |
|
3 |
RXD |
Input |
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. |
|
4 |
TXD |
Output |
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output |
|
5 |
AUX |
Output |
To indicate module ’s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output |
|
6 |
VCC |
Power supply 2.3V-5.5V DC |
|
|
7 |
GND |
|
Ground |
|
8 |
Fixing hole |
|
Fixing hole |
|
9 |
Fixing hole |
|
Fixing hole |
