Quick Details
-
Model Number:
-
MT-4
-
Dimension:
-
363 x 580 x 505 mm
-
Output Power:
-
400/1600 W
-
Type:
-
15 inch stage monitors
-
Frequency response:
-
55 Hz - 17 kHz
-
Configuration:
-
2-way stage monitor
-
Nominal impedance:
-
8 Ω
-
Power handling capacity:
-
400/1600 W
-
Nominal dispersion angle:
-
50° x 70° rotatable
-
speaker:
-
15" LH + 3" HF coaxial neodymium
-
Dimensions:
-
363 x 580 x 505 mm
-
Weight:
-
20 kg
-
Application:
-
Stage performance
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aoyue
-
Model Number:
-
MT-4
-
Dimension:
-
363 x 580 x 505 mm
-
Output Power:
-
400/1600 W
-
Type:
-
15 inch stage monitors
-
Frequency response:
-
55 Hz - 17 kHz
-
Configuration:
-
2-way stage monitor
-
Nominal impedance:
-
8 Ω
-
Power handling capacity:
-
400/1600 W
-
Nominal dispersion angle:
-
50° x 70° rotatable
-
speaker:
-
15" LH + 3" HF coaxial neodymium
-
Dimensions:
-
363 x 580 x 505 mm
-
Weight:
-
20 kg
-
Application:
-
Stage performance

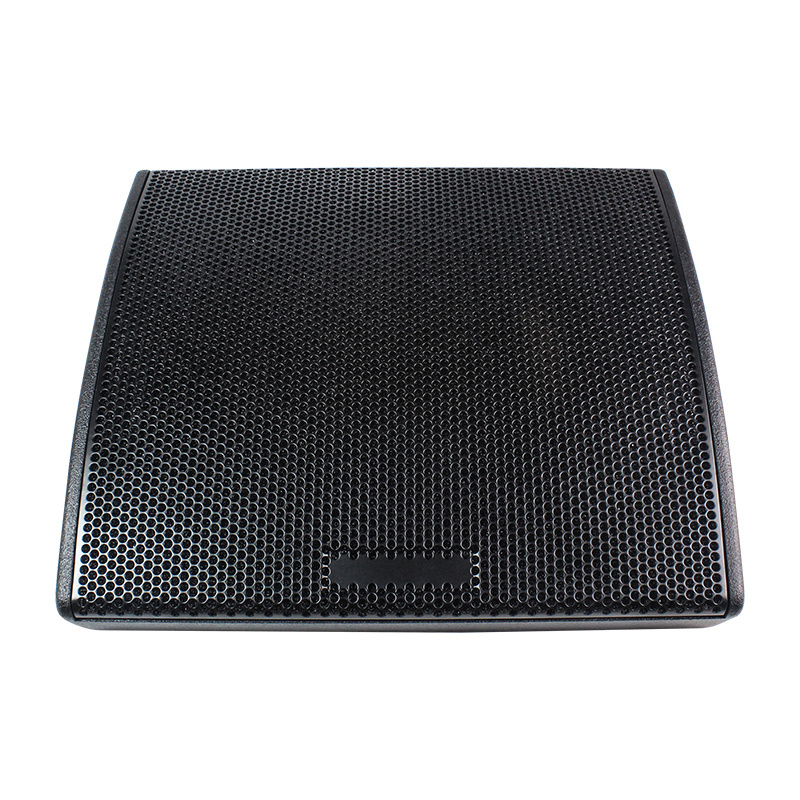

Aoyue 2-way stage monitor
Product Paramenters
|
Frequency response (-5 dB standard)
|
55 Hz - 17 kHz
|
|
|
|
|||
|
Maximum SPL
|
135 dB
|
|
|
|
|||
|
Nominal directivity (-6 dB)
|
Enclosure: 30°
|
|
|
|
|||
|
|
L-Fins: 110°/ 70° symmetric , 90° asymmetric
|
|
|
|
|||
|
Nominal impeadance
|
8 Ω
|
|
|
|
|||
|
Power handling capacity
|
400/1600 W
|
|
|
|
|||
|
Nominal dispersion angle (h x v)
|
50° x 70° rotatable
|
|
|
|
|||
|
Components
|
15" driver with neodymium magnet
|
|
|
|
|||
|
|
coaxial 1.3" exit compression driver with 3" coil and constant directional horn
|
|
|
|
|||
|
|
passive crossover network
|
|
|
|
|||
|
Dimensions (H x W x D)
|
363 x 580 x 505 mm
|
|
|
|
|||
|
Weight
|
20 kg / 44 lb
|
|
|
|
|||
Features
1. 2-way passive/ active high performance stage monitor speaker.
2.
3.15” LH + 3” HF coaxial neodymium drivers.
3.
Flexible mounting for different application.
4. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.
5. The front of the loudspeaker cabinet is protected by a rigid metal grill backed with an acoustically transparent foam.
