Quick Details
-
Brand Name:
-
GUBANG
-
Model Number:
-
30W~180W Monocrystalline Silicon Module
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
520*670*25mm
-
Product name:
-

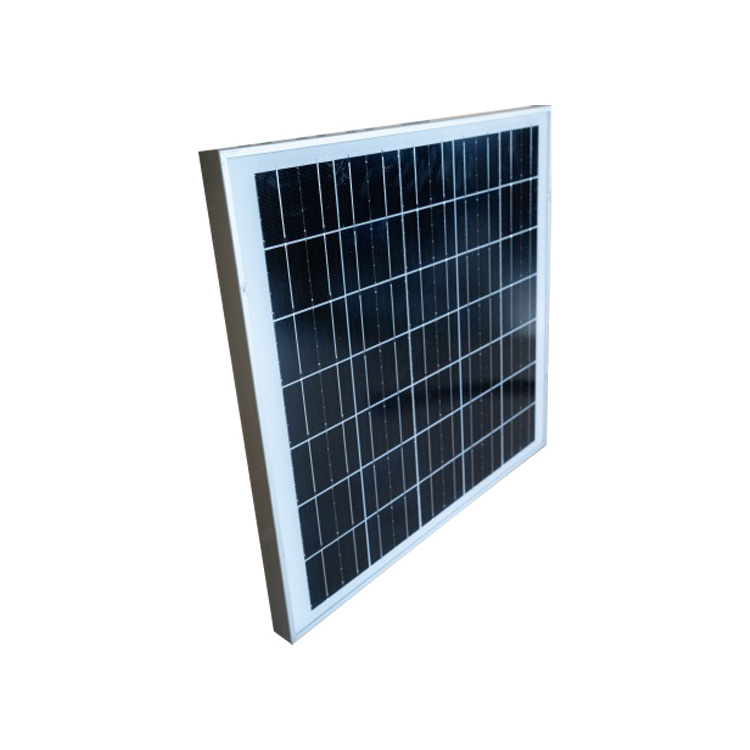

Mono solar panel
-
Frame:
-
Anodized Alluminium Alloy
-
Cables:
-
2.5mm²,length:900mm
-
Junction Box:
-
IP 65
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Warranty:
-
5years
-
Brand Name:
-
GUBANG
-
Model Number:
-
30W~180W Monocrystalline Silicon Module
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
520*670*25mm
-
Product name:
-
Mono solar panel
-
Frame:
-
Anodized Alluminium Alloy
-
Cables:
-
2.5mm²,length:900mm
-
Junction Box:
-
IP 65
|
Module Type
|
M30
|
M40
|
M50
|
M60
|
M70
|
|||||
|
Peak Power(Pmax)
|
30W
|
40W
|
50W
|
60W
|
70W
|
|||||
|
Maximum Power Voltage(Vmp)
|
18.0V
|
18.0V
|
18.0V
|
18.0V
|
18.0V
|
|||||
|
Maximum Power Current(Imp)
|
1.67A
|
2.22A
|
2.78A
|
3.33A
|
3.89A
|
|||||
|
Open-Circuit Voltage Voc(V)
|
22.3V
|
22.3V
|
22.3V
|
22.3V
|
22.3V
|
|||||
|
Short-Circuit Current Isc(A)
|
1.81A
|
2.39A
|
2.99A
|
3.59A
|
4.19A
|
|||||
|
Max-system Voltage(Vdc)
|
1000V
|
1000V
|
1000V
|
1000V
|
1000V
|
|||||
|
Dimensions(mm)
|
420*520*25
|
420*670*25
|
520*670*25
|
540*670*25
|
650*670*35
|
|||||
|
Weight(kg)
|
3.20
|
3.90
|
4.20
|
4.60
|
5.00
|
|||||
|
Maximum Series Fuse Rating(A)
|
10
|
|
|
|
|
|||||
|
Temperature coefficient of max
|
-0.4%/°C
|
|
|
|
|
|||||
|
Temperature coefficient of Voc
|
-0.32%/°C
|
|
|
|
|
|||||
|
Temperature coefficient of Isc
|
0.05%/°C
|
|
|
|
|
|||||
|
Operating Temperature
|
-40 °Cto+85°C
|
|
|
|
|
|||||
|
Power Tolerance
|
±3%
|
|
|
|
|
|||||
|
Junction box
|
MC4 connector, Cable length: 900mm, 2.5mm², IP 65
|
|
|
|
|
|||||
|
Measurement values under standard testing conditions STC (with a temperature of 25°C, air mass of AM1.5 and irradiance of 1000W/m²)
|
|
|
|
|
|
|||||
