Quick Details
-
Cutting Area:
-
230*400mm
-
Cutting Thickness:
-
10mm
-
Control Software:
-
CAM/CAD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Weight (KG):
-
800 KG
-
Max Web Width:
-
230mm/ 9''
-
Max Web Diameter:
-
400mm/15.75''
-
Max Web Speed:
-
20m/min
-
Laser Power:
-
70W/100W USA RF CO2 Sealed metal tube
-
Format Support:
-
AI,BMP,PLT,DXF,DST
-
Standard function:
-
kiss cutting, cutting through, perforation, engraving, marking
-
Optional function:
-
lamination, UV Varnish slitting, etc
-
Weight:
-
800KG
-
Certification:
-
CE,ISO
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
20m/min, 2000mm/second
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
230*400mm
-
Cutting Thickness:
-
10mm
-
Control Software:
-
CAM/CAD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Weight (KG):
-
800 KG
-
Max Web Width:
-
230mm/ 9''
-
Max Web Diameter:
-
400mm/15.75''
-
Max Web Speed:
-
20m/min
-
Laser Power:
-
70W/100W USA RF CO2 Sealed metal tube
-
Format Support:
-
AI,BMP,PLT,DXF,DST
-
Standard function:
-
kiss cutting, cutting through, perforation, engraving, marking
-
Optional function:
-
lamination, UV Varnish slitting, etc
-
Weight:
-
800KG
-
Certification:
-
CE,ISO

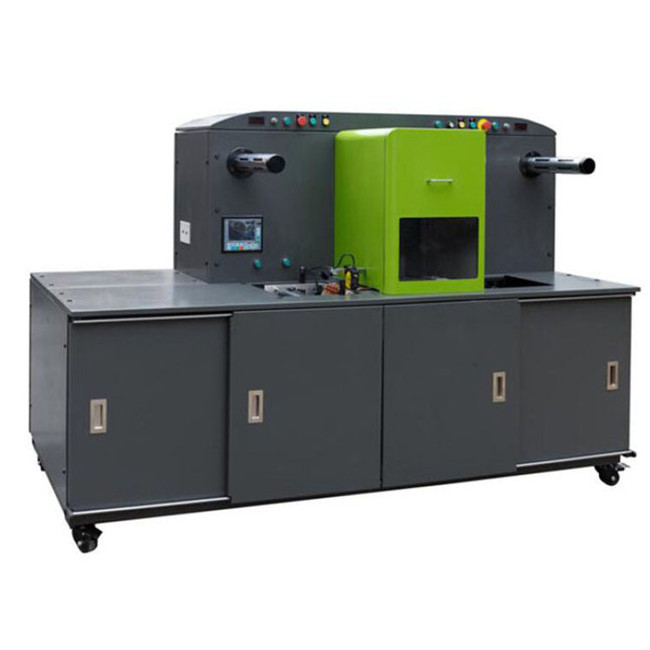

Automatic Digital Laser Label Die Cutting Machine For Sale
Automatic Digital Laser Label Die Cutting Machine For Sale
| Model | HC-230 |
| Max Web Width | 230mm/ 9'' |
| Max Web Diameter | 400mm/15.75'' |
| Max Web Speed | 20m/min |
| Cutting Speed | 2000mm/second |
| Laser Power | 70W/100W USA RF CO2 Sealed metal tube |
| Format Support | AI,BMP,PLT,DXF,DST |
| Standard function | laser die cutting, kiss cutting, cutting through, perforation, engraving, marking |
| Optional function | lamination, UV Varnish slitting, etc |
| Weight | 800KG |
| Dimension | 2400*1800*1800mm |
Automatic Digital Laser Label Die Cutting Machine For Sale
- High Speed: The Galvanometric system allows the bean to move very quickly, perfectly focalized on the entire working area.
- High Precision: The innovative Label Positioning System controls the web position on the X and Y axis. This device guarantees a cutting precision within 20 micron even cutting labels with an irregular gap.
-It doesn’t need to make mould, easy to change the plate.This machine can replace the round knife die cutting machine completely;
- No limit for the graphics, it can process many materials, like the Glossy paper, matt paper, cardboard , plastic film, PP, PET, PVC ,
-It adopts the automatic control system, can realize the all cut, kiss cut, perforating, engraving and numbering.
-As this machine doesn’t need the mould/tool, so you don’t need to make moulds for different design, to save a lot of production cost. Morever, the laser machine has a longer lifetime;
- No need to contact, it is equipped the touched control panel, easy to operate;
| Packing detials | Wooden case |
| Delivery time | within 5-15 working days |
| Shipping Port | Main China port |
All of our machine have one year warranty,life-long maintance.
Lowest price,best quality.
24 hours online answer your questions.
Delivery it to you as soon as possible.
