Quick Details
-
Model Number:
-
AHC712B
-
Max. Current:
-
16A
-
Program:
-
Daily program
-
Shortest Switching Time:
-
15 min
-
Width:
-
4 modules
-
Installation type:
-
DIN-rail
-
Ambient temperature:
-
-10 °C ~ +50 °C
-
Type of protection:
-
IP 20
-
Power consumption:
-
1VA
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALION
-
Model Number:
-
AHC712B
-
Max. Current:
-
16A
-
Program:
-
Daily program
-
Shortest Switching Time:
-
15 min
-
Width:
-
4 modules
-
Installation type:
-
DIN-rail
-
Ambient temperature:
-
-10 °C ~ +50 °C
-
Type of protection:
-
IP 20
-
Power consumption:
-
1VA
-
Certification:
-
CE
AHC712B 230VAC 50Hz Plug in outdoor timer for lights cycle timer switch instructions
Focus On Time Control For 24 Years

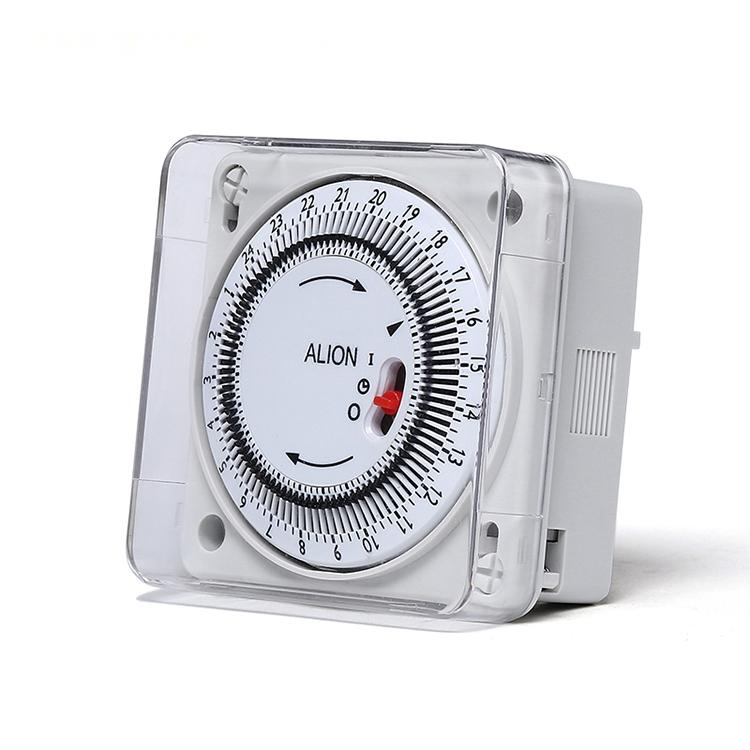

The AHC712B analogue time switch is designed to be mounted inside a control panel and can accommodate surface or flush panel mounting. The AHC712B analog time switches is a light duty commercial time switch just for 230 VAC 50Hz single-phase applications.
Applications
- Commercial Refrigeration
- Pumps/Motor/Fan Control
- Hydroponic Systems
- Aerobic Wastewater Treatment Systems
- Boilers
- Generator Exercising
Technical Data
| Operating voltage | 230 V AC |
| Power Reserve | Without Power Reserve |
| Width | 4 modules |
| Installation type | surface / flush panel / control panel |
| Type of connection | Plug in terminals |
| Program | Daily program |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Incandescent/halogen lamp load | 1000W |
| Energy saving lamps | 150W |
| LED lamp < 2 W | 30W |
| LED lamp 2-8 W | 90W |
| LED lamp > 8 W | 100W |
| Shortest switching time | 15 min |
| Time accuracy at 25 °C | Synchronised with mains |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Power consumption | 1VA |
| Test approvals | CE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
Connection Example
Scale Drawings
