Quick Details
-
Interface Type:
-
usb
-
Keyboard Standard:
-
keyboard switch
-
Brand Name:
-
OEM
-
Model Number:
-
JWK-SC01
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
keyboard switches
-
Name:
-
holy panda switch keyboard
-
Keyword:
-
alpaca switches machanicle keyboard switch
-
Knock Type:
-
Linear
-
Rating:
-
DC12v 10mA
-
Cotact resistance:
-
200mΩ Max
-
Insulation resistance:
-
100MΩ Min DC100V
-
Withstanding Voltage:
-
AC100V(50-60HZ) for 1 Minute
-
Mechanical life:
-
80,000,000 Cycles
-
Total travel:
-
4.0±0.5 mm
Quick Details
-
Operation Style:
-
Mechanical
-
Style:
-
Mini, Standard, For Laptop, Laser Keyboard, Split Keyboard, Multifunctional Keyboard
-
Type:
-
keyboard switches
-
Interface Type:
-
usb
-
Keyboard Standard:
-
keyboard switch
-
Brand Name:
-
OEM
-
Model Number:
-
JWK-SC01
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
keyboard switches
-
Name:
-
holy panda switch keyboard
-
Keyword:
-
alpaca switches machanicle keyboard switch
-
Knock Type:
-
Linear
-
Rating:
-
DC12v 10mA
-
Cotact resistance:
-
200mΩ Max
-
Insulation resistance:
-
100MΩ Min DC100V
-
Withstanding Voltage:
-
AC100V(50-60HZ) for 1 Minute
-
Mechanical life:
-
80,000,000 Cycles
-
Total travel:
-
4.0±0.5 mm
Recommend Products
Product Description

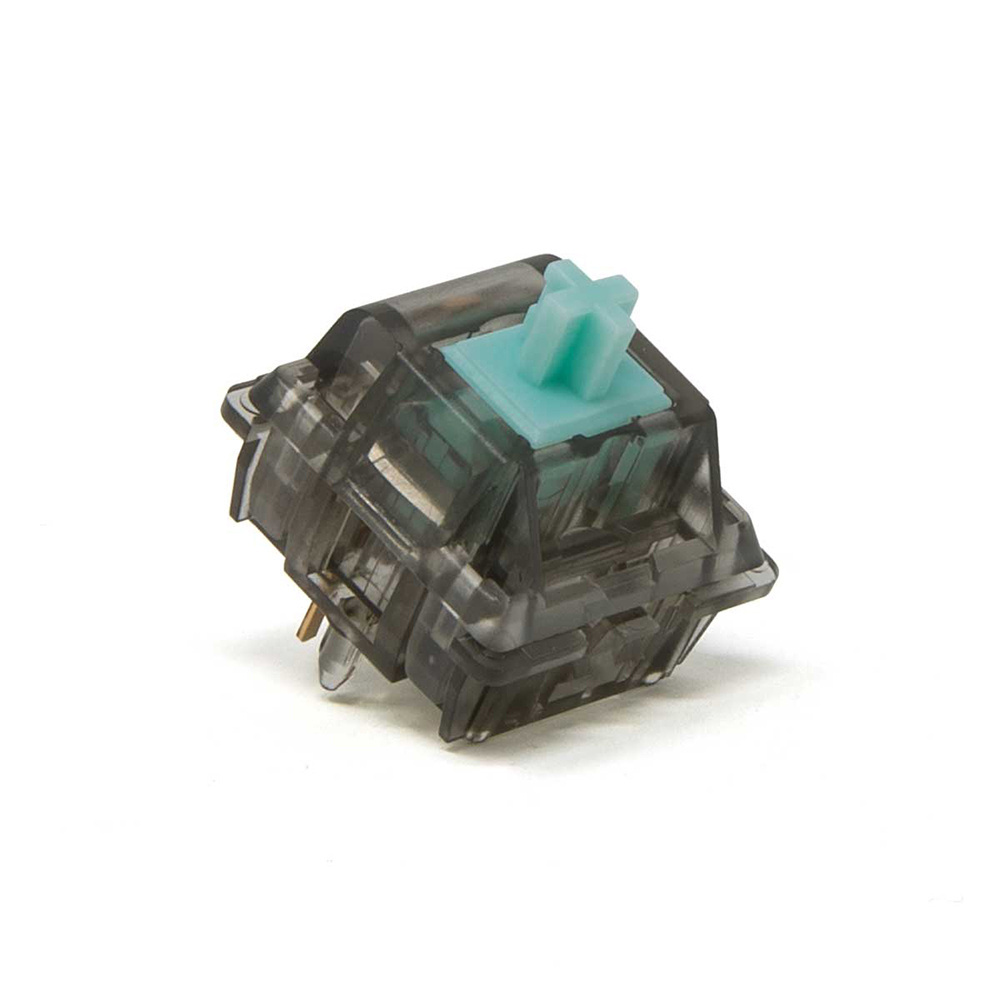

JWK Linear Frosted Milk Cyan Green 60gf JWICK Black Keyboard Switches
Features:
Foundry: Jwick
Switch Type: Linear
Knock Life: 50 million times
Actuation force: 60±20gf
Actuation travel: 2.0±0.6mm
Bottom-out Force: 78±20cN
Total travel: 40±0.3mm
Size: 158*156*11.1mm
Switch Type: Linear
Knock Life: 50 million times
Actuation force: 60±20gf
Actuation travel: 2.0±0.6mm
Bottom-out Force: 78±20cN
Total travel: 40±0.3mm
Size: 158*156*11.1mm
|
* Knock Type:
|
Tactile
|
|
* Rating:
|
DC12v 10mA
|
|
* Cotact resistance:
|
200mΩ Max
|
|
* Insulation resistance:
|
100MΩ Min DC100V
|
|
* Withstanding Voltage:
|
AC100V(50-60HZ) for 1 Minute
|
|
* Actuation force:
|
40±5gf
|
|
* Actuation travel:
|
1.9±0.3mm
|
|
* Total travel:
|
4.0±0.5 mm
|
|
* Mechanical life:
|
80,000,000 Cycles
|
