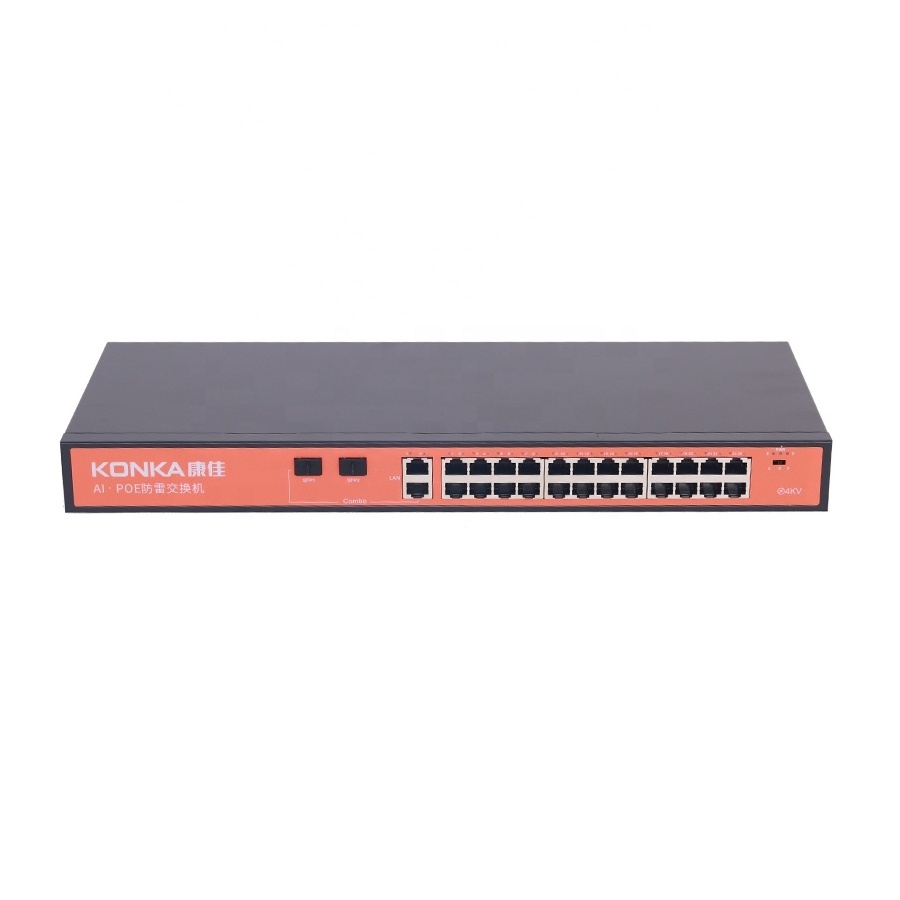

Quick Details
-
Model Number:
-
KK-PQ24+4 - Gigabit
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Metal
-
Product size:
-
440mm*180mm*45mm
-
Color box size:
-
465mm*90mm*265mm
-
Color:
-
customizable
-
Carton size:
-
480mm*470mm*280mm
-
G.W./N.W.:
-
about 15.2kg
-
PCS/CTN:
-
5
-
Sample:
-
Supply
-
Package:
-
High quality cattle carton
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
Lainuowei
-
Model Number:
-
KK-PQ24+4 - Gigabit
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Metal
-
Product size:
-
440mm*180mm*45mm
-
Color box size:
-
465mm*90mm*265mm
-
Color:
-
customizable
-
Carton size:
-
480mm*470mm*280mm
-
G.W./N.W.:
-
about 15.2kg
-
PCS/CTN:
-
5
-
Sample:
-
Supply
-
Package:
-
High quality cattle carton
Products Description
Features：
*
Comply with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards
*Supports IEEE802.3af/at standard, compatible with PDs that support IEEE802.3af/at
*Supports ordinary switch/automatic AI detection + port isolation second-level mode
*Provides 24 10/100/1000M adaptive POE power supply ports and 2 Gigabit uplink SFP ports
*All ports support Auto MDI/MDI-X function
*Supports IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
*All ports have wire-speed forwarding capabilities
*Supports autonomous learning and aging of MAC address
*Full metal casing, power output 320W*
*plug and play；
1. Basic specifications
|
Item
|
Data
|
|
Port
|
24*1000Mbps POE Port + 2*1.25G SFP
|
|
Backplane bandwidth
|
52G
|
|
MAC Address
|
8K
|
|
Power Supply
|
AC Input 100-250V，320W Power supply
|
|
Network media and transmission distance
|
1000Base-T: 4 to Cat5e or higher UTP/STP(≤100m)
100Base-TX: 2 to Cat5 or higher UTP/STP(≤100m) 10Base-TX: 2 to Cat5e or higher UTP(≤250m) |
2. Software specifications
|
Item
|
Data
|
|
Basic functions
|
Comply with IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Compatible with IEEE 802.3af/at powered devices (PDs) Compatible with certified non-standard powered devices (PD) Store and forward MAC automatic learning and aging IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
|
Ethernet protocols and standards
|
IEEE 802.3 Ethernet Media Access Control Protocol
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3z 1000Base-X SFP interface IEEE 802.3af enables powering Ethernet devices through Ethernet data pairs or devices IEEE 802.3at realizes high-power power supply for Ethernet devices through Ethernet data wire pairs or devices IEEE 802.3x flow control |
|
System Mode
|
OFF: Default working mode
ON: Port isolation |
|
Data transmission rate
|
Ethernet 10Mbps half duplex, 20Mbps full duplex
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex Gigabit Ethernet 2000Mbs Full Duplex |
3. POE performance
|
Iten
|
Data
|
|
IEEE802.3af
|
Supported
|
|
IEEE802.3at
|
Supported
|
|
Port MAX Output
|
30W
|
|
Overcurrent protection
|
Supported
|
|
Overvoltage protection
|
Supported
|
|
Short circuit protection
|
Supported
|
