Electric lifting table, easy to operate;
Rotary optional, suitable for the customer who
have cylinder things engarving needs;
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
Corellaser
-
Cutting Area:
-
500mm*300mm
-
Cutting Thickness:
-
30mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Redsail
-
Weight (KG):
-
80 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Work area:
-
500*300mm
-
Certification:
-
ce
-
Control system:
-
DSP
-
Max thickness:
-
30mm
-
Laser tube type:
-
Co2 Glass sealed laser tube
-
Laser power:
-
40W/50W/60W
-
G.W.:
-
80KG
-
Max speed:
-
1000 mm/s
-
Resolution:
-
2500 DPI
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Corellaser
-
Cutting Area:
-
500mm*300mm
-
Cutting Thickness:
-
30mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Redsail
-
Weight (KG):
-
80 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Work area:
-
500*300mm
-
Certification:
-
ce
-
Control system:
-
DSP
-
Max thickness:
-
30mm
-
Laser tube type:
-
Co2 Glass sealed laser tube
-
Laser power:
-
40W/50W/60W
-
G.W.:
-
80KG
-
Max speed:
-
1000 mm/s
-
Resolution:
-
2500 DPI
Product Description

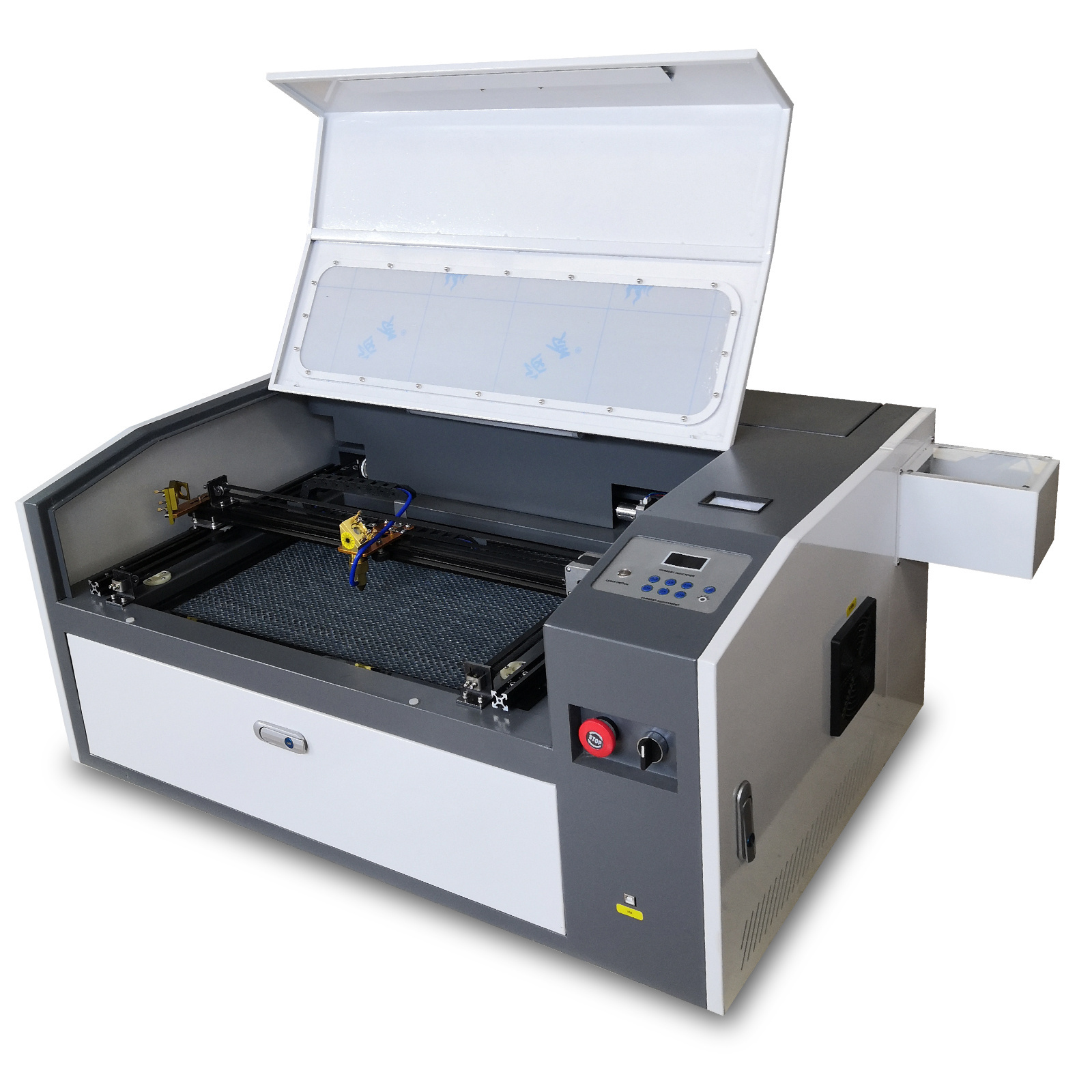

3050 min desktop Laser Engraving Machine For Non-Metal Cnc Machine Laser Cutting Cutter For Mdf/ Granite/ Stone
Applicable industry and materials:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and
crafts,electronics, electric appliances, etc.
crafts,electronics, electric appliances, etc.
Materials such as acrylic, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell,coconut
shell, ox horn, resin animal grease,ABS board, lamp shade, etc.
shell, ox horn, resin animal grease,ABS board, lamp shade, etc.
Detailed Images
The laser beam is stable, the power is strong, the engraving effect is good, the cutting speed is fast, the performance-price ratio is high.
Simple structure in roller wheel ,easy in installation and maintenance.
Compare with other mini laser machine, our M4060 50W/60W/80W/100W acrylic leather wood glass crystal mini laser co2 engraving and cutting machine with higher precision, higher quality and faster speed.
Lifting Motor
0~160 mm lifting range, to meet the range of carving materials of different thickness, gently turn the lifting button. .
Intelligent Operation Panel
The buttons on the panel have function names. They are all independent buttons. They are easy to understand and operate.It is more convenient to use.
Honeycomb Beds
Using structure it has strong hardness,
not easy to deform, stable structure and high performance
not easy to deform, stable structure and high performance
|
MODEL
|
M3050
|
|
Input Power
|
110V~240V/50~60HZ
|
|
Processing Area
|
12 x 20 inch (300 x 500 mm)
|
|
Max Speed
|
1000mm/s
|
|
Workbed Adjustment
|
Electronic up/down
|
|
Workbed Height Range
|
7 inch (180mm)
|
|
X Y Drive type
|
Stepper Motor
|
|
Resolution
|
1000 DPI
|
|
Image Format
|
PLT, DXF, BMP, AI, DST, SVG, ETC.
|
|
Graphic Operating Modes
|
Optimized raster, Vector, and Combined
|
|
Transfer Interface
|
USB ineterface
|
|
Net weight
|
56 KGS
|
|
Machine Dimension
|
1170X671X456mm
|
|
MORROS AND LENS
|
|
|
|
Focal Lens diameter
|
12 mm
|
|
|
Focal length
|
50.8 mm
|
|
|
Reflection Mirror Diameter
|
20 mm
|
|
|
High--quality Znse crystal
Excellent optical properties
Supperb coating process
Double side solid coating
Reduces laser loss
Reduce laser transmittance up to 99.8%
High precision process
precise sling, polishing
|
|
|
Sample
wood MDF laser cutting
wood engraving
paper cutting/wedding invitation customize
granite laser engraving
acrylic laser cutting
leather laser engraving
bamboo laser engraving
model toy customize
Double color plate engraving
Related Products
Company Introduction
Redsail Technology Co. Ltd is a high-tech enterprise integrating R& D, production and asales of laser application equipment.
Products mainly include laser engraver, laser cutter, laser engraving and cutting machine, advertising CNC Router, woodworking CNC Router and cutting plotter. Since 2003, it has been 20 years now.
We have more than 100 outstanding employees, including more than 10 professional core R& D team memebers, and some experts with more than 15 years experience of laser filed. 10+ after-sales service people provide 24-hour fast online and offline technical service in 6 languages.
Factory in Zibo, Shangdong covers an area of more than 5, 000 square meters. Also we set up overseas marketing center in Jinan, Shandong. Redsail laser machines were approved by CE, etc and sold to 150 countries and regions around the world, and already established Canada Branch with warehouse. In the next 3 years, we plan to establish service center in more than 10 countries.
"Quality, Good Faith, Innovation, Service" are the spirits of Redsail Laser, we always adhere to customer demand-oriented, provide design, installation and debugging and after-sale technical support and other full services.
As a traditional pregmatic enterprise, Redsail Laser every step of the down-to-earth, product upgrading go through a long-term test before put on the market, so the quality can be guaranteed. We are always looking for dealer partners around the world. We are not a ruthless and pure commercial company, but a warm and trusted partner like home. Welcome to join us and share success.
Redsail Laser welcome all good sales representative all over the world to join for the futuer cooperation and business, let us make every effort to make the market better and better.
Redsail Laser, You're worth it.
Products mainly include laser engraver, laser cutter, laser engraving and cutting machine, advertising CNC Router, woodworking CNC Router and cutting plotter. Since 2003, it has been 20 years now.
We have more than 100 outstanding employees, including more than 10 professional core R& D team memebers, and some experts with more than 15 years experience of laser filed. 10+ after-sales service people provide 24-hour fast online and offline technical service in 6 languages.
Factory in Zibo, Shangdong covers an area of more than 5, 000 square meters. Also we set up overseas marketing center in Jinan, Shandong. Redsail laser machines were approved by CE, etc and sold to 150 countries and regions around the world, and already established Canada Branch with warehouse. In the next 3 years, we plan to establish service center in more than 10 countries.
"Quality, Good Faith, Innovation, Service" are the spirits of Redsail Laser, we always adhere to customer demand-oriented, provide design, installation and debugging and after-sale technical support and other full services.
As a traditional pregmatic enterprise, Redsail Laser every step of the down-to-earth, product upgrading go through a long-term test before put on the market, so the quality can be guaranteed. We are always looking for dealer partners around the world. We are not a ruthless and pure commercial company, but a warm and trusted partner like home. Welcome to join us and share success.
Redsail Laser welcome all good sales representative all over the world to join for the futuer cooperation and business, let us make every effort to make the market better and better.
Redsail Laser, You're worth it.
Packing&Shipping
Certificate
CE certificate etc
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways. Q3: Is the machine safe to operate? Yes, the laser is completely safe to
operate. Redsail Laser machines offer so many safe system, like leakage proof socket,emergency stop button ,water alarm, red dot focus.
operate. Redsail Laser machines offer so many safe system, like leakage proof socket,emergency stop button ,water alarm, red dot focus.
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models .
(20*30cm,30*50cm,40*60cm,60*90cm,90*130cm,130*250cm) , and laser wattage (ranging from 40 watts to 300 watts) If you'd like help determining which laser is right for your application or receive pricing information.
(20*30cm,30*50cm,40*60cm,60*90cm,90*130cm,130*250cm) , and laser wattage (ranging from 40 watts to 300 watts) If you'd like help determining which laser is right for your application or receive pricing information.
Q5: What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the
problems are caused by quality fault.
problems are caused by quality fault.
Q6: How about the documents after shipment?
After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7: Do You Arrange Shipment For The Machines?
Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost. For FOB or CIF price, we will arrange shipment for you.
Q8: How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
Q9: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
