Customized high-precision 1~10mm stainless steel shaft fan motor knurled propeller shaft

Customized high-precision 1~10mm stainless steel shaft fan motor knurled propeller shaft

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.19

≥2000 Pieces

US $0.15

≥5000 Pieces

US $0.11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SC-CNC000015-00

Brand Name:: Kamikawa Precision

Material:: Copper, iron, aluminum, titanium, stainles ssteel

Surface treatment:: Baking, oxidation, polishing, electroplating, passivation, grinding

Application:: Automotive, Automation, Mechanical Equipment, Aerospace, Medical,

Processing Type:: CNC machining, CNC lathe processing

Drawing Format:: PDF,DXF,DWG,IGS,STP,STEP,JPG

Tolerance:: ±0.01mm(±0.0005in.)

MOQ:: 10PCS

Quality control:: ISO/TS9001:2015

About the sample:: Free sample confirmation

Usage:: Widely

Quick Details

CNC Machining or Not:: Cnc Machining

Material Capabilities:: Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless steel, Steel Alloys

Place of Origin:: Guangdong, China

Model Number:: SC-CNC000015-00

Brand Name:: Kamikawa Precision

Material:: Copper, iron, aluminum, titanium, stainles ssteel

Surface treatment:: Baking, oxidation, polishing, electroplating, passivation, grinding

Application:: Automotive, Automation, Mechanical Equipment, Aerospace, Medical,

Processing Type:: CNC machining, CNC lathe processing

Drawing Format:: PDF,DXF,DWG,IGS,STP,STEP,JPG

Tolerance:: ±0.01mm(±0.0005in.)

MOQ:: 10PCS

Quality control:: ISO/TS9001:2015

About the sample:: Free sample confirmation

Usage:: Widely

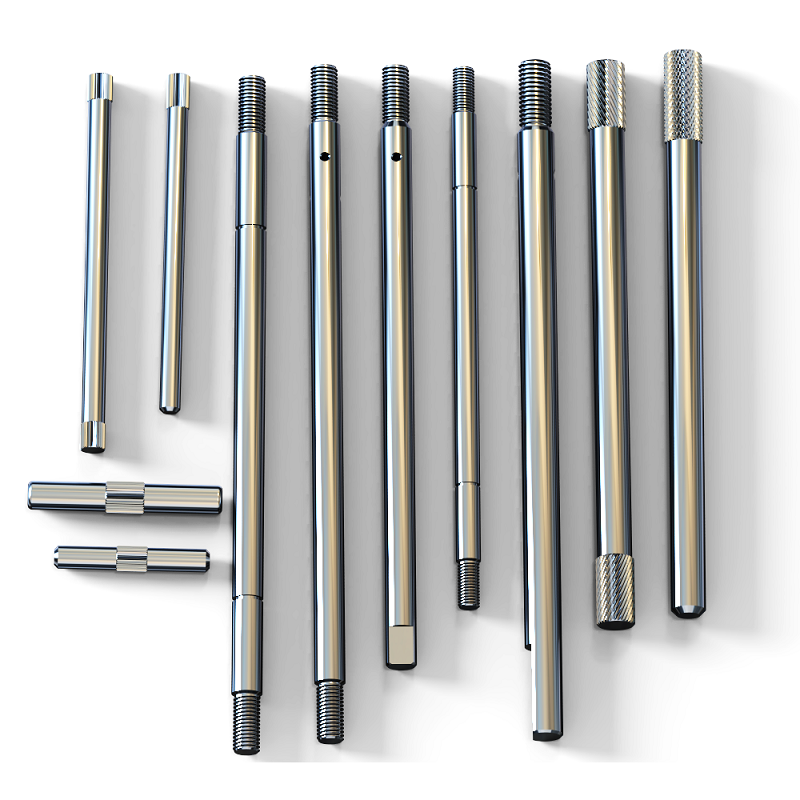

Sample Photos

Specializing in the production of various motor shafts, fan shafts, and stainless steel knurled shafts. Discounts available for large quantities.

The shaft core adopts the straightening and breaking process, and the outer diameter is processed by precision centerless grinding. The precision can reach 0.002mm; the surface finish can reach Ra0.4. Welcome to consult proofing.

Fan shaft series:

Processing introduction of fan shaft series:

1. The product adopts C45 (DIN1.1191) grinding bar; 2. First, process the thread and flat position through CNC turning; 3. The outside is processed by precision centerless grinding. Dimensional accuracy can reach 0.002mm. The surface finish can reach Ra0.4. 4. Cleaning and degreasing, testing; 5. Packaging and warehousing;

Knurled shaft series:

1. Straighten the stainless steel wire through the machine; 2. Cut the straightened wires; 3. Use the end grinder to process the chamfer or arc of the end face; 4. The length of the shaft core is processed by end face grinding, and the length tolerance can be controlled at 0.05mm; 5. The outer diameter is processed by a precision centerless grinder. The outer diameter tolerance can reach 0.002mm, and the finish can reach Ra0.4; 6. The pattern is processed by knurling machine; 7. Cleaning and degreasing; 8. Automatic detection machine CCD for full-scale detection; 9. Packaging and warehousing;

Material

Plastic Materials：	ABS、Acrylic、Delrin (Acetal)、HDPE(high-density polyethylene)、Nylon 6/6、PC (Polycarbonate)、PEEK、Polypropylene、PTFE (Teflon)、PVC (polyvinyl chloride)、UHMW PE, etc
Aluminum：	6061、6063、2024、5052、7050、7075、6082、A380、MIC-6A , etc
Copper ：	101、Copper 260 (Brass)、Copper C110、Copper C360 (Brass)、Copper C932 (Bronze), etc
Brass：	HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
Stainless Steel：	303、304、316/316L、410、416、420、440C、15-5、17-4、18-8, etc
Steel：	mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.
Iron：	A36, 45#, 1213, 12L14, 1215 etc.
Titanium：	TA1 (Grade 1)、TA2(Grade 2)、TA3 (Grade 4A/4B)、TA4(Grade 3), etc

Stainless Steel：	Polishing, Passivating, Sandblasting, Laser engraving
Steel：	Zinc plating, Oxide black, Nickel plating, Chrome platingk, Carburized, Powder Coated
Aluminum ：	Clear Anodized, Color Anodized, Sandblast Anodized, Chemical Film,Brushing,Polishing
Plastic：	Plating gold (ABS), Painting, Brushing (Acylic), laser engraving
