Quick Details
-
Voltage:
-
110~220V
-
Name:
-

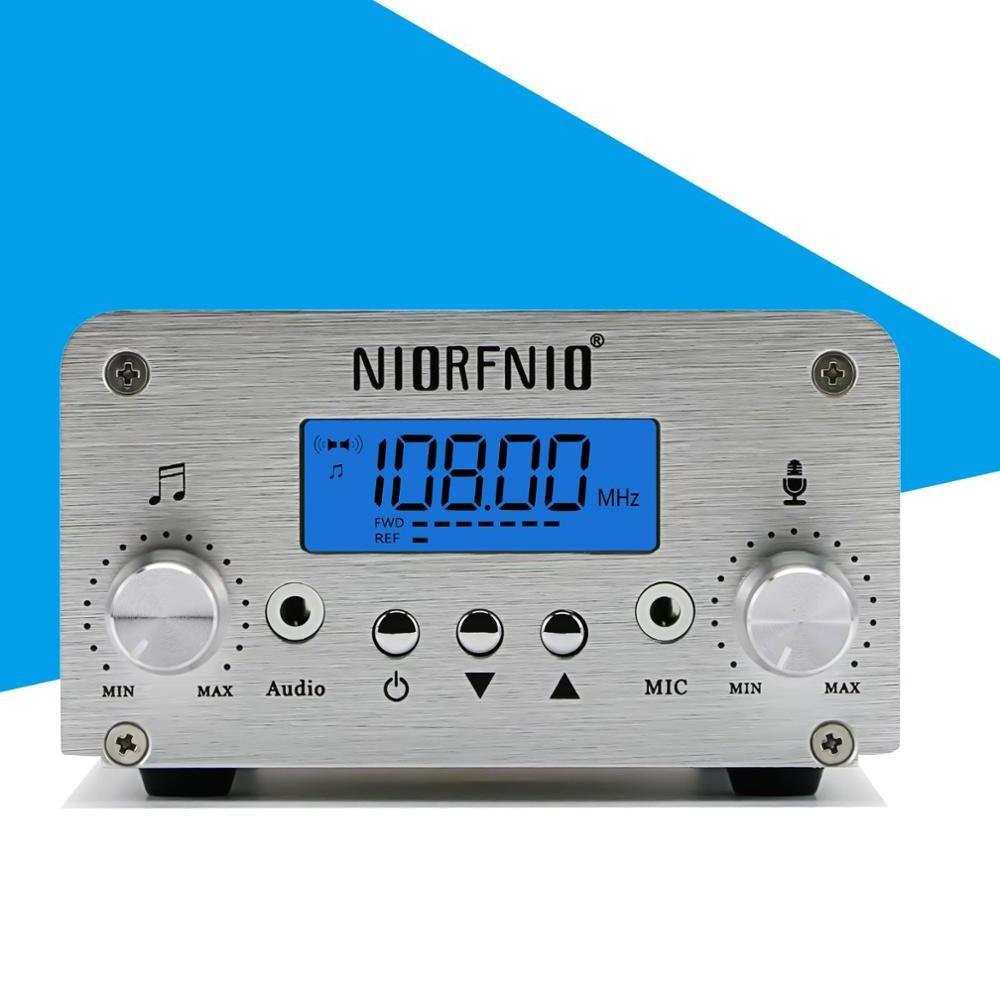

long range fm transmitter
-
Franquency range:
-
87MHz-108MHz
-
Tuning Step:
-
100khz
-
is_customized:
-
Yes
-
Power:
-
2/15W
-
Ref range:
-
1~15KM (Open/Flag area)
-
Color:
-
Silver
-
Antenna connetor:
-
TNC
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NIORFNIO
-
Model Number:
-
NIO-T15B
-
Voltage:
-
110~220V
-
Name:
-
long range fm transmitter
-
Franquency range:
-
87MHz-108MHz
-
Tuning Step:
-
100khz
-
is_customized:
-
Yes
-
Power:
-
2/15W
-
Ref range:
-
1~15KM (Open/Flag area)
-
Color:
-
Silver
-
Antenna connetor:
-
TNC
-
Certification:
-
ce
And it adds 8 Cells for output power to be adjusted. TR502
Main Feature:
1. imported electronic component
2.stereo sound
3.bluetooth function
4.PC control
5.U disk player
6.wind speed control
7.power adjustable (1.9W/cells, totla 8 cells)
8.intelligent alarm
- 8-level RF power adjustable; Transmission frequency can be set ; the most transmission distance of 2-3 km (1.2-1.8 mi) in the open air; Fan noise is about 30 decibels
- Built-in PLL advanced modulation system support strong signal;Adjustable magnetic antenna;easy to move the antenna to the outside; the roof; balcony or window; more effective transmission and reception of electromagnetic waves
- Heat dissipation; using high-quality dual ball bearing fan; reasonable heat dissipation channels; When the temperature is too hot;the display will show a temperature alarm;meanwhile the machine will start to sound the di di voice alarm
- PC control connect your computer by USB supporting intelligent broadcasting software;achieve diversification unattended broadcast; You can connect wireless to mobile phones; tablets and other wireless devices
- This FM transmitter can work with any numerous fm device;such as fm radio,fm speaker;so it is suitable at a large church to broadcast iPod music to multiple outdoor fm radio speakers
Technical Parameter:
NO. |
Item |
Technical Parameter |
1 |
RF Output Power |
0~15W |
2 |
Working Voltage |
DC12V |
3 |
Working Current |
<3A |
4 |
Frequency Range |
87-108 MHz |
5 |
Frequency Stability |
±10 PPM |
6 |
Frequency Step |
100 KHz |
7 |
Working Temp. |
-10℃-40℃ |
8 |
Output Impedance |
50Ω |
9 |
Audio Distortion |
0.3% |
10 |
Bluetooth Distance |
≥5 meters |
11 |
Frequency Response |
50Hz~15000Hz |
12 |
Modulation Frequency Offset |
±75KHz |
13 |
Size |
144x100x54mm |
14 |
Weight |
550g |
Packing Included:
1*T15B-1 15w fm transmitter
ATTENTION:
-
Connect antenna first before connecting transmitter to DC supply, otherwise, transmitter will be burned out.
-
Select an unused FM station in your area.
