Quick Details
-
Brand Name:
-
Yatour
-
Model Number:
-
YTM06
-
Item number:
-
YT-M06
-
Support:
-
USB/SD/AUX IN/Bluetooth
-
bluetooth module:
-
Handsfree phone call , Wireless music play
-
Compatible:
-
Factory fitted radios / aftermarket car radios
-
Compatible car:
-
VW, BMW,Benz,Toyota,Nissan,Citroen,Maz...
-
Delivery terms:
-
DHL ,UPS ,Fedex ,TNT...
Quick Details
-
Combination:
-
Cassette Player, CD-R, CD-RW, Mobile Phone, MP3 / MP4 Players
-
Warranty:
-
1 Years, 12 monthes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yatour
-
Model Number:
-
YTM06
-
Item number:
-
YT-M06
-
Support:
-
USB/SD/AUX IN/Bluetooth
-
bluetooth module:
-
Handsfree phone call , Wireless music play
-
Compatible:
-
Factory fitted radios / aftermarket car radios
-
Compatible car:
-
VW, BMW,Benz,Toyota,Nissan,Citroen,Maz...
-
Delivery terms:
-
DHL ,UPS ,Fedex ,TNT...

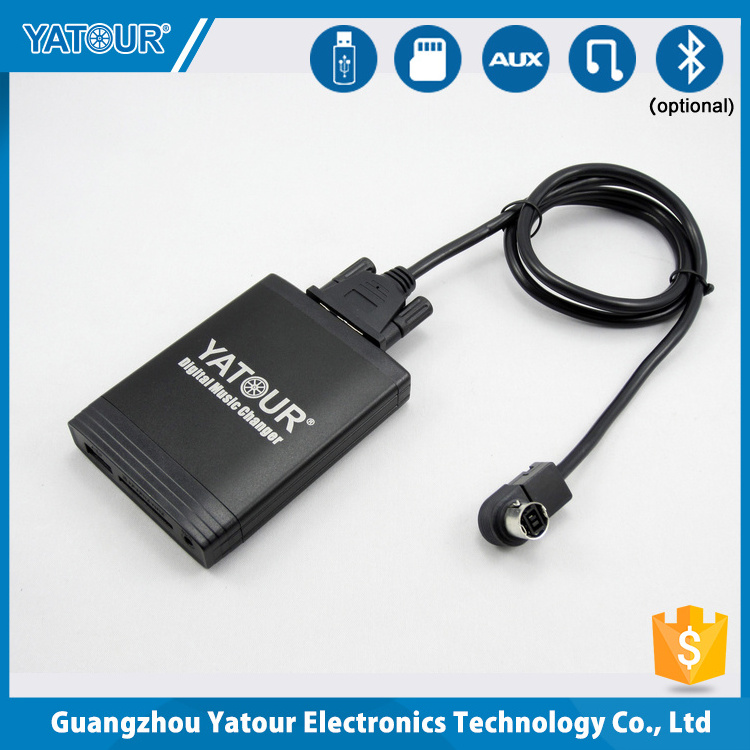

Yatour cd changer usb mp3 for jvc radio
1. Features:
* Support USB / SD / AUX IN ;
* Deliver Original CD quality sound through CD Changer port ;
* Plug and Play ;
* Direct controls from car radio panel ;
* Supports last position memory(LPM) ;
* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;
* Optional Bluetooth function support.
2. Specifications :
| Voltage input:11v~14.6v DC | Operational current: 200mA |
| Standby current : 3mA | Operating Temperature : -35 °C~+85 °C |
| DAC resolution : 20bit | Total harmonic distortion : 0.05% |
| SN ratio : 90dB | Frequency response : 20Hz-20KHZ |
3. Compatible car :
|
YTM06-JVC |
|
Includes: l Module unit for JVC l JVC Unilink plug l AUX cable |
|
|
Compatible With |
JVC (Unilink) |
OEM JVC car stereo |
|
|
Note |
1.
Supports ID3 tags(text display) on some of JVC head units.
|
||
4. Installation Diagram :
This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.
Note : Mp3 / CDC Swith cable is optional , available for some vehicles only.
5. How to save music into folders :
1. Name folders as CD01 ,CD02 ,CD03...etc
2. The naming of songs is unrestricted .
3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .
4. Support mp3 / wma .
Below is showing example .
6. Accessories:
1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual
7. Package:
• Standard packing box : 210 x 150 x 60 mm
• Half-size packing box : 150 x 105 x 60 mm
• Module weight : 90g
• Gross weight : 220g~400g .
