Quick Details
-
Power:
-
<2W
-
Voltage:
-
8-36V
-
Warranty:
-
13 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Luview/OEM/ODM
-
Model Number:
-
JY-PT10+MW77F
-
Host Operating Voltage:
-
12-36V
-
Host Working Current:
-
210mA/12V
-
Host Operating Temperature:
-
-20℃-70℃
-
Host Storage Temperature:
-
-40℃-85℃
-
Radar Operating Voltage:
-
8-36V
-
Radar Working frequency:
-
77-81GHz
-
Radar Operating temperature:
-
-40℃-85℃
-
Radar Power Consumption:
-
<2W
-
Radar Detection distance:
-
50M
-
Radar waterproof level:
-
IP67
Quick Details
-
Car Fitment:
-
Other
-
View Angle:
-
360° Bird View
-
Function:
-
Waterproof, G-Sensor, Split Screen, Parking Line, ADAS, Voice Interaction
-
Power:
-
<2W
-
Voltage:
-
8-36V
-
Warranty:
-
13 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Luview/OEM/ODM
-
Model Number:
-
JY-PT10+MW77F
-
Host Operating Voltage:
-
12-36V
-
Host Working Current:
-
210mA/12V
-
Host Operating Temperature:
-
-20℃-70℃
-
Host Storage Temperature:
-
-40℃-85℃
-
Radar Operating Voltage:
-
8-36V
-
Radar Working frequency:
-
77-81GHz
-
Radar Operating temperature:
-
-40℃-85℃
-
Radar Power Consumption:
-
<2W
-
Radar Detection distance:
-
50M
-
Radar waterproof level:
-
IP67

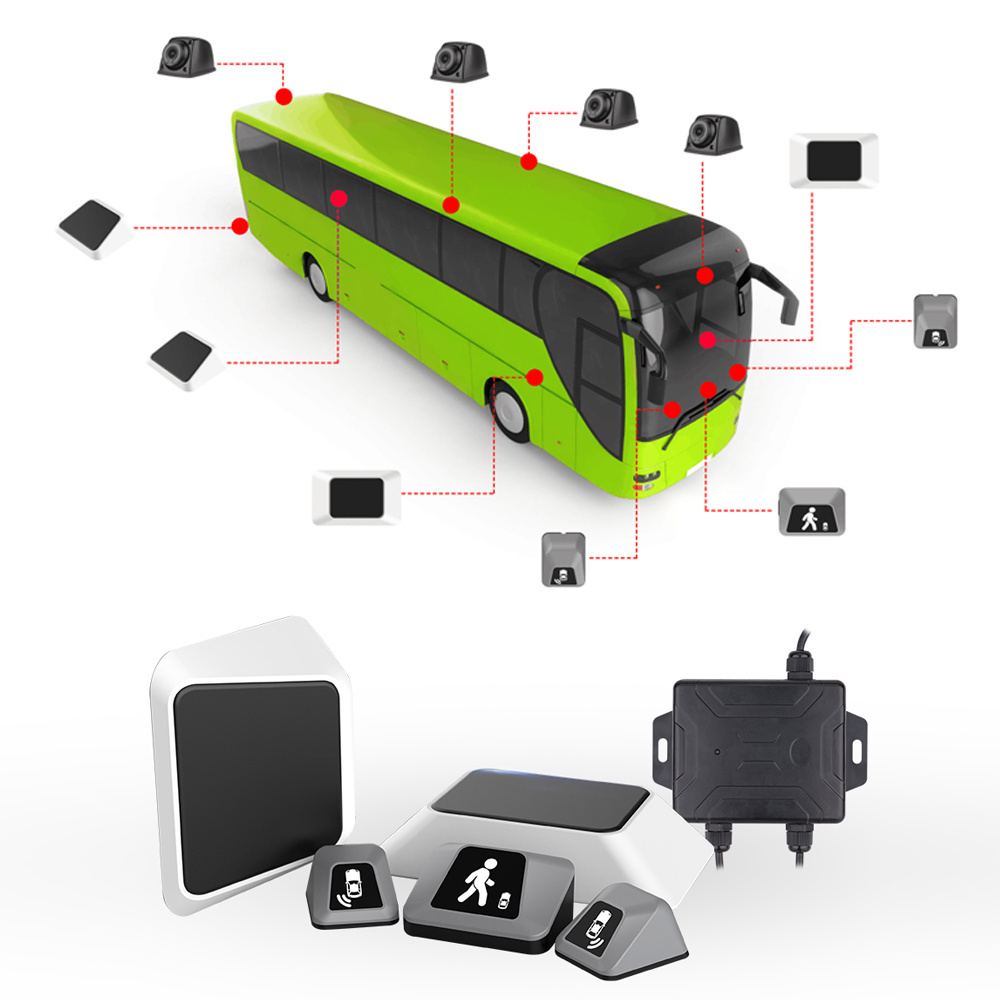

R151 77GHZ 50m Sensing Distance BSD Human Presence Sensor Millimeter Wave Radar Sensor Kit System For Car Bus
This product is a new generation of BSD blind spot monitoring and on-line auxiliary driving radar system. It adopts a 77GHz working frequency millimeter wave radar sensor system with a detection distance of 50 meters. When the detected target is within the early warning range, it sends out a primary and secondary alarm signal, using FMCW modulation. mode, it can detect the distance, speed and angle of the moving target, and has high distance and speed measurement accuracy.This system provides early warning of dangerous targets in the left and right adjacent lanes, includingBSD(Blind spot warning),LCA(vehicle approach warning),RCTs(reversing warning),AOA(overtaking warning) four functions.
| Host box | radar probe | |||
| Operating Voltage | 12-36V | Operating Voltage | 8-36V | |
| Working current | 210mA/12V | Working frequency | 77-81GHz | |
| Operating temperature | -20℃—70℃ | Operating temperature | -40℃-85℃ | |
| Working humidity | RH50%~95% | power consumption | <2W | |
| storage temperature | -40℃—85℃ | waterproof level | IP67 | |
| distance resolution | 0.5M | |||
| Ranging accuracy | 0.18M | |||
| Detection distance | 50M | |||
| installation height | 0.3-1M | |||
| Installation angle | 19℃-21°C | |||
Q: What are your warranty terms?
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.
Q: Are you a real factory?
A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view products.
Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.
Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.
Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.
Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
CEO: "If you want competitive products or custom designed products or OEM your own products or become an agent for a win-win situation, please contact me".
