MT-86L FACTORY LED LCD Display TV screen Panel LASER REPAIR MACHINE FOR COLOR LINE DOT ITO Circuit

MT-86L FACTORY LED LCD Display TV screen Panel LASER REPAIR MACHINE FOR COLOR LINE DOT ITO Circuit

FOB Reference Price: Get Latest Price

≥1 Sets

US $15800

≥3 Sets

US $14800

≥5 Sets

US $13800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: LASER REPAIR MACHINE FOR TV SCREEN PANEL

Model:: MT-86L

Machine type:: Open cell LCD Screen Panel repair Machine

Used for:: 17-86 inches Open cell LCD panel

Application:: LCD Screen panel Color lines/dots/flickering repair

Laser System:: Nd-YAG LASER

Function:: LCD Panel pixel Circuit Cutting, Welding, Cleaning

Usage:: TV, Laptop,Computer Repairing

Advantage:: High Efficiency Low Cost

Certification:: CE

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: MINSTER

Weight (KG):: 980

Product name:: LASER REPAIR MACHINE FOR TV SCREEN PANEL

Model:: MT-86L

Machine type:: Open cell LCD Screen Panel repair Machine

Used for:: 17-86 inches Open cell LCD panel

Application:: LCD Screen panel Color lines/dots/flickering repair

Laser System:: Nd-YAG LASER

Function:: LCD Panel pixel Circuit Cutting, Welding, Cleaning

Usage:: TV, Laptop,Computer Repairing

Advantage:: High Efficiency Low Cost

Certification:: CE

Product Overview

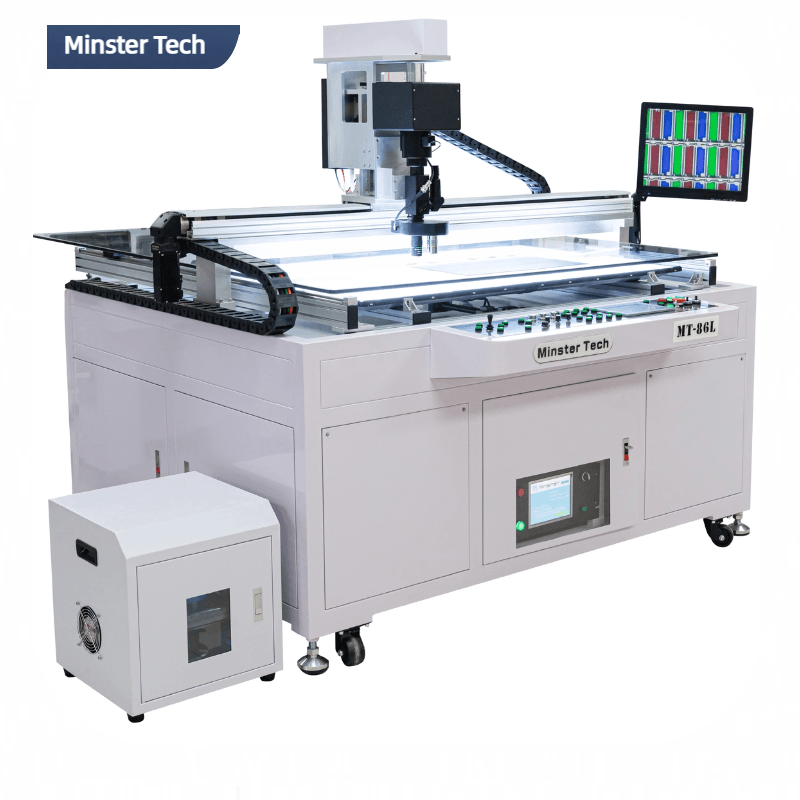

Minster MT-86L FACTORY LED LCD LASER REPAIR MACHINE FOR TV SCREEN PANEL COLOR LINE DOT

laser repair machine is a good combination of advanced laser technology and lcd screen panel repair. It is is now widely used for lcd screen panel repair. Laser Repair Machine can repair TV, laptop, computer and mobile phone products.

laser repair machine Users:
1. COMPUTER/PAD/LAPTOP/TV assembly Factory
2. Branded LED LCD Screen Panel Factory
3.LCD Repair Shops
4.Laptop/Computer/TV service centers

5. TV, Laptop Refurbishment

6. Open Cell LCD Glass Panel dealers

laser repair machine Application:

1. It can repair Defective Color Lines (Horizontal lines and Vertical lines), White Spots, Bright Line, Half line, Multi-line, Dotted line,
color lines, cross lines, white dots, screen display shaking, display flickering, short circuit etc,Caused by short circuit or impurities.
2.Suitable for Display TFT-LCD、IPS、LTPS、OLED, etc.
3. Suitable to All brands of LCD Screen panel repair
4. Support MAX 86 inch Size LCD Panel;
5. Support 2k, 4K,8K LCD Panel repair.

Laser Machine Functions

1. LCD Panel Inspection: 5X/10X/20X lens with high resolution 17 inches monitor, you can use the machine to find the faulty points and analyze the cause for the faulty images.

2. Repair : Use Laser power for Laser cutting the failure pixel circuit and Laser welding Backup spare circuit so as to Re-connect to the Control Circuit of the same pixel lines and Re-gain the Voltage signal.

PRODUCT SPECIFICATIONS

Model:	MT-86L
Applicable to	17-86 Inches
Application	TV/Computer/Laptop LCD screen panel repairing
Main Function	Repair inner pixel and circuit problem for lcd screen panel
Z effective stroke	100mm
X/Y effective stroke	Horizontal 1290mm vertical 725mm
Work surface	*actual size horizontal 1500mm1100mm**
Work surface		The size of the glass table is 1470mm in the horizontal direction and 1100mm in the vertical direction. (If you need to increase the operating range, it is easy to upgrade. Note: The method of extending the glass and the vertical vertical screen of the support frame is strengthened. The operating range is based on the glass table.) The above parameters can basically meet the size of 60 inches. (60-inch screen size parameter: 1443*821)
Display:	17-inch HD display
Spot indication:	digital light + red light
Laser system:	Nd-YAG LASER- free-tuning laser (one laser)
Wavelength:	1064/532 nm dual wavelength
Output power:	7mj
Frequency:	1~10HZ
Lens switching:	electric switching
Multiples:	5 times (Mitutoyo APO) 10 times (Mitutoyo APO) 20 times (Mitutoyo APO NIR)
Output effect:	± 2%
Laser accuracy:	adjustable within ± 10μm
Laser range:	long direction points adjustable
Platform suspension:	airbag
Operating mode:	Electronic control button (86 stepping motor + 90 reducer 1: 5X axis Y axis) (57 motor + 60 reducer 1: 10Z axis)
Input voltage:	AC single phase 220V, 50~60Hz, 10A

FEATURES AT A GLANCE

MT-86L Laser Repair Machine

* applicable to 17-86 inches lcd screen panel.

*Single Nd-YAG LASER- free-tuning laser

* 5X,10X,20X lens equipped for different purposes.
* LASER Working Size Electric Control, with 4 different shapes optional for choice.
* Big Size Working Stage for LCD Panel.
* Inbuilt damping device to avoid images shaking.
* XYZ Axis moving speed can be adjustable and easy to be switched.
* Lens automatic switched and focus fast.
* One 17-inch display High Resolution CCD Monitor with good quality images.

Customer Photos

CUSTOMER VISIT OUR FACTORY

Customer Mustafa visited our factory for checking our laser machine, bonding machine and BGA machine.

Customer in Indonesia

Customer in Indonesia bought our laser machine MT-86L for his TV repair shop.

Why Choose Us

Best Buy Brand Minster Since 2012

Minster Technology Co., Ltd. is an LCD repairing solution provider. We are the manufacture of different equipment for LCD Screen panel repair/refurbishment Industry. Our main products are ACF FLEX/TAB/COF bonding machine, LCD laser repair machine, Polarizer film machines for removal and lamination, BGA rework station and these machine accessories. In the meantime, we are a reseller/distributor of VARIOUS lcd repair parts, tools, and accessories SUCH AS polarizer films, LCD Screen Holders, IC COFs, and original new branded LCD Screen panels etc. Based on the principle of " EXPERTISE, SERVICES AND SOLUTIONS ", we continuously improve and develop automation equipment suitable for various industries and maintenance customers. So far, we have maintained good cooperative relations with large and small enterprises, after-sales service shop owners and individuals all over the world.

1. Quality always come first. OUR TEAM are dedicated to serve our customers with high quality products.

2. Over 10 years LCD Repair industry experience, We are equipped with Expertise knowledge.

3. Excellent pre-sales and after-sales service.

4. Competitive prices

FAQ

Q&A about Minster and LCD repair Laser machine
Q1. Is Minster Techonolgy a factory of Laser Repair machine?
we are a certified manufacturer of Laser machines located in Guangzhou City with about 50 workers and over 10 years’
experience in LCD repair industry. We also supply bonding machines, polarizer film machines and BGA rework Machines.

Q2. How do I choose a laser machine?

First you need to choose a good laser machine with good laser power source. Secondly choose a company with experienced engineers for Laser machine training. Thirdly choose a company with good training method and system. Last but not least, choose a good price.

Q3. How is the warranty for the Laser machine?

We provide one year warranty for our laser machine from the day you get our machine.

Q4. Will you provide free accessories for the laser machine?
There is no need to have extra accessories for the laser machine. You can use it for LCD repairing directly.

Q5.Is it difficult to assemble the Laser machines when received?
No. we will provide detailed instruction sheets and videos for assembling the Laser machine.

Q6. Is it difficult to learn how to use the Laser machine?

It is easy to learn how to operate our Laser machine. We have detailed documents and videos to show you how to operate step by step.

Q7. How about training for the Laser Machine?

There are several steps for training. First basic operation for our laser machine, you need to learn how to using cutting and welding function. Secondly we will teach you how to repair simple cases for LCD panel while teaching you some basic principles. Thirdly we will teach you to repair the panel on your hands case by case.

Q8. How to deliver the machine to my country?

Due to weight and size of our machines, we recommend the machine is delivered by sea.

Q 9. When can you ship the machine after payment?
It will take 7-10 days to make the laser machines.

Q10. How is your payment method?

We are Alibaba trade assurance user. You can order on Alibaba directly and also you can choose to pay our USD bank account. West Union is also accepted.
