Quick Details
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
1 - 650 mm
-
Throat Depth (mm):
-
80 mm
-
Brand Name:
-
super
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3800 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3750x1550x1500
-
Year:
-
2022
-
Type:
-
Shearing Machines
-
Rated Power:
-
5.5kw
-
Name:
-
sheet metal plate mechanical shears machine
-
Model Number:
-
QH11D-3.2X3200
-
Shearing Thickness:
-
3.2mm
-
Shearing Width:
-
3200mm
-
Number of Stroke:
-
47/min
-
Backgauge:
-
0-650mm
-
Height of worktable:
-
800mm
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
3.2 mm
-
Shearing Angle:
-
1°30, 1.45degree
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
1 - 650 mm
-
Throat Depth (mm):
-
80 mm
-
Brand Name:
-
super
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3800 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3750x1550x1500
-
Year:
-
2022
-
Type:
-
Shearing Machines
-
Rated Power:
-
5.5kw
-
Name:
-
sheet metal plate mechanical shears machine
-
Model Number:
-
QH11D-3.2X3200
-
Shearing Thickness:
-
3.2mm
-
Shearing Width:
-
3200mm
-
Number of Stroke:
-
47/min
-
Backgauge:
-
0-650mm
-
Height of worktable:
-
800mm
Product Description

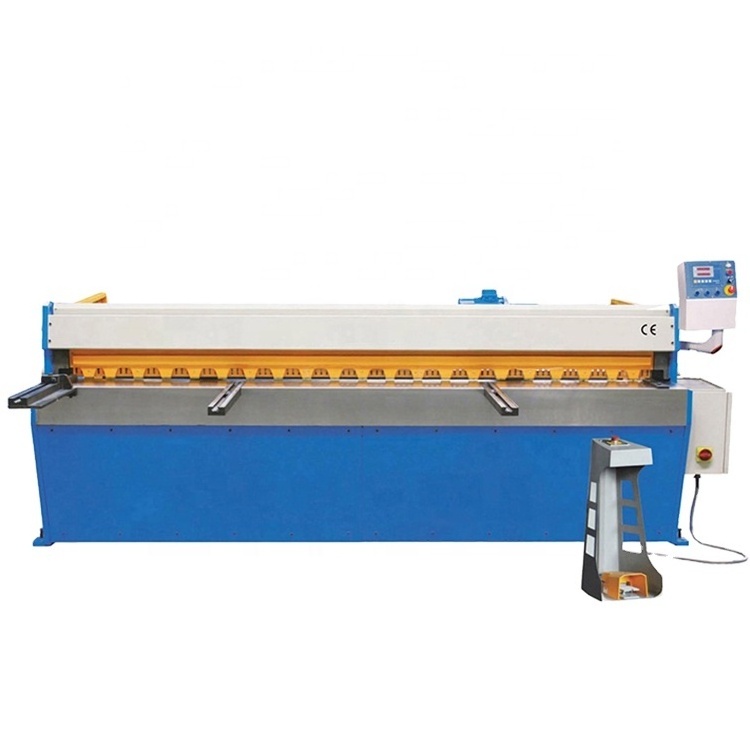

high accurancy E21s PLC controller sheet metal plate mechanical shear machine with motorized back gauge
Product Application
1. Estun E21S controller (optional button controller)
2. One of the most advanced miniature mechanical shear
3. Heavy steel weld construction for maximum stability
4. Free of the maintenance of a hydraulic circuit
5. Electro mechanical operation for high stroke rate (option manual back gauge control)
6. Equips with electric brake motor for fast and efficient and almost silent working
7. Small cutting angle and cutting direction for improving the cutting quality
8. Disc spring device to ensure the cutting precision
|
Model
|
shear capacity (mm)
|
shear angle (degree)
|
strokes (min
-1
)
|
backgauge range (mm)
|
table height (mm)
|
motor power (kw)
|
G.W (KG)
|
|
QH11D
|
2.5x1300
|
1°30'
|
47
|
0~650
|
800
|
5.5
|
1450
|
|
QH11D
|
2.5x1600
|
1°20'
|
47
|
0~650
|
800
|
5.5
|
1650
|
|
QH11D
|
2.5x1800
|
1°20'
|
47
|
0~650
|
800
|
5.5
|
1750
|
|
QH11D
|
2.5x2000
|
1°30'
|
47
|
0~650
|
800
|
7.5
|
1800
|
|
QH11D
|
2.5x2500
|
1°20'
|
47
|
0~650
|
800
|
7.5
|
2200
|
|
QH11D
|
2.5x3050
|
1°30'
|
47
|
0~650
|
800
|
11
|
2800
|
|
QH11D
|
3.2x1300
|
1°30'
|
47
|
0~650
|
800
|
5.5
|
1600
|
|
QH11D
|
3.2x1500
|
1°30'
|
47
|
0~650
|
800
|
5.5
|
2000
|
|
QH11D
|
3.2x2000
|
1°45'
|
47
|
0~650
|
800
|
7.5
|
2400
|
|
QH11D
|
3.2x2500
|
1°'
|
47
|
0~650
|
800
|
7.5
|
2800
|
|
QH11D
|
3.2x3050
|
1°18'
|
47
|
0~650
|
800
|
11
|
3200
|
Detailed Images
Front support arm
Estun E21S PLC controller
Back gauge cover
motorized back gauge move
Optional Configuration
manual back gauge with button controller (optional)
