Tyre shredder is used for crushing the whole waste steel wire radial tire under normal temperature. The tire rubber chips are less
than 50x50mm.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Customizable
-
Dimension(L*W*H):
-
3100x2500x2550mm
-
Year:
-
2024
-
Weight (KG):
-
5000 kg
-
Power (kW):
-
35
-
Name:
-
Waste Tyre Recycling Machine Whole Waste Truck Tire Shredder Machine
-
Input:
-
Max input tire outer diameter 900mm
-
Capacity:
-
0.8-2Ton/h
-
End product:
-
50x50mm tire chips
-
Material:
-
Carbon steel
-
Main shaft speed:
-
16 r/min
-
Motor brand:
-
SIEMENS
-
Application:
-
Recycle tyres into chips
-
Operation:
-
Automatic electric buttons controller
-
Keyword:
-
Tire recycling machine tyre shredder
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Model Number:
-
ZPS-800
-
Voltage:
-
Customizable
-
Dimension(L*W*H):
-
3100x2500x2550mm
-
Year:
-
2024
-
Weight (KG):
-
5000 kg
-
Power (kW):
-
35
-
Name:
-
Waste Tyre Recycling Machine Whole Waste Truck Tire Shredder Machine
-
Input:
-
Max input tire outer diameter 900mm
-
Capacity:
-
0.8-2Ton/h
-
End product:
-
50x50mm tire chips
-
Material:
-
Carbon steel
-
Main shaft speed:
-
16 r/min
-
Motor brand:
-
SIEMENS
-
Application:
-
Recycle tyres into chips
-
Operation:
-
Automatic electric buttons controller
-
Keyword:
-
Tire recycling machine tyre shredder

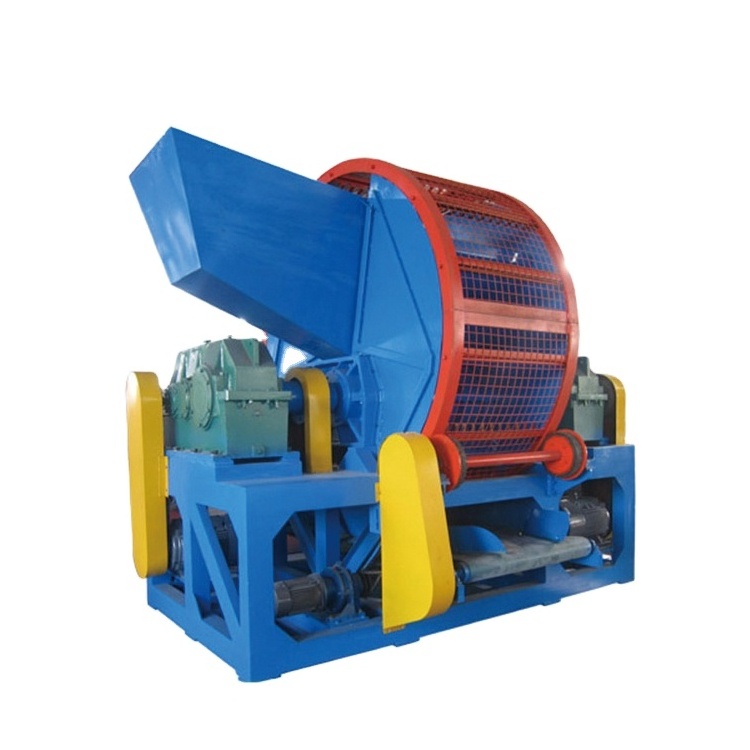

Industrial Waste Tyre Recycling Machine Portable Whole Waste Truck Tire Shredder Machine For Sale In India
|
Model
|
ZPS-800
|
Discharging Motor
|
3Kw
|
|
Capacity
|
0.8-2Ton/hour
|
Cutter rotate speed
|
16r/min
|
|
Specification of feeding
|
<900mm
|
Screener rotate speed
|
6r/min
|
|
Specification of discharging
|
≤50x50mm
|
Weight
|
5T
|
|
Motor Power
|
17.5Kw x 2
|
Dimension
|
3100x2500x2550mm
|
Introduction
Structure and principle
The shredding chamber adopts folio compact structure for easy maintenance;
The shredding blades edges are made of hard alloy after special hardness treatment, wear-proof. Heavy-duty, advanced technology and high output;
The machine adopts low noise, steady and high torque planet-gear speed reducer, easy and safe operation;
The rotary screener is of steel net structure which has large area for screening qualified size of tire chips to discharge quickly.
Low consumption, high output and advanced technology.
Motors Of Shredder
·
Simens Brand
·
·
Two main motors, one motor for Rotating Screener and discharging conveyor
Knives Of Shredder
·
Normal Knives
·
Detachable Knives
TIRE SHREDDER
Input
·
Cut tires scraps
·
Tire after debeading
Output
Q: When we establish one kind of shredder machine, can we use it to shred other materials?
Q: What About The Machine Installation?
Q: How About The Spare Parts?
A: Yes, you can. We will design theshredder machine for you as per your materials.
Q: How to choose a suitable shredder?
A: Please tell us your raw material and what capacity you need, we will recommend you the most suitable shredder.
Q: What About The Machine Installation?
A: For the Waste Tire Shredder / Rubber Crusher / Old Tire Recycling Machine installation,
we will provide you the wire connection drawing and technical support, normally you can finish by yourself;
we will provide you the wire connection drawing and technical support, normally you can finish by yourself;
but if you really need our technician, we will send technician to your working site as required.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will you test the shredder machine before delivery?
A: Yes, we will test every machine and production line before delivery and send you the working video.
You also can come to us for inspection before delivery.
