Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
LONGI
-
Model Number:
-
LR5-72HBD 530-550M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2256*1133*35mm
-
Application:
-
Solar power system
-
Junction Box:
-
IP68
-
Weight:
-
32.3KG
-
OEM Order:
-
Acceptable
-
Packing:
-
30pcs per pallet
-
Frame:
-
Anodized Aluminium Alloy
-
Solar cell:
-
182*182mm
-
Glass:
-
3.2mm Tempered Low Iron
-
Certificate:
-
CE / TUV / ISO
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Bifacial, Double-glass, BIPV
-
Panel Efficiency:
-
21.1%
-
Warranty:
-
30 years
-
Brand Name:
-
LONGI
-
Model Number:
-
LR5-72HBD 530-550M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2256*1133*35mm
-
Application:
-
Solar power system
-
Junction Box:
-
IP68
-
Weight:
-
32.3KG
-
OEM Order:
-
Acceptable
-
Packing:
-
30pcs per pallet
-
Frame:
-
Anodized Aluminium Alloy
-
Solar cell:
-
182*182mm
-
Glass:
-
3.2mm Tempered Low Iron
-
Certificate:
-
CE / TUV / ISO
Introduction
Parameter

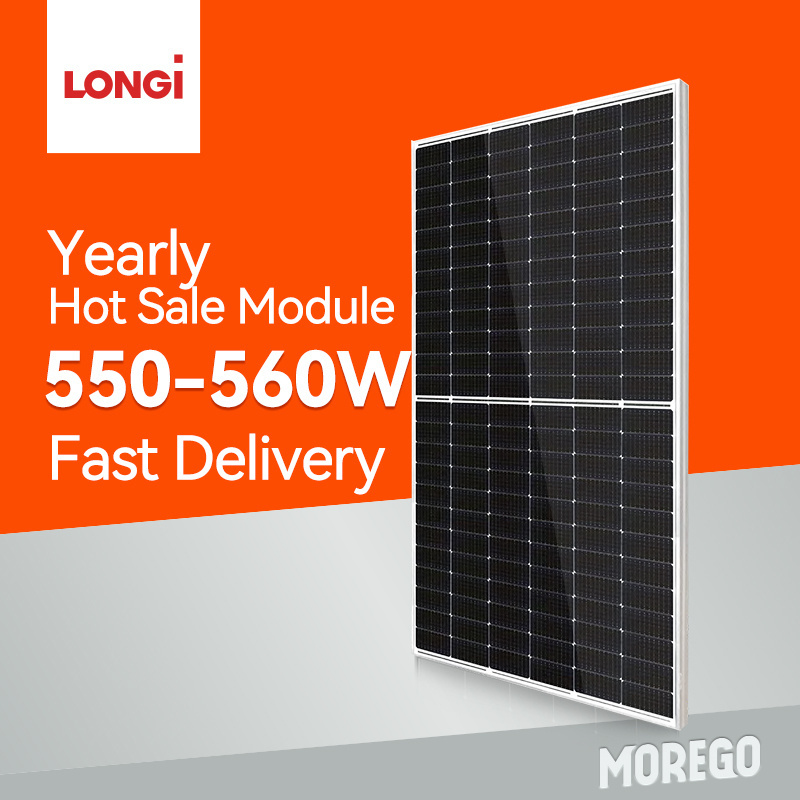

Original Longi solar Hi-MO5m, Grade A
144 cells solar panel 545w 550w 555w 560w
|
MECHANICAL DATA
|
|
|
|
|||
|
Module Dimensions
|
2278*1134mm*35mm
|
|
|
|||
|
Weight
|
27.2kg
|
|
|
|||
|
Glass
|
Single glass, 3.2mm coated tempered glass
|
|
|
|||
|
Junction-Box
|
IP 68, three diodes
|
|
|
|||
|
Cables
|
4mm2, positive 400 / negative 200mm, length can be customized
|
|
|
|||
|
Cell Orientation
|
144cells(6*24)
|
|
|
|||
|
ELECTRICAL CHARACTERISTICS
|
|
|
|
|
||||
|
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
|
|
|
|
|
||||
|
Model
|
LR5-72HPH-545M
|
LR5-72HPH-550M
|
LR5-72HPH-555M
|
LR5-72HPH-560M
|
||||
|
Max. Power
|
545
|
550
|
555
|
560
|
||||
|
Open Circuit Voltage
|
49.65
|
49.80
|
49.95
|
50.10
|
||||
|
Short Circuit Current
|
13.92
|
13.98
|
14.04
|
14.10
|
||||
|
Max. Power Voltage
|
41.80
|
41.95
|
42.10
|
42.25
|
||||
|
Max. Power Current
|
13.04
|
13.12
|
13.19
|
13.26
|
||||
|
Efficiency²
|
21.1
|
21.3
|
21.5
|
21.7
|
||||
Longi solar Genuine
