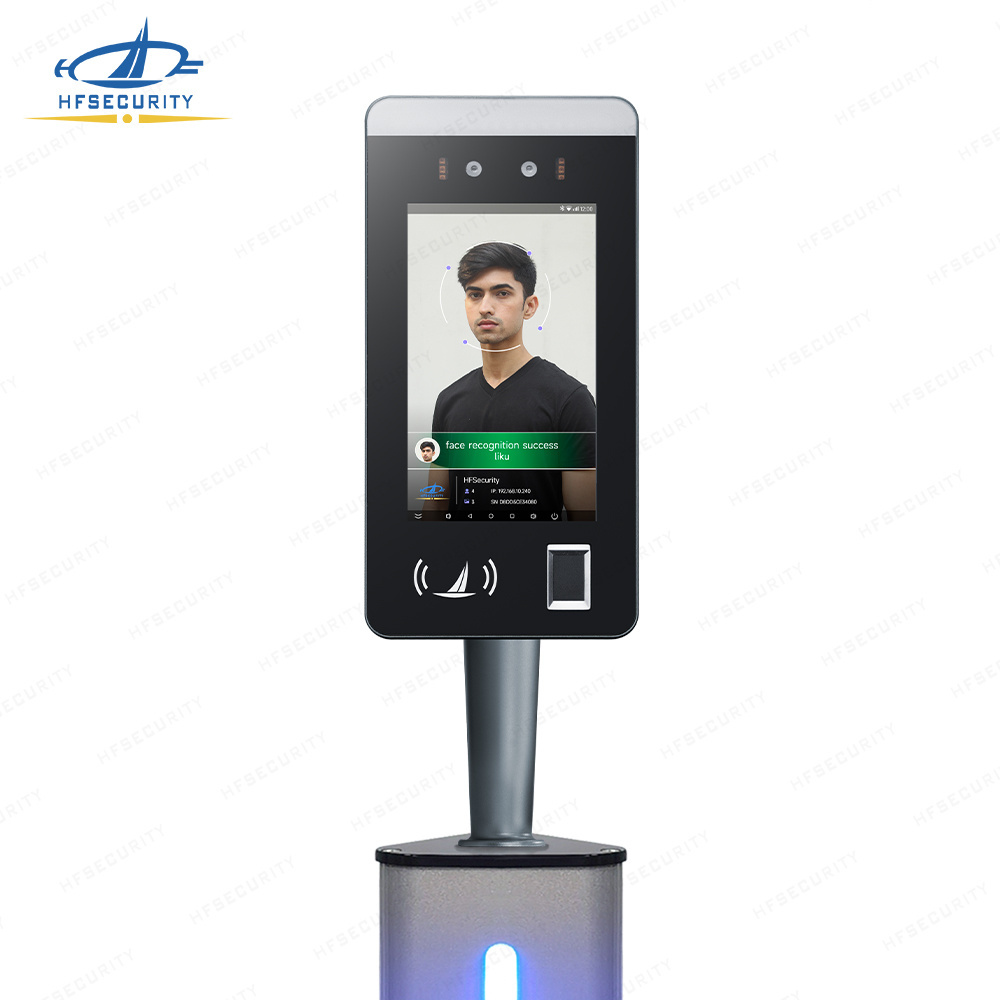

FR07 is an 7 inch face recognition terminal,android 11 system,
with face recognition function, QR Code function, RFID function, 4G function
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HFSecurity
-
Model Number:
-
FR07
-
Product name:
-
Fingerprint NFC Facial Access Control
-
Operating System:
-
Android 11
-
Memory:
-
2+16GB; Optional 4+32GB
-
Touch Screen:
-
7-inch; 1024*600
-
Dual Camera:
-
5.0M (RGB Camera); 2.0M (Infrared Camera)
-
Interface:
-
Audio, USB2.0, RS232*2, Wiegand input/output, OTG*1
-
Communication:
-
WiFi, Blueth, TCP/IP
-
Face Capacity:
-
50,000
-
CPU:
-
Quad-core 2.0GHz
-
Dimensions:
-
261*124*20mm
Quick Details
-
Special Features:
-
Motion Detection, Abnormal sound detection, RESET, Alarm I/O, Waterproof / Weatherproof, Two-way Audio, Thermal image, Temperature Measurement, NIGHT VISION, Built-in Siren, One-way Audio, Other
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
HFSecurity
-
Model Number:
-
FR07
-
Product name:
-
Fingerprint NFC Facial Access Control
-
Operating System:
-
Android 11
-
Memory:
-
2+16GB; Optional 4+32GB
-
Touch Screen:
-
7-inch; 1024*600
-
Dual Camera:
-
5.0M (RGB Camera); 2.0M (Infrared Camera)
-
Interface:
-
Audio, USB2.0, RS232*2, Wiegand input/output, OTG*1
-
Communication:
-
WiFi, Blueth, TCP/IP
-
Face Capacity:
-
50,000
-
CPU:
-
Quad-core 2.0GHz
-
Dimensions:
-
261*124*20mm
Product Description
HFSecurity FR07 Waterproof Time Attendance Software SDK NFC Fingerprint Face Recognition Access Control Door Lock
Product Introduction
Face access control deviceFR07 is a product under the category of Huifan dynamic face attendance access control, this machine uses the world’s leading facial algorithm company Kuang Shi’s face facial 3D algorithm, with a high-speed processor.
Efforts to achieve the standard of international first-class industrial design, whether from the appearance or hardware, software, we are pursuing to have the ultimate quality.
FR07 is a 7-inch facial fingerprint recognition access control machine developed by Huifan Technology, FAP10 fingerprint head, data 1:1 recognition pairing, Face++ facial algorithm, facial precision recognition.
1. Face & NFC & Fingerprint Time Attendance Door Access Control
2. 7-inch Touch Screen is 1024*600 resolution
3. Memory RAM 2GB+ROM 16GB; Optional 4GB+32GB
4. Interface: Audio, USB2.0, RS232*2, Wiegand input/output, OTG*1
5. Communications: WiFi, Blueth, TCP/IP
6. Free Cloud Software; SDK/API
Demo video:
https://www.youtube.com/@Hfcctv/search?query=FR07
Specification
|
Dimension
|
261*124*20mm
|
|
|
|
OS
|
Android 11
|
|
|
|
Biometric Verify
|
Face & Fingerprint & NFC Card
|
|
|
|
Memory
|
RAM 2GB+ROM 16GB; Optional 4GB+32GB
|
|
|
|
LCD
|
7 inch Touchscreen; 1024*600 Resolution
|
|
|
|
Power Supply
|
Support DC 5W MAX
|
|
|
|
RFID
|
Support ISO/IECC1443 Type A&B, 13.56MHz
|
|
|
|
CPU
|
Quad-core 2.0GHz
|
|
|
|
Certification
|
CE, FBI, GMS
|
|
|
|
Cameras
|
5.0M (RGB Camera); 2.0M (Infrared Camera)
|
|
|
|
Communication
|
Bluetoth & WiFi & TCP/IP
|
|
|
|
SDK
|
Full Open Android Free SDK
|
|
|
|
Software
|
Ready time attendance access control cloud software
|
|
|
|
Interface
|
USB & DC & Wiegand 26/34 & RJ45 & RS232/RS485 & Relay
|
|
|
|
Fingerprint
|
508DPI FBI Certificated FAP10 Fingerprint Sensor
|
|
|
|
Fingerprint Standard
|
Support ANSI378/381, ISO19794-2/-4
|
|
|
|
Image Format
|
WSQ, RAW, jpg, etc
|
|
|
|
Face Algorithm
|
Megevill
|
|
|
|
Face Capacity
|
50,000
|
|
|
