Quick Details
-
Brand Name:
-
E.P
-
Voltage:
-
220v/380v/400v/415v
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
2300x900x1800mm
-
Product Name:
-
Rotary Type Shisha Charcoal Press Machine
-
Finished Products:
-
Shisha Charcoal Briquettes
-
Power:
-
7.5+11kw
-
Capacity:
-
13000~30000 pieces per hour
-
Rotating speed:
-
10~24rpm
-
Dia. of shisha:
-
20-50mm
-
Raw Material:
-
charcoal, coal, coke, coconut shell, bamboo, rice husk, sawdust
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
Quick Details
-
Warranty:
-
1 Year
-
Core Components:
-
pressure equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
E.P
-
Voltage:
-
220v/380v/400v/415v
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
2300x900x1800mm
-
Product Name:
-
Rotary Type Shisha Charcoal Press Machine
-
Finished Products:
-
Shisha Charcoal Briquettes
-
Power:
-
7.5+11kw
-
Capacity:
-
13000~30000 pieces per hour
-
Rotating speed:
-
10~24rpm
-
Dia. of shisha:
-
20-50mm
-
Raw Material:
-
charcoal, coal, coke, coconut shell, bamboo, rice husk, sawdust
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
Product Description
Products Description

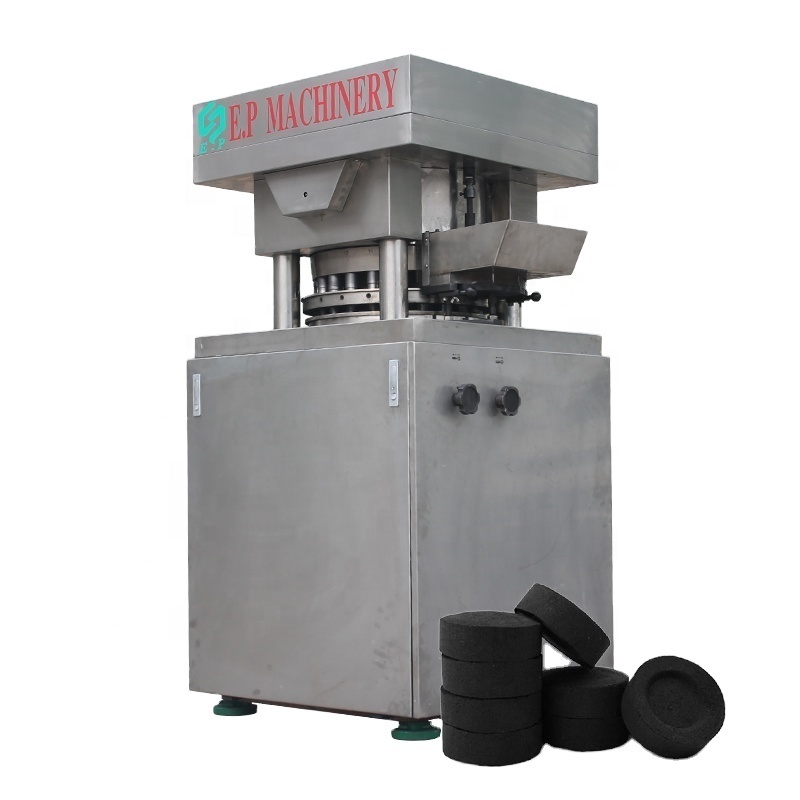

Rotary Type Shisha Charcoal Press Machine is used for pressing charcoal powder into round shape charcoal tablets for shisha. Thespeed of the turntable, the filling depth of the material, and the thickness of the tablet can be adjusted.
Features
1. High speed and high output. 13000~30000 pieces per hour.
2. PLC and intelligent computer control system with touch operation screen.
3. Separate electric control cabinet, which makes the operation more safer
4. EU & ASTM standard, Equipped with overload protection device, which can prevent damage to the machine
3. Separate electric control cabinet, which makes the operation more safer
4. EU & ASTM standard, Equipped with overload protection device, which can prevent damage to the machine
|
Model
|
HSJX-XZ21
|
|
power
|
75+0.37+0.37KW
|
|
Capacity
|
22680pcs/hour
|
|
Diameter of briquettes(mm)
|
25*25*(15-25)
|
|
Overall size
|
1700*1150*195 0mm
|
|
Weight(kg)
|
2100 KG
|
Production Line
Shisha charcoal production line
We have A wealth of project experience and can provide complete technical guidance and integrated installation services.
A shisha charcoal briquette production line consists of rotary carbonation furnace, roller crusher, spiral mixer, shisha charcoal briquette making machine, drying machine and several conveyors.
Rotary Carbonation Furnace
Rotary carbonation furnaces
are
used for carbonizing materials that are shorter than 15mm.
Charcoal Crusher
Charcoal crusher machine can mill the carbonized charcoal material into fine powder about 1-5mm long.
Automatic
Weighing Hoppers
Weighing hoppers can weigh charcoal powder and binding agent in a precise ratio. The usage of weighing hoppers makes the production line more automatic.
Shisha charcoal briquette machine
Rotary Type Shisha Charcoal Press Machine is used for pressing charcoal powder into round shape charcoal tablets for shisha.
Charcoal Briquettes Dryer
The drying machine is powered by electricity, so it will not cause any pollution to environment. Clean, convenient and safe drying equipment.
Finished Products
The finished shisha charcoal tablets produced by this machine are with high density, perfect shape, good appearance. Meanwhile, it is easy for combustion, no smell and long burning time.
Certifications
Why choose us
Our Advantages
1. We have a wealth of project experience and can provide complete technical guidance.
2. Provide integrated installation and complete guidance services
Strong Technical Team
Customized service:
customize equipment according to your requirements.
Installation service: send our workers to your country to install the production line.
Installation service: send our workers to your country to install the production line.
Packaging & Shipping
Packaging Specification:
Outside Package : Wooden Packing as Exported Standard.
Inner Package : Stretch Film
About Shipping
We can be responsible for the shipping according to the customers's requirments to ship the machines by sea, express or air. Besides, we can cooperate with your agent if you have shipping forwarder in China.
