Quick Details
-
Brand Name:
-
YingKe
-
Model Number:
-
YK-MPPT2
-
Work Time (h):
-
24
-
Max PV Power:
-
13440w
-
Max PV Voltage:
-
230V
-
Certificate:
-
CE
-
Warranty:
-
3
-

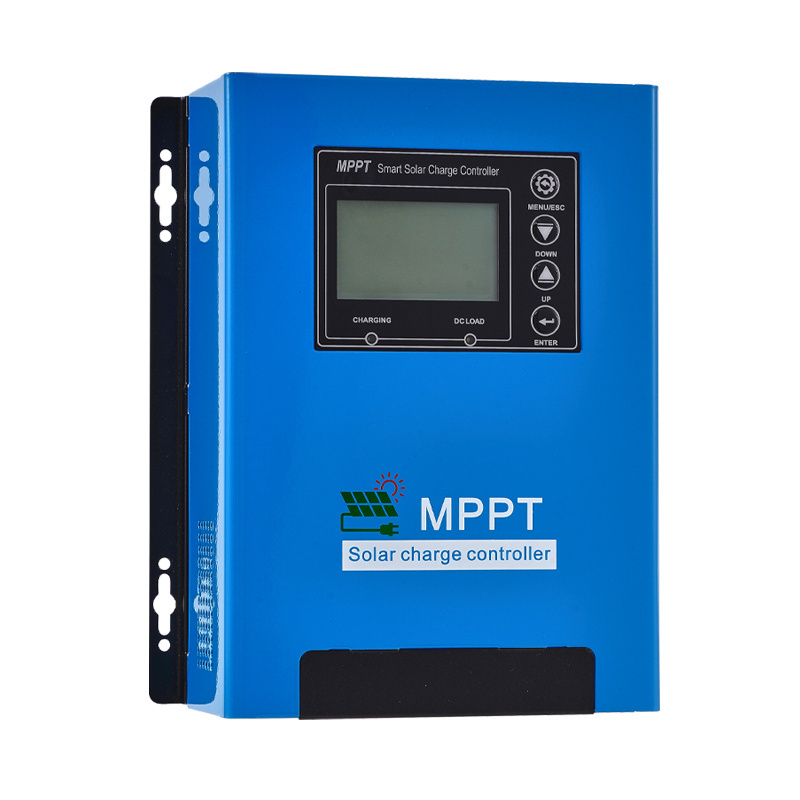

Product name:
-
Solar panel charge controller MPPT
-
Charge mode:
-
MPPT automatic maximum power point tracking
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
MPPT efficiency:
-
99.97%
-
Feature:
-
Mppt Solar Charger Controller
-
Keywords:
-
MPPT Charger Controller
-
Max PV Input Power:
-
DC170V
-
Rated Voltage:
-
12v/24V/36/48/72V/96V Auto Switch
-
Display:
-
LCD/LED Display
-
OEM & ODM:
-
Welcomed
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YingKe
-
Model Number:
-
YK-MPPT2
-
Work Time (h):
-
24
-
Max PV Power:
-
13440w
-
Max PV Voltage:
-
230V
-
Certificate:
-
CE
-
Warranty:
-
3
-
Product name:
-
Solar panel charge controller MPPT
-
Charge mode:
-
MPPT automatic maximum power point tracking
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
MPPT efficiency:
-
99.97%
-
Feature:
-
Mppt Solar Charger Controller
-
Keywords:
-
MPPT Charger Controller
-
Max PV Input Power:
-
DC170V
-
Rated Voltage:
-
12v/24V/36/48/72V/96V Auto Switch
-
Display:
-
LCD/LED Display
-
OEM & ODM:
-
Welcomed
Products Description
|
Technical Parameter
|
|
|
|
|
|
|
||||||
|
Model No.
|
|
MPPT-50
|
MPPT-60
|
MPPT-80
|
MPPT-100
|
MPPT-120
|
||||||
|
Rated Charge Current
|
|
50A
|
60A
|
80A
|
100A
|
120A
|
||||||
|
Charge Voltage
|
|
12V/24V/48V
|
|
48V/96V
|
|
|
||||||
|
Charging pattern
|
MPPT automatic maximum power point tracking
|
|
|
|
|
|
||||||
|
System type
|
12V/24V/48V/96V
|
Auto sensing / Manual setting
|
|
|
|
|
||||||
|
Static power
|
12V/24V/48V/96V
|
≤ 2W
|
|
|
|
|
||||||
|
Overall efficiency
|
12V/24V/48V/96V
|
≥96.5%
|
|
|
|
|
||||||
|
PV modules utilization
|
12V/24V/48V/96V
|
≤ 99.97%
|
|
|
|
|
||||||
|
Input characteristic
|
|
|
|
|
|
|
||||||
|
MPPT working voltage range
|
12V SYSTEM
|
DC18V-DC175V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC34V-DC175V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC65V-DC175V
|
|
|
|
|
||||||
|
|
96V SYSTEM
|
DC130V-DC230V
|
|
|
|
|
||||||
|
Input low
voltage protection
|
12V SYSTEM
|
DC16V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC30V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC60V
|
|
|
|
|
||||||
|
|
96V SYSTEM
|
DC12V
|
|
|
|
|
||||||
|
|
12V SYSTEM
|
DC18V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC34V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC65V
|
|
|
|
|
||||||
|
|
96V SYSTEM
|
DC130V
|
|
|
|
|
||||||
|
Input voltage limit
|
|
12/24/48-DC175V 96V-DC230V
|
|
|
|
|
||||||
|
Input over-voltage protection
|
|
12/24/48-DC180V 96V-DC240V
|
|
|
|
|
||||||
|
Input over-voltage recovery
|
|
12/24/48-DC175V 96V-DC230V
|
|
|
|
|
||||||
|
Solar panel maximum input power
|
12V SYSTEM
|
700W
|
900W
|
1140W
|
1400W
|
1680W
|
||||||
|
|
24V SYSTEM
|
1400W
|
1700W
|
2260W
|
2600W
|
3360W
|
||||||
|
|
48V SYSTEM
|
2800W
|
3400W
|
4540W
|
5600W
|
6720W
|
||||||
|
|
96V SYSTEM
|
5600W
|
7200W
|
9120W
|
11200W
|
13440W
|
||||||
|
Output characteristic
|
|
|
|
|
|
|
||||||
|
Battery type available (Defaut to lead-acid
battery) |
12V/24V/48V
|
Maintenanc-free lead acid battery, colloidal battery, liquid battery, LIFEPO4 lithium series battery (other types of batteries are available by customizing)
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Protect current
|
12V/24V/48V
|
52A
|
62A
|
82A
|
102A
|
122A
|
||||||
|
Protection
|
|
Input high voltage, Input connection, output connection, short circuit, over temperature, high temperature protection.
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Noise
|
|
50dB
|
|
|
|
|
||||||
|
Cooling
|
|
Intelligent fan cooling, low temp. fan runs slow or stop.
|
|
|
|
|
||||||
|
Size
|
|
252*206*82
|
|
330*273*124
|
|
|
||||||
|
Package size
|
|
310*250*150
|
|
380*315*175
|
|
|
||||||
|
Net Weight （kg)
|
|
3.3
|
3.7
|
6.8
|
7.5
|
7.8
|
||||||
|
Gross Weight （kg)
|
|
3.8
|
4.2
|
7.3
|
8
|
8.8
|
||||||
|
*Products Specification are subjected to changed without further notice.
|
|
|
|
|
|
|
||||||
Q1
: Does your company also provide other solar products except MPPT Solar Controller?
A1
: Yes, we also provide other solar products, like Pure Sine Wave Inverter, poly solar panel, off grid solar inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q2
:What is our advantage ?
A2
:We have professional R&D team, can customized the products you want.
Q3
: How to choose a right inverter?
A3
: Tell us your demand, then our sales manage will recommend a suitable inverter to you.
Q4
: How about the delivery time?
A4
: 3 days for sample; 5-25 days for bulk order.
Q5
: What is the warranty of inverter?
A5
: 3 year warranty.
Q6
: How can we guarantee quality? How to solve the technical problem?
A6
: Always a pre-production sample before mass production;Always final Inspection before packing.
24 hours after-service consultancy just for you and to make your problem to solve easily.
