Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XS
-
Brand Name::
-
LSF490FN06-L TV LCD Display
-
Resolution::
-
3,840 x 2,160
-
Configuration::
-
RGB Vertical Stripe
-
Glass Size::
-
TFT : 1083.78(H) x 615.35(V) CF : 1083.78(H) x 613.50(V)
-
Active Display Area::
-
1073.78(H) x 604.00(V)
-
Application::
-
LCD TV repair Broken TV replacement
Quick Details
-
Type:
-
a-Si TFT-LCD, CELL
-
Display Size:
-
49 inch
-
Supplier Type:
-
China Manufacturer Supply
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XS
-
Brand Name::
-
LSF490FN06-L TV LCD Display
-
Resolution::
-
3,840 x 2,160
-
Configuration::
-
RGB Vertical Stripe
-
Glass Size::
-
TFT : 1083.78(H) x 615.35(V) CF : 1083.78(H) x 613.50(V)
-
Active Display Area::
-
1073.78(H) x 604.00(V)
-
Application::
-
LCD TV repair Broken TV replacement
Recommend Products
Product Description

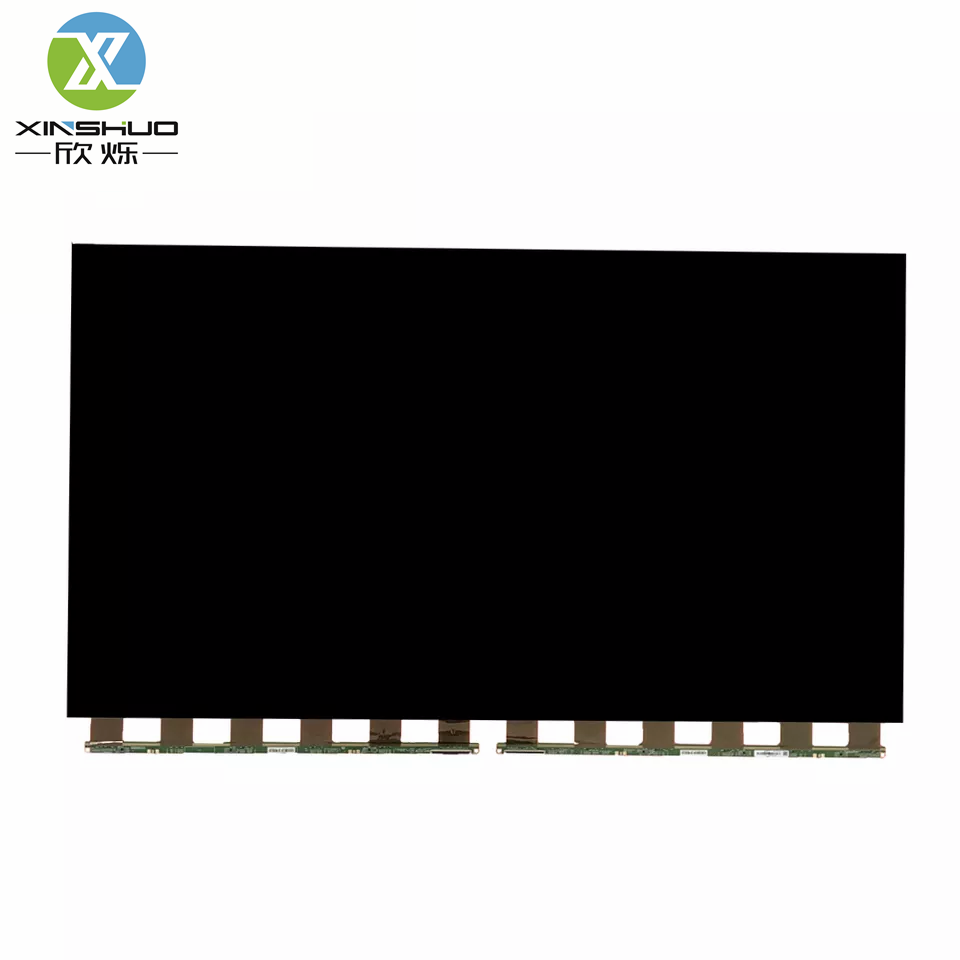

High Quality Open Cell TFT LSF490FN06-L Samsung Sony 49 inch LCD Screen Replacement Broken TV Display Panel 3840x2160
|
Brand
|
Samsung Display
|
Model
|
LC490DUY-SHA2
|
|
Diagonal Size
|
49 inch
|
Panel Type
|
a-Si TFT-LCD , CELL
|
|
Glass Size
|
TFT : 1083.78(H) x 615.35(V)
CF : 1083.78(H) x 613.50(V) |
General Grade
|
A Grade
|
|
Active Area
|
1073.78(H) x 604.00(V)
|
Signal Type
|
USI-T
|
|
Panel Size
|
1083.78(H) x 615.50(V)
1.30(D)
Glass Thickness : CF 0.4, TFT 0.5
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
Display Colors
|
16.7M (True Display)
1.07B (Dithered 10bit) |
Display Mode
|
IPS, Normally Black, Transmissive
|
|
Number of Pixels
|
3,840 x 2,160
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|
Pixel Arrangement
|
RGB Vertical Stripe
|
Hardness
|
Hard coating 2H
|
|
Weight
|
1.8KGS(Typ.)
|
Frequency
|
60Hz
|
|
Display Mode
|
Normally Black
|
Touch Screen
|
Without
|
|
Display Mode
|
7G (AG)
|
Application
|
Repair TV LCD Broken
|
|
Haze
|
2.3%
|
Light Source
|
No B/L
|
Description:
This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components.
This model is composed of a TFT LCD panel, a driver circuit, and an ass’y KIT of source PBA. This
49.0” model has a resolution of a 3840 x 2160 and can display up to 16.7 million colors(Dithered
1.07B) with the wide viewing angle of 89° or a higher degree in all directions. This panel is
designed to support applications by providing a excellent performance function of the flat panel
display such as home-alone multimedia TFT-LCD TV and a high definition TV.
Feature:
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with the wide color gamut
SVA(Super vertical align) mode
Wide viewing angle (±178°)
High speed response
UHD resolution (3840 x 2160, 16:9)
Low power consumption
DE (Data enable) mode
Under 8hrs a day available for Black Fog Mura
30,000hrs available for Black Fog Mura
The interface of USI-T (TCON~S-PCB)
High contrast ratio & aperture ratio with the wide color gamut
SVA(Super vertical align) mode
Wide viewing angle (±178°)
High speed response
UHD resolution (3840 x 2160, 16:9)
Low power consumption
DE (Data enable) mode
Under 8hrs a day available for Black Fog Mura
30,000hrs available for Black Fog Mura
The interface of USI-T (TCON~S-PCB)
