Quick Details
-
Material:
-
Aluminum alloy speaker truss
-
Size:
-
optional
-
Quality guarantee:
-
2years
-
Certification:
-
TUV
-
Color:
-
silver or OEM
-
Packing:
-
air bubble film or carton
-
Application:
-
lighting truss stage truss speaker truss
-
Lead time:
-
10days in usual
-
Advantage:
-
competitive price
-
Service:
-
24hours
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sgaier
-
Model Number:
-
Sgaier01
-
Material:
-
Aluminum alloy speaker truss
-
Size:
-
optional
-
Quality guarantee:
-
2years
-
Certification:
-
TUV
-
Color:
-
silver or OEM
-
Packing:
-
air bubble film or carton
-
Application:
-
lighting truss stage truss speaker truss
-
Lead time:
-
10days in usual
-
Advantage:
-
competitive price
-
Service:
-
24hours

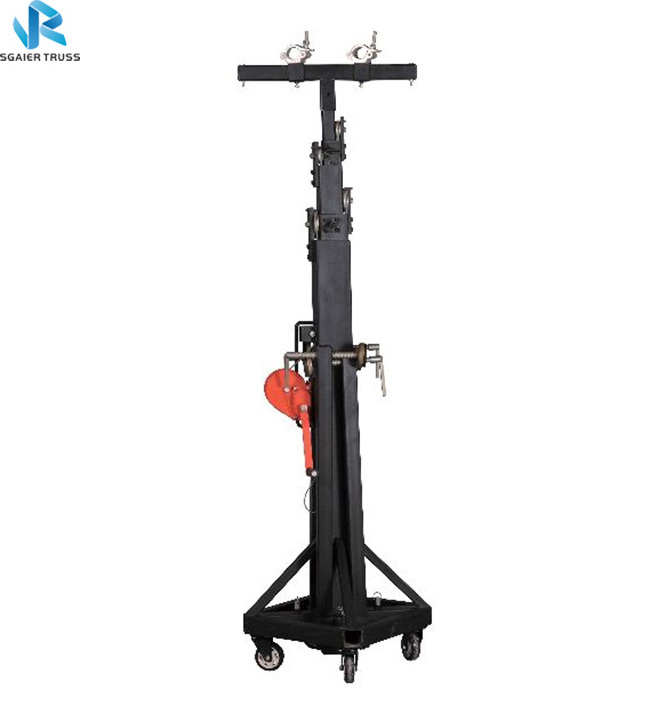

Heavy Duty truss lifting tower Truss Tower line Array Truss Tower
Truss Speaker truss system audio truss sound truss
Buy from us
Included:
-Full Factory Warranty
-More connection Accessories
-24hours Live Tech Support by Phone or E-Mail
1.Material:Aluminum alloy
2.Feature:Professional welders and engineers to ensure high quality truss.
3.Application:to hang lighting,speaker and so on for indoor or outdoor events,concerts,exhibitions.
We usually make the following size:
6m speaker truss,made of 290*290mm square truss
8m speaker truss,made of 400*400mm square truss
10m speaker truss,made of 400*400mm square truss
12m speaker truss,made of 400*400mm square truss
| Height | loading | wind load | weight |
| 6M | 600KG | 20M/S | 220KG |
|
8M |
800KG |
20M/S |
270KG |
|
10M |
1000KG |
20M/S |
420KG |
|
12M |
1400KG |
20M/S |
530KG |
|
16M |
2300KG |
20M/S |
693KG |
| Truss Specification | ||||
| Product | Connection | Matierial | Size | Length |
| Square Truss | Spigot | Aluminum alloy | 220*220mm,240*240mm,290*290mm,350*350mm, 390*390mm,400*500mm,400*600mm,470*470mm, 500*600mm,520*520mm,520*760mm, 600*760mm, 600*900mm | 0.5-4m |
| Bolt | 100x100mm, 200x200mm, 250x250mm, 300x300mm, 350x350mm, 400x400mm, 450x450mm, 400x600mm, 500x500mm, 500x600mm,520x760mm, 600x760mm | |||
| Triangle Truss | Spigot | 250*250mm,290*290mm,390*390mm | ||
| Bolt | 300x300mm | |||
| Ladder Truss | Spigot | 220*220mm, 290*290mm, 390*390mm | ||
| Bolt | 300x300mm,400*400mm | |||
| Arch truss | Spigot | OD:2-10m | ||
| Bolt | OD:2-10m | |||
Product Picture
Packing:Air bubble film or carton
Shipping:We can arrange shipping truss and stage by sea,air or express with competitive cost.
